744043101 by Wurth Elektronik is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.
Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.
Price & Stock for 744043101
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
08P2485
|
Newark | Inductor, Shielded, 100Uh, 290Ma, Smd, Inductance:100Μh, Rms Current (Irms):510Ma, Inductor Construction:Shielded, Saturation Current (Isat):290Ma, Product Range:We-Tpc Series, Inductor Case/Package:-, Dc Resistance Max:600Mohm Rohs Compliant: Yes |Wurth Elektronik 744043101 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 188 |
|
$1.0600 / $1.7100 | Buy Now |
|
DISTI #
732-1111-1-ND
|
DigiKey | FIXED IND 100UH 510MA 600MOHM SM Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
1130 In Stock |
|
$0.7191 / $1.5300 | Buy Now |
|
DISTI #
710-744043101
|
Mouser Electronics | Power Inductors - SMD WE-TPC 4828 100uH .51A .52Ohm RoHS: Compliant | 4229 |
|
$0.7990 / $1.5200 | Buy Now |
|
DISTI #
87187084
|
Verical | Power Choke Shielded Wirewound 100uH 30% 100KHz Ferrite 0.51A 0.6Ohm DCR T/R Min Qty: 60 Package Multiple: 1 Date Code: 2124 | Americas - 94 |
|
$1.5200 | Buy Now |
US Tariff Estimator: 744043101 by Wurth Elektronik
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for 744043101
744043101 CAD Models
-
Part Symbol
-
Footprint
-

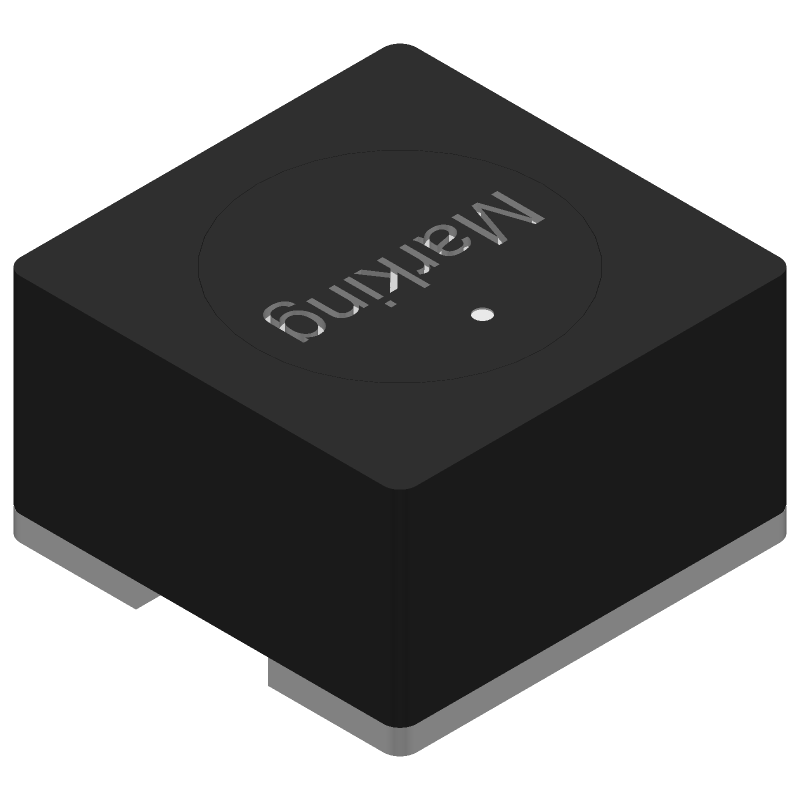

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
744043101 Part Data Attributes
|
|
744043101
Wurth Elektronik
Buy Now
Datasheet
|
Compare Parts:
744043101
Wurth Elektronik
General Purpose Inductor, 100uH, 30%, 1 Element, Ferrite-Core, SMD, 1919, ROHS AND REACH COMPLIANT
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Rohs And Reach Compliant | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8504.50.80.00 | |
| Case/Size Code | 1919 | |
| Construction | Rectangular | |
| Core Material | Manganese-Zinc Ferrite | |
| DC Resistance | 0.6 Ω | |
| Inductance-Nom (L) | 100 µH | |
| Inductor Application | Power Inductor | |
| Inductor Type | General Purpose Inductor | |
| JESD-609 Code | e3 | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Height | 2.8 Mm | |
| Package Length | 4.8 Mm | |
| Package Style | Smt | |
| Package Width | 4.8 Mm | |
| Packing Method | Tr, Plastic | |
| Rated Current-Max | 0.51 A | |
| Self Resonance Frequency | 11 Mhz | |
| Shape/Size Description | Rectangular Package | |
| Shielded | Yes | |
| Surface Mount | Yes | |
| Terminal Finish | Tin (Sn) - With Nickel (Ni) Barrier | |
| Terminal Placement | Dual Ended | |
| Terminal Shape | One Surface | |
| Test Frequency | 0.1 Mhz | |
| Tolerance | 30% |
