744771115 Information
744771115 by Wurth Elektronik is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.
Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.
Price & Stock for 744771115
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
08P2786
|
Newark | Inductor, Shielded, 15Uh, 4.55A, Smd, Inductance:15Μh, Rms Current (Irms):3.75A, Inductor Construction:Shielded, Saturation Current (Isat):4.55A, Product Range:We-Pd Series, Inductor Case/Package:-, Dc Resistance Max:30Mohm Rohs Compliant: Yes |Wurth Elektronik 744771115 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1081 |
|
$1.7800 / $2.6600 | Buy Now |
|
DISTI #
732-4115-1-ND
|
DigiKey | FIXED IND 15UH 3.75A 30 MOHM SMD Min Qty: 1 Lead time: 20 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
2155 In Stock |
|
$1.0647 / $2.2600 | Buy Now |
|
DISTI #
710-744771115
|
Mouser Electronics | Power Inductors - SMD WE-PD 15uH 3.75A DCR=30mOhms AEC-Q200 RoHS: Compliant | 1241 |
|
$1.1800 / $2.2600 | Buy Now |
|
DISTI #
87187879
|
Verical | Power Choke Shielded Wirewound 15uH 20% 1KHz Ferrite 3.75A 0.03Ohm DCR Automotive T/R Min Qty: 35 Package Multiple: 1 Date Code: 2139 | Americas - 101 |
|
$1.6100 / $2.0300 | Buy Now |
|
|
Bristol Electronics | 1064 |
|
RFQ | ||
|
|
Bristol Electronics | 190 |
|
RFQ | ||
|
|
Quest Components | 152 |
|
$2.9415 / $4.7700 | Buy Now | |
|
|
Chip Stock | PowerChokeShieldedWirewound15uH20%1KHzFerrite3.75A0.03OhmDCRAutomotiveT/R | 4500 |
|
RFQ | |
|
|
Chip-Germany GmbH | 56 |
|
RFQ | ||
|
|
Win Source Electronics | FIXED IND 15UH 3.75A 30 MOHM SMD / POWER-CHOKE WE-PD | 3000 |
|
$0.9091 / $1.3636 | Buy Now |
US Tariff Estimator: 744771115 by Wurth Elektronik
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for 744771115
744771115 CAD Models
-
Part Symbol
-

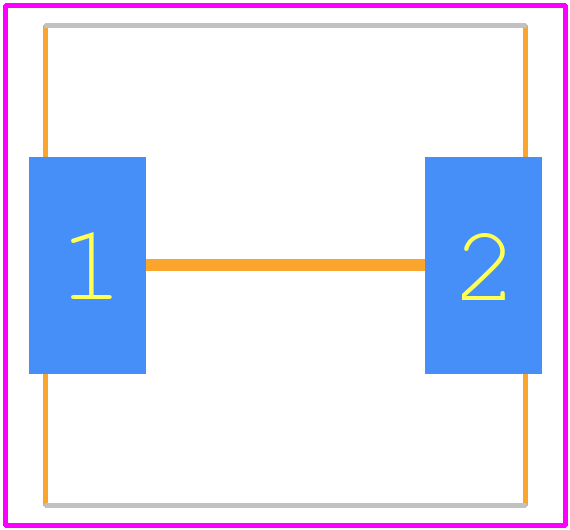

Footprint
-

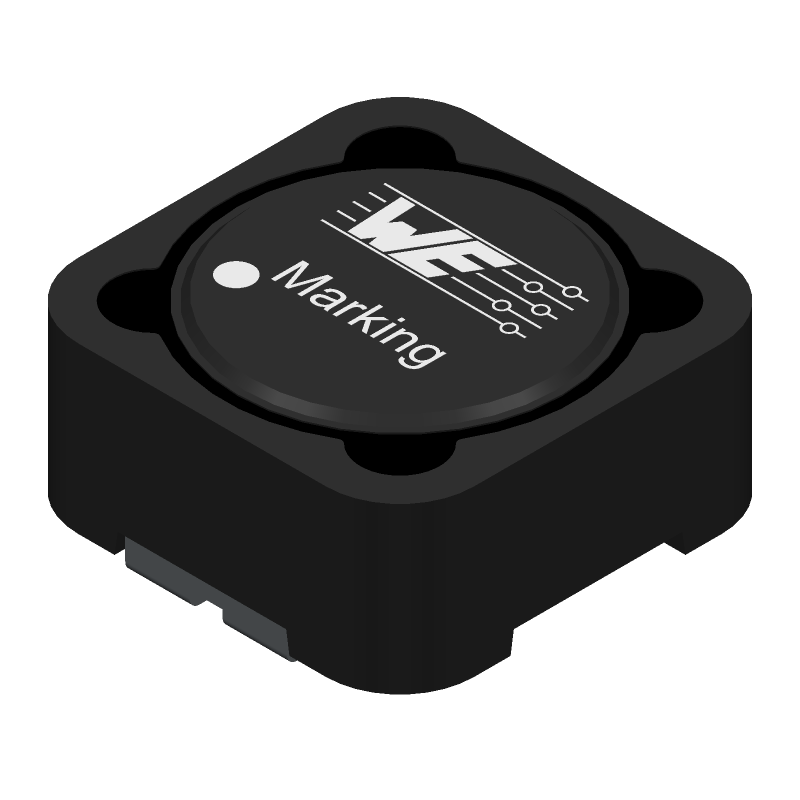

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
744771115 Part Data Attributes
|
|
744771115
Wurth Elektronik
Buy Now
Datasheet
|
Compare Parts:
744771115
Wurth Elektronik
General Purpose Inductor, 15uH, 20%, 1 Element, Ferrite-Core, SMD, 4747, ROHS AND REACH COMPLIANT
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Chip | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8504.50.80.00 | |
| Case/Size Code | 4747 | |
| Construction | Rectangular | |
| Core Material | Ferrite | |
| DC Resistance | 0.028 Ω | |
| Inductance-Nom (L) | 15 µH | |
| Inductor Application | Power Inductor | |
| Inductor Type | General Purpose Inductor | |
| JESD-609 Code | e1 | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Height | 6 Mm | |
| Package Length | 12 Mm | |
| Package Style | Smt | |
| Package Width | 12 Mm | |
| Packing Method | Tr, Embossed Plastic, 13 Inch | |
| Rated Current-Max | 4.2 A | |
| Reference Standard | Aec-Q200 | |
| Self Resonance Frequency | 16.6 Mhz | |
| Shape/Size Description | Rectangular Package | |
| Shielded | Yes | |
| Surface Mount | Yes | |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) | |
| Terminal Placement | Dual Ended | |
| Terminal Shape | One Surface | |
| Test Frequency | 0.1 Mhz | |
| Tolerance | 20% |
