7447786122 Information
7447786122 by Wurth Elektronik is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.
Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.
Price & Stock for 7447786122
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
46T8812
|
Newark | Inductor, Shielded, 22Uh, 1.3A, Smd, Inductance:22Μh, Rms Current (Irms):2A, Inductor Construction:Shielded, Saturation Current (Isat):1.3A, Product Range:We-Pd Series, Inductor Case/Package:-, Dc Resistance Max:0.115Ohm Rohs Compliant: Yes |Wurth Elektronik 7447786122 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 849 |
|
$2.3900 / $2.8800 | Buy Now |
|
DISTI #
70996855
|
RS | POWER INDUCTOR SMD WE-PD XSH 22.0UH 1.3A Min Qty: 1 Package Multiple: 1 Lead time: 4 Weeks, 0 Days Container: Bulk | 0 |
|
$1.0540 | RFQ |
|
|
Bristol Electronics | 250 |
|
RFQ | ||
|
|
Chip-Germany GmbH | 20 |
|
RFQ |
US Tariff Estimator: 7447786122 by Wurth Elektronik
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for 7447786122
7447786122 CAD Models
-
Part Symbol
-

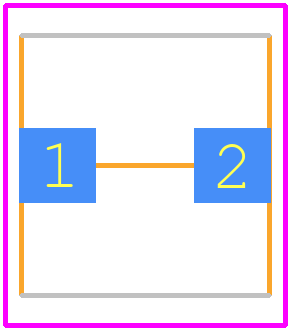

Footprint
-

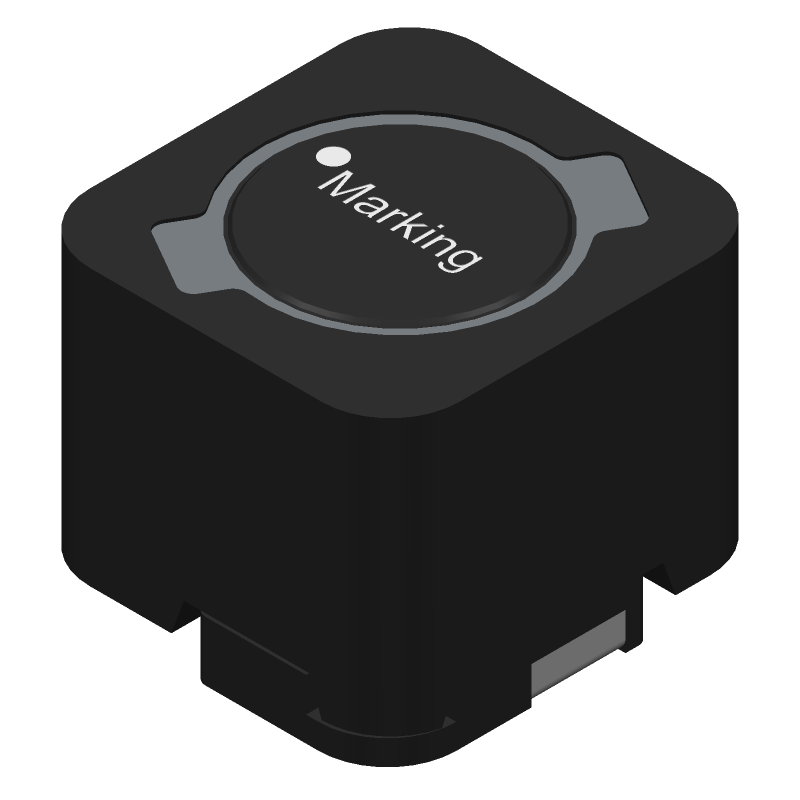

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
7447786122 Part Data Attributes
|
|
7447786122
Wurth Elektronik
Buy Now
Datasheet
|
Compare Parts:
7447786122
Wurth Elektronik
General Purpose Inductor,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | WUERTH ELEKTRONIK GMBH & CO KG | |
| Package Description | CHIP | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8504.50.80.00 | |
| Samacsys Manufacturer | Würth Elektronik | |
| Case/Size Code | 2423 | |
| Construction | Rectangular | |
| Core Material | MANGANESE-ZINC | |
| DC Resistance | 0.115 Ω | |
| Inductance-Nom (L) | 22 µH | |
| Inductor Application | POWER INDUCTOR | |
| Inductor Type | GENERAL PURPOSE INDUCTOR | |
| JESD-609 Code | e1 | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Height | 5.1 mm | |
| Package Length | 6.2 mm | |
| Package Style | SMT | |
| Package Width | 5.9 mm | |
| Packing Method | TR, Embossed Plastic, 13 Inch | |
| Rated Current-Max | 2 A | |
| Reference Standard | AEC-Q200 | |
| Self Resonance Frequency | 15 MHz | |
| Shape/Size Description | RECTANGULAR PACKAGE | |
| Shielded | YES | |
| Surface Mount | YES | |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) | |
| Terminal Placement | DUAL ENDED | |
| Terminal Shape | WRAPAROUND | |
| Test Frequency | 0.1 MHz | |
| Tolerance | 25% |
