74AC240SC Information
74AC240SC by onsemi is a Bus Driver/Transceiver.
Bus Driver/Transceivers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for 74AC240SC
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
78K6215
|
Newark | Inverting Buffer, Soic-20, Logic Device Type:Buffer, Inverting, Logic Family/Base Number:74Ac240, Ic Case/Package:Soic, No. Of Pins:20Pins, Supply Voltage Min:2V, Supply Voltage Max:6V, Logic Ic Family:74Ac, Qualification:- Rohs Compliant: Yes |Onsemi 74AC240SC RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 225 |
|
$0.2050 | Buy Now |
|
DISTI #
V79:2366_26240619
|
Arrow Electronics | Buffer/Line Driver 8-CH Inverting 3-ST 20-Pin SOIC W Tube COO: Taiwan RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1711 | Americas - 845 |
|
$0.2224 | Buy Now |
|
DISTI #
P40:2555_16812411
|
Arrow Electronics | Buffer/Line Driver 8-CH Inverting 3-ST 20-Pin SOIC W Tube COO: Philippines RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1927 | Europe - 8 |
|
$0.1299 | Buy Now |
|
DISTI #
87416878
|
Verical | Buffer/Line Driver 8-CH Inverting 3-ST 20-Pin SOIC W Tube RoHS: Compliant Min Qty: 469 Package Multiple: 1 Date Code: 1601 | Americas - 17280 |
|
$0.4961 / $0.8003 | Buy Now |
|
DISTI #
85956496
|
Verical | Buffer/Line Driver 8-CH Inverting 3-ST 20-Pin SOIC W Tube RoHS: Compliant Min Qty: 469 Package Multiple: 1 Date Code: 1701 | Americas - 4320 |
|
$0.4961 / $0.8003 | Buy Now |
|
DISTI #
59190266
|
Verical | Buffer/Line Driver 8-CH Inverting 3-ST 20-Pin SOIC W Tube RoHS: Compliant Min Qty: 26 Package Multiple: 1 Date Code: 1711 | Americas - 845 |
|
$0.2224 | Buy Now |
|
|
Rochester Electronics | Bus Driver, AC Series, 2-Func, 4-Bit, Inverted Output, CMOS, PDSO20 RoHS: Compliant Status: End of Life / Last Time Buy Min Qty: 1 | 2187 |
|
$0.3969 / $0.6402 | Buy Now |
|
DISTI #
V79:2366_26240619
|
Arrow Electronics | Buffer/Line Driver 8-CH Inverting 3-ST 20-Pin SOIC W Tube COO: Taiwan RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1711 | Americas - 845 |
|
$0.2224 | Buy Now |
|
DISTI #
P40:2555_16812411
|
Arrow Electronics | Buffer/Line Driver 8-CH Inverting 3-ST 20-Pin SOIC W Tube COO: Philippines RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1927 | Europe - 8 |
|
$0.1299 | Buy Now |
|
DISTI #
87416878
|
Verical | Buffer/Line Driver 8-CH Inverting 3-ST 20-Pin SOIC W Tube RoHS: Compliant Min Qty: 469 Package Multiple: 1 Date Code: 1601 | Americas - 17280 |
|
$0.4961 / $0.8003 | Buy Now |
US Tariff Estimator: 74AC240SC by onsemi
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for 74AC240SC
74AC240SC CAD Models
-

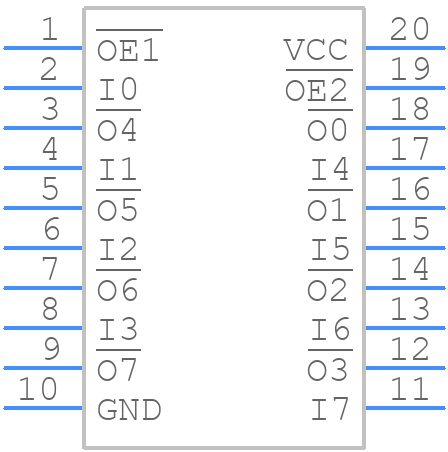

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
74AC240SC Part Data Attributes
|
|
74AC240SC
onsemi
Buy Now
Datasheet
|
Compare Parts:
74AC240SC
onsemi
Octal Buffer/Line Driver with 3-STATE Outputs, SOIC-20W, 38-TUBE
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Part Package Code | SOIC-20W | |
| Package Description | Sop, Sop20,.4 | |
| Manufacturer Package Code | 751D-05 | |
| Reach Compliance Code | Compliant | |
| HTS Code | 8542.39.00.01 | |
| Control Type | Enable Low | |
| Family | Ac | |
| JESD-30 Code | R-PDSO-G20 | |
| JESD-609 Code | e3 | |
| Length | 12.8015 Mm | |
| Load Capacitance (CL) | 50 Pf | |
| Logic IC Type | Bus Driver | |
| Max I(ol) | 0.012 A | |
| Moisture Sensitivity Level | 3 | |
| Number of Bits | 4 | |
| Number of Functions | 2 | |
| Number of Ports | 2 | |
| Number of Terminals | 20 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Characteristics | 3-State | |
| Output Polarity | Inverted | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Equivalence Code | SOP20,.4 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 260 | |
| Prop. Delay@Nom-Sup | 9 Ns | |
| Propagation Delay (tpd) | 9 Ns | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 2.642 Mm | |
| Supply Voltage-Max (Vsup) | 6 V | |
| Supply Voltage-Min (Vsup) | 2 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Industrial | |
| Terminal Finish | Matte Tin | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 7.493 Mm |
Alternate Parts for 74AC240SC
This table gives cross-reference parts and alternative options found for 74AC240SC. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 74AC240SC, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 74AC240SC | National Semiconductor Corporation | Check for Price | Bus Driver, AC Series, 2-Func, 4-Bit, Inverted Output, CMOS, PDSO20 | 74AC240SC vs 74AC240SC |
| SN74AC240DWE4 | Texas Instruments | Check for Price | AC SERIES, DUAL 4-BIT DRIVER, INVERTED OUTPUT, PDSO20, GREEN, PLASTIC, SOIC-20 | 74AC240SC vs SN74AC240DWE4 |
| 74AC240M | STMicroelectronics | Check for Price | AC SERIES, DUAL 4-BIT DRIVER, INVERTED OUTPUT, PDSO20, SOP-20 | 74AC240SC vs 74AC240M |
| MC74AC240DW | onsemi | Check for Price | AC SERIES, DUAL 4-BIT DRIVER, INVERTED OUTPUT, PDSO20, SOIC-20 | 74AC240SC vs MC74AC240DW |
| 74AC240SCT | Fairchild Semiconductor Corporation | Check for Price | Bus Driver, AC Series, 2-Func, 4-Bit, Inverted Output, CMOS, PDSO20, SOIC-20 | 74AC240SC vs 74AC240SCT |
| 74AC240SCX_NL | Fairchild Semiconductor Corporation | Check for Price | Bus Driver, AC Series, 2-Func, 4-Bit, Inverted Output, CMOS, PDSO20, 0.300 INCH, MS-013, SOIC-20 | 74AC240SC vs 74AC240SCX_NL |
| CD74AC240ME4 | Rochester Electronics LLC | Check for Price | Bus Driver, AC Series, 2-Func, 4-Bit, Inverted Output, CMOS, PDSO20, GREEN, PLASTIC, SOIC-20 | 74AC240SC vs CD74AC240ME4 |
| CD74AC240M | Rochester Electronics LLC | Check for Price | Bus Driver, AC Series, 2-Func, 4-Bit, Inverted Output, CMOS, PDSO20 | 74AC240SC vs CD74AC240M |
| 74AC240SC | Fairchild Semiconductor Corporation | Check for Price | Bus Driver, AC Series, 2-Func, 4-Bit, Inverted Output, CMOS, PDSO20, 0.300 INCH, MS-013, SOIC-20 | 74AC240SC vs 74AC240SC |
74AC240SC Frequently Asked Questions (FAQ)
-
The maximum operating frequency of the 74AC240SC is typically around 100 MHz, but it can vary depending on the specific application and operating conditions.
-
The output enable (OE) pin is active-low, meaning that the outputs are enabled when OE is low and disabled when OE is high. You should connect OE to a logic low signal to enable the outputs, and to a logic high signal to disable them.
-
The recommended power-on sequence for the 74AC240SC is to apply power to the VCC pin before applying any input signals. This helps to prevent latch-up and ensures proper device operation.
-
Yes, the 74AC240SC is compatible with 5V systems, but you should ensure that the input signals are within the recommended voltage range (VCC - 0.5V to VCC + 0.5V) to prevent damage to the device.
-
To prevent bus contention, you should ensure that only one device is driving the bus at a time. You can use the output enable (OE) pin to disable the outputs of the 74AC240SC when it's not supposed to be driving the bus.
