Part Details for 74AHC1G125SE-7 by Diodes Incorporated
Results Overview of 74AHC1G125SE-7 by Diodes Incorporated
- Distributor Offerings: (15 listings)
- Number of FFF Equivalents: (2 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Industrial Automation
Aerospace and Defense
Healthcare
Telecommunications
Automotive
74AHC1G125SE-7 Information
74AHC1G125SE-7 by Diodes Incorporated is a Bus Driver/Transceiver.
Bus Driver/Transceivers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for 74AHC1G125SE-7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
47T3881
|
Newark | Logic, Buff/Bus, Single, 3 St, sot353, Logic Family/Base Number:74Ahc1G125, Logic Device Type:Buffer, Non Inverting, Logic Case Style:Sot-353, No. Of Pins:5Pins, Supply Voltage Min:2V, Supply Voltage Max:5.5V, Logic Ic Family:74Ahc, rohs Compliant: Yes |Diodes Inc. 74AHC1G125SE-7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 300 |
|
$0.0100 | Buy Now |
|
DISTI #
74AHC1G125SE-7DICT-ND
|
DigiKey | IC BUFF NON-INVERT 5.5V SOT-353 Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
8170 In Stock |
|
$0.0421 / $0.1300 | Buy Now |
|
DISTI #
74AHC1G125SE-7
|
Avnet Americas | Buffer, 74AHC1G125, 2 V to 5.5 V, SOT-353-5 - Tape and Reel (Alt: 74AHC1G125SE-7) COO: China RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 12 Weeks, 0 Days Container: Tape & Reel | 0 |
|
$0.0300 / $0.0316 | Buy Now |
|
DISTI #
47T3881
|
Avnet Americas | Buffer, 74AHC1G125, 2 V to 5.5 V, SOT-353-5 (Alt: 47T3881) COO: China RoHS: Compliant Min Qty: 1 Package Multiple: 1 | 0 |
|
$0.0490 / $0.1100 | Buy Now |
|
DISTI #
621-74AHC1G125SE-7
|
Mouser Electronics | Buffers & Line Drivers SINGLE NON INVERTING DRIVER 3-STATE RoHS: Compliant | 6437 |
|
$0.0460 / $0.1300 | Buy Now |
|
DISTI #
V36:1790_06686068
|
Arrow Electronics | Buffer/Line Driver 1-CH Non-Inverting 3-ST 5-Pin SOT-353 T/R COO: China RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 12 Weeks Date Code: 2445 | Americas - 60000 |
|
$0.0381 | Buy Now |
|
DISTI #
70550317
|
RS | BUFFER GATE WITH 3-STATE OUTPUT SOT-353 Min Qty: 200 Package Multiple: 1 Container: Bulk | 0 |
|
$0.0750 / $0.0880 | RFQ |
|
|
Future Electronics | 74AHC Series 5.5 V Surface Mount Single Buffer Gate w/ 3-ST Output - SOT-353 RoHS: Compliant pbFree: Yes Min Qty: 30000 Package Multiple: 3000 Lead time: 12 Weeks Container: Reel | 0Reel |
|
$0.0350 / $0.0380 | Buy Now |
|
|
Bristol Electronics | Min Qty: 31 | 9000 |
|
$0.0330 / $0.1650 | Buy Now |
|
|
Bristol Electronics | 2568 |
|
RFQ |
US Tariff Estimator: 74AHC1G125SE-7 by Diodes Incorporated
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for 74AHC1G125SE-7
74AHC1G125SE-7 CAD Models
-

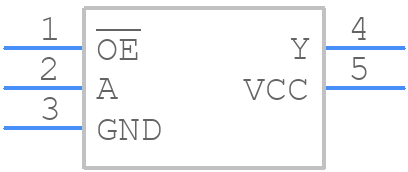

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
74AHC1G125SE-7 Part Data Attributes
|
|
74AHC1G125SE-7
Diodes Incorporated
Buy Now
Datasheet
|
Compare Parts:
74AHC1G125SE-7
Diodes Incorporated
Bus Driver, AHC/VHC/H/U/V Series, 1-Func, 1-Bit, True Output, CMOS, PDSO5, GREEN, SOT-353, 5 PIN
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SOT-353 | |
| Package Description | Tssop, Tssop5/6,.08 | |
| Pin Count | 5 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 12 Weeks | |
| Control Type | Enable Low | |
| Family | Ahc/Vhc/H/U/V | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e3 | |
| Length | 2 Mm | |
| Load Capacitance (CL) | 50 Pf | |
| Logic IC Type | Bus Driver | |
| Max I(ol) | 0.008 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 1 | |
| Number of Functions | 1 | |
| Number of Ports | 2 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Characteristics | 3-State | |
| Output Polarity | True | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP5/6,.08 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Packing Method | Tr | |
| Peak Reflow Temperature (Cel) | 260 | |
| Prop. Delay@Nom-Sup | 9.5 Ns | |
| Propagation Delay (tpd) | 14.5 Ns | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.1 Mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 2 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Automotive | |
| Terminal Finish | Matte Tin | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.65 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.25 Mm |
Alternate Parts for 74AHC1G125SE-7
This table gives cross-reference parts and alternative options found for 74AHC1G125SE-7. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 74AHC1G125SE-7, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| HD74LV1GT125A | Hitachi Ltd | Check for Price | Bus Driver, LV/LV-A/LVX/H Series, 1-Func, 1-Bit, True Output, CMOS, PDSO5, CMPAK-5 | 74AHC1G125SE-7 vs HD74LV1GT125A |
| HD74LV1GT125ACME-E | Renesas Electronics Corporation | Check for Price | LV/LV-A/LVX/H SERIES, 1-BIT DRIVER, TRUE OUTPUT, PDSO5, SC-88A, CMPAK-5 | 74AHC1G125SE-7 vs HD74LV1GT125ACME-E |
74AHC1G125SE-7 Frequently Asked Questions (FAQ)
-
The recommended operating voltage range for the 74AHC1G125SE-7 is 2.0V to 5.5V.
-
Yes, the 74AHC1G125SE-7 is compatible with both 3.3V and 5V systems, making it a versatile component for various applications.
-
The maximum propagation delay for the 74AHC1G125SE-7 is 10ns, ensuring fast signal transmission.
-
Yes, the 74AHC1G125SE-7 is suitable for high-frequency applications, with a maximum toggle frequency of 150MHz.
-
The power consumption of the 74AHC1G125SE-7 is relatively low, with a typical quiescent current of 10μA.
