74AHCT1G125GV,125 Information
74AHCT1G125GV,125 by Nexperia is a Bus Driver/Transceiver.
Bus Driver/Transceivers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for 74AHCT1G125GV,125
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
74AH2147
|
Newark | Buffer/Line Driver, Sc-74A-5, Logic Device Type:Buffer/Line Driver, Non Inverting, Logic Family/Base Number:74Ahct1G125, Ic Case/Package:Sc-74A, No. Of Pins:5Pins, Supply Voltage Min:4.5V, Supply Voltage Max:5.5V Rohs Compliant: Yes |Nexperia 74AHCT1G125GV,125 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 2525 |
|
$0.0830 / $0.2210 | Buy Now |
|
DISTI #
1727-6024-1-ND
|
DigiKey | IC BUFFER NON-INVERT 5.5V SC-74A Min Qty: 1 Lead time: 8 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.0459 / $0.1500 | Buy Now |
|
DISTI #
74AHCT1G125GV,125
|
Avnet Americas | Buffer / Line Driver, 74AHCT1G125, 1 Element, 4.5 V to 5.5 V, 5 Pins, TSOP - Tape and Reel (Alt: 74AHCT1G125GV,125) COO: Malaysia RoHS: Compliant Min Qty: 21000 Package Multiple: 3000 Lead time: 8 Weeks, 0 Days Container: Tape & Reel | 0 |
|
$0.0532 / $0.0570 | Buy Now |
|
DISTI #
771-AHCT1G125GV125
|
Mouser Electronics | Buffers & Line Drivers 74AHCT1G125GV/SOT753/SO5 RoHS: Compliant | 0 |
|
$0.0630 / $0.1600 | Order Now |
|
DISTI #
74AHCT1G125GV.125
|
TME | IC: digital, buffer,non-inverting,line driver, Ch: 1, CMOS,TTL Min Qty: 1 | 0 |
|
$0.0413 / $0.1200 | RFQ |
|
DISTI #
74AHCT1G125GV,125
|
Avnet Asia | Buffer / Line Driver, 74AHCT1G125, 1 Element, 4.5 V to 5.5 V, 5 Pins, TSOP (Alt: 74AHCT1G125GV,125) RoHS: Compliant Min Qty: 21000 Package Multiple: 3000 Lead time: 8 Weeks, 0 Days | 0 |
|
RFQ | |
|
|
Chip Stock | 18mA4.5V~5.5V8mA1SOT-23-5Buffer/Driver/TransceiverROHS | 97000 |
|
RFQ | |
|
|
Vyrian | Other Function Semiconductors | 1989 |
|
RFQ |
US Tariff Estimator: 74AHCT1G125GV,125 by Nexperia
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for 74AHCT1G125GV,125
74AHCT1G125GV,125 CAD Models
-

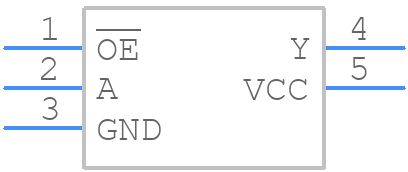

Part Symbol
-
