74HC138D-Q100,118 by:
Nexperia

74HC138-Q100; 74HCT138-Q100 - 3-to-8 line decoder/demultiplexer; inverting@en-us SOP 16-Pin

Part Details for 74HC138D-Q100,118 by Nexperia

Results Overview of 74HC138D-Q100,118 by Nexperia

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Financial Technology (Fintech) Computing and Data Storage Telecommunications Communication and Networking

74HC138D-Q100,118 Information

74HC138D-Q100,118 by Nexperia is a Decoder/Driver.
Decoder/Drivers are under the broader part category of Logic Components.

Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
74VHC123AFT Toshiba Electronic Devices & Storage Corporation CMOS Logic IC, Monostable Multivibrator, TSSOP16B, -40 to 125 degC, AEC-Q100
74VHC245FT Toshiba Electronic Devices & Storage Corporation CMOS Logic IC, Transceiver, TSSOP20B, -40 to 125 degC, AEC-Q100
74VHCV14FT Toshiba Electronic Devices & Storage Corporation CMOS Logic IC, Inverter, TSSOP14B, -40 to 125 degC, AEC-Q100

Price & Stock for 74HC138D-Q100,118

Part # Distributor Description Stock Price Buy
DISTI # 85X2874
Newark Decoder/Demux, 8 O/P, -40 To 125Deg C, Logic Family/Base Number:74Hc138, Logic Type:3-To-8 Line Decoder/Demultiplexer, No. Of Outputs:8Outputs, Ic Case/Package:Soic, No. Of Pins:16Pins, Supply Voltage Min:2V, Product Range:- Rohs Compliant: Yes |Nexperia 74HC138D-Q100,118 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 6682
  • 1 $0.5950
  • 10 $0.3980
  • 25 $0.3470
  • 50 $0.3260
  • 100 $0.3060
  • 250 $0.2870
  • 500 $0.2740
  • 1,000 $0.2700
$0.2700 / $0.5950 Buy Now
DISTI # 1727-1028-1-ND
DigiKey IC DECODER/DEMUX 1 X 3:8 16-SO Min Qty: 1 Lead time: 31 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 2110
In Stock
  • 1 $0.4000
  • 10 $0.2750
  • 50 $0.2258
  • 100 $0.2106
  • 2,500 $0.1409
  • 5,000 $0.1365
$0.1365 / $0.4000 Buy Now
DISTI # 74HC138D-Q100,118
Avnet Americas 3-to-8 Line Decoder / Demultiplexer, 74HC, 8 Outputs, 2 V to 6 V, 16 Pins, SOIC - Tape and Reel (Alt: 74HC138D-Q100,118) COO: China RoHS: Compliant Min Qty: 7500 Package Multiple: 2500 Lead time: 31 Weeks, 0 Days Container: Tape & Reel 0
  • 7,500 $0.1678
  • 15,000 $0.1608
  • 30,000 $0.1548
  • 60,000 $0.1507
  • 120,000 $0.1447
$0.1447 / $0.1678 Buy Now
DISTI # 771-74HC138D-Q100
Mouser Electronics Encoders, Decoders, Multiplexers & Demultiplexers 74HC138D-Q100/SOT109/SO16 RoHS: Compliant 5033
  • 1 $0.4300
  • 10 $0.2990
  • 50 $0.2460
  • 100 $0.2290
  • 1,000 $0.2270
  • 2,500 $0.1790
  • 5,000 $0.1640
$0.1640 / $0.4300 Buy Now
Chip Stock 3-to-8LineDecoder/Demultiplexer,74HC,8Outputs,2Vto6V,16Pins,SOIC 46000
RFQ
Vyrian Other Function Semiconductors 3569
RFQ

US Tariff Estimator: 74HC138D-Q100,118 by Nexperia

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

74HC138D-Q100,118
Nexperia
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for 74HC138D-Q100,118

74HC138D-Q100,118 CAD Models

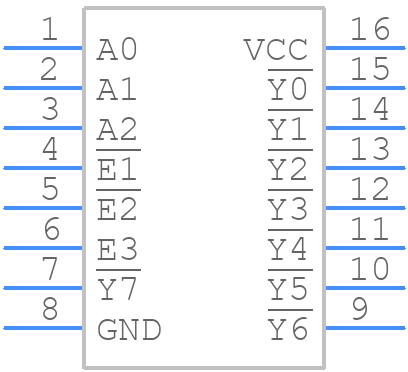

  • Part Symbol

    schematic symbol

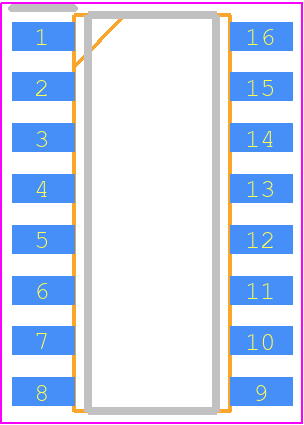

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

74HC138D-Q100,118 Part Data Attributes

Parametric Data
74HC138D-Q100,118 Nexperia
Buy Now Datasheet
Compare Parts:
74HC138D-Q100,118 Nexperia 74HC138-Q100; 74HCT138-Q100 - 3-to-8 line decoder/demultiplexer; inverting@en-us SOP 16-Pin
Rohs Code Yes
Part Life Cycle Code Active
Part Package Code SOP
Package Description Sop, Sop16,.25
Pin Count 16
Manufacturer Package Code SOT109-1
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Factory Lead Time 10 Weeks
Family Hc/Uh
Input Conditioning Standard
JESD-30 Code R-PDSO-G16
JESD-609 Code e4
Length 9.9 Mm
Load Capacitance (CL) 15 Pf
Logic IC Type 3-Line To 8-Line Decoder
Max I(ol) 0.0052 A
Moisture Sensitivity Level 1
Number of Functions 1
Number of Terminals 16
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Output Polarity Inverted
Package Body Material Plastic/Epoxy
Package Code SOP
Package Equivalence Code SOP16,.25
Package Shape Rectangular
Package Style Small Outline
Packing Method Tr, 13 Inch
Peak Reflow Temperature (Cel) 260
Power Supply Current-Max (ICC) 0.16 Ma
Prop. Delay@Nom-Sup 45 Ns
Propagation Delay (tpd) 225 Ns
Screening Level Aec-Q100
Seated Height-Max 1.75 Mm
Supply Voltage-Max (Vsup) 6 V
Supply Voltage-Min (Vsup) 2 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount Yes
Technology Cmos
Temperature Grade Automotive
Terminal Finish Nickel Palladium Gold Silver
Terminal Form Gull Wing
Terminal Pitch 1.27 Mm
Terminal Position Dual
Time@Peak Reflow Temperature-Max (s) 30
Width 3.9 Mm

Alternate Parts for 74HC138D-Q100,118

This table gives cross-reference parts and alternative options found for 74HC138D-Q100,118. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 74HC138D-Q100,118, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
74HC138D-Q100,118 NXP Semiconductors Check for Price 74HC(T)138-Q100 - 3-to-8 line decoder/demultiplexer; inverting SOP 16-Pin 74HC138D-Q100,118 vs 74HC138D-Q100,118
Part Number Manufacturer Composite Price Description Compare
SN74LS156D Motorola Mobility LLC Check for Price LS SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, PDSO16, SOIC-16 74HC138D-Q100,118 vs SN74LS156D
MC74ACT138N onsemi Check for Price ACT SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, PDIP16, PLASTIC, DIP-16 74HC138D-Q100,118 vs MC74ACT138N
DM74ALS138M Fairchild Semiconductor Corporation Check for Price Decoder/Driver, ALS Series, Inverted Output, TTL, PDSO16, 0.150 INCH, MS-012, SOIC-16 74HC138D-Q100,118 vs DM74ALS138M
74F139SJ Rochester Electronics LLC Check for Price Decoder/Driver, F/FAST Series, Inverted Output, TTL, PDSO16, 5.30 MM, EIAJ TYPE2, SOP-16 74HC138D-Q100,118 vs 74F139SJ
SN54HCT139J-00 Texas Instruments Check for Price HCT SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, CDIP16 74HC138D-Q100,118 vs SN54HCT139J-00
CD74HC154MG4 Texas Instruments Check for Price High Speed CMOS Logic 4-to-16 Line Decoder/Demultiplexer 24-SOIC -55 to 125 74HC138D-Q100,118 vs CD74HC154MG4
SN74145NSR Texas Instruments Check for Price TTL/H/L SERIES, DECIMAL DECODER/DRIVER, INVERTED OUTPUT, PDSO16, GREEN, PLASTIC, SOP-16 74HC138D-Q100,118 vs SN74145NSR
74AC11138PWRE4 Texas Instruments Check for Price AC SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, PDSO16, GREEN, PLASTIC, TSSOP-16 74HC138D-Q100,118 vs 74AC11138PWRE4
P54FCT3138C(QSOP)M Pyramid Semiconductor Corporation Check for Price Decoder/Driver, FCT Series, Inverted Output, CMOS, PDSO16, 0.150 INCH, QSOP-16 74HC138D-Q100,118 vs P54FCT3138C(QSOP)M
MC74LVQ138M Motorola Mobility LLC Check for Price LVQ SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, PDSO16, EIAJ, PLASTIC, SOIC-16 74HC138D-Q100,118 vs MC74LVQ138M
equivalents icon

74HC138D-Q100,118 Related Parts

74HC138D-Q100,118 Frequently Asked Questions (FAQ)

  • The maximum frequency of operation for the 74HC138D-Q100,118 is 25 MHz.

  • To ensure proper power supply, connect VCC to a 2.0 V to 6.0 V power source, and GND to a common ground. Decouple the power supply with a 0.1 μF capacitor.

  • The recommended operating temperature range for the 74HC138D-Q100,118 is -40°C to +125°C.

  • To ensure proper operation, the enable inputs (E1, E2, E3) should be connected to a logic level (VCC or GND) or a pull-up/pull-down resistor to prevent floating inputs.

  • The maximum current that the 74HC138D-Q100,118 can sink or source is 25 mA per output pin.
