Logic / Bus Driver/Transceivers / 74HC374PW,118
Datasheets
74HC374PW,118 by:

74HC374; 74HCT374 - Octal D-type flip-flop; positive edge-trigger; 3-state@en-us TSSOP2 20-Pin

Part Details for 74HC374PW,118 by Nexperia

Overview of 74HC374PW,118 by Nexperia

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Industrial Automation Electronic Manufacturing

Price & Stock for 74HC374PW,118

Part # Distributor Description Stock Price Buy
DISTI # 37AH6101
Newark 74Hc374Pw/Sot360/Tssop20 Rohs Compliant: Yes |Nexperia 74HC374PW,118 Min Qty: 5000 Package Multiple: 1 Date Code: 0 Container: Reel 17500
  • 5,000 $0.2170
  • 10,000 $0.2110
  • 15,000 $0.2050
  • 20,000 $0.1990
  • 25,000 $0.1930
  • 250,000 $0.1870
$0.1870 / $0.2170 Buy Now
DISTI # 30AK2928
Newark Ic, Latch Rohs Compliant: Yes |Nexperia 74HC374PW,118 Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 2,500 $0.1920
  • 5,000 $0.1770
  • 10,000 $0.1650
  • 15,000 $0.1540
  • 25,000 $0.1470
$0.1470 / $0.1920 Buy Now
DISTI # 1727-4077-1-ND
DigiKey IC FF D-TYPE SNGL 8BIT 20TSSOP Min Qty: 1 Lead time: 6 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 613
In Stock
  • 1 $0.5700
  • 10 $0.4920
  • 25 $0.4588
  • 100 $0.3671
  • 250 $0.3408
  • 500 $0.2884
  • 1,000 $0.2229
  • 2,500 $0.1648
  • 5,000 $0.1542
  • 12,500 $0.1436
  • 25,000 $0.1361
  • 62,500 $0.1329
$0.1329 / $0.5700 Buy Now
DISTI # 74HC374PW,118
Avnet Americas Flip Flop D-Type Bus Interface Pos-Edge 3-ST 1-Element 20-Pin TSSOP T/R - Tape and Reel (Alt: 74HC374PW,118) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 6 Weeks, 0 Days Container: Reel 17500
  • 2,500 $0.1786
$0.1786 Buy Now
DISTI # 771-74HC374PW-T
Mouser Electronics Flip Flops 74HC374PW/SOT360/TSSOP20 RoHS: Compliant 2122
  • 1 $0.5600
  • 10 $0.4530
  • 100 $0.3340
  • 500 $0.2840
  • 1,000 $0.2280
  • 2,500 $0.1540
  • 10,000 $0.1430
  • 25,000 $0.1360
  • 50,000 $0.1320
$0.1320 / $0.5600 Buy Now
Future Electronics 74HC Series 6 V 3-State Positive Edge-Trigger Octal D-Type Flip-Flop-TSSOP-20 RoHS: Compliant pbFree: Yes Min Qty: 2500 Package Multiple: 2500 Container: Reel 2500
Reel
  • 2,500 $0.1410
  • 5,000 $0.1380
  • 10,000 $0.1350
  • 12,500 $0.1350
  • 37,500 $0.1300
$0.1300 / $0.1410 Buy Now
Rochester Electronics 74HC374PW - Bus Driver, HC/UH Series, 1-Func, 8-Bit, True Output, CMOS, TSSOP20 RoHS: Compliant Status: Active Min Qty: 1 2425
  • 1 $0.1382
  • 25 $0.1354
  • 100 $0.1299
  • 500 $0.1244
  • 1,000 $0.1175
$0.1175 / $0.1382 Buy Now
DISTI # 74HC374PW,118
Avnet Americas Flip Flop D-Type Bus Interface Pos-Edge 3-ST 1-Element 20-Pin TSSOP T/R - Tape and Reel (Alt: 74HC374PW,118) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 6 Weeks, 0 Days Container: Reel 17500
  • 2,500 $0.1786
$0.1786 Buy Now
DISTI # 74HC374PW.118
TME IC: digital, D flip-flop, Ch: 8, CMOS, SMD, TSSOP20, reel,tape, HC Min Qty: 1 1987
  • 1 $0.4390
  • 3 $0.4020
  • 10 $0.3510
  • 25 $0.2890
  • 100 $0.2380
  • 500 $0.2200
  • 1,000 $0.1950
  • 2,500 $0.1630
$0.1630 / $0.4390 Buy Now
DISTI # 74HC374PW,118
Avnet Asia Flip Flop D-Type Bus Interface Pos-Edge 3-ST 1-Element 20-Pin TSSOP T/R (Alt: 74HC374PW,118) RoHS: Compliant Min Qty: 7500 Package Multiple: 2500 Lead time: 6 Weeks, 0 Days 0
  • 7,500 $0.1879
  • 15,000 $0.1855
  • 22,500 $0.1831
  • 37,500 $0.1808
  • 75,000 $0.1763
  • 187,500 $0.1721
  • 375,000 $0.1680
$0.1680 / $0.1879 Buy Now
DISTI # 74HC374PW,118
Avnet Silica Flip Flop D-Type Bus Interface Pos-Edge 3-ST 1-Element 20-Pin TSSOP T/R (Alt: 74HC374PW,118) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 8 Weeks, 0 Days Silica - 5000
Buy Now
DISTI # 74HC374PW,118
EBV Elektronik Flip Flop D-Type Bus Interface Pos-Edge 3-ST 1-Element 20-Pin TSSOP T/R (Alt: 74HC374PW,118) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 8 Weeks, 0 Days EBV - 5000
Buy Now

Part Details for 74HC374PW,118

74HC374PW,118 CAD Models

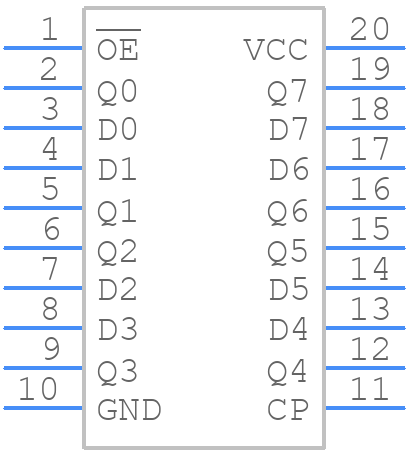

  • Part Symbol

    Part Symbol

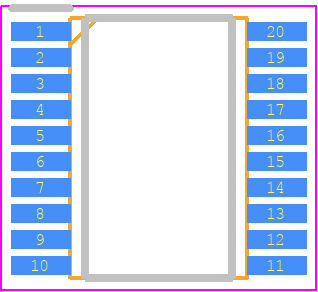

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

74HC374PW,118 Part Data Attributes:

Parametric Data
74HC374PW,118 Nexperia
Buy Now Datasheet
Compare Parts:
74HC374PW,118 Nexperia 74HC374; 74HCT374 - Octal D-type flip-flop; positive edge-trigger; 3-state@en-us TSSOP2 20-Pin
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer NEXPERIA
Part Package Code TSSOP2
Package Description PLASTIC, TSSOP-20
Pin Count 20
Manufacturer Package Code SOT360-1
Reach Compliance Code compliant
HTS Code 8542.39.00.01
Factory Lead Time 6 Weeks
Date Of Intro 1995-11-01
Samacsys Manufacturer Nexperia
Family HC/UH
JESD-30 Code R-PDSO-G20
JESD-609 Code e4
Length 6.5 mm
Load Capacitance (CL) 50 pF
Logic IC Type BUS DRIVER
Moisture Sensitivity Level 1
Number of Bits 8
Number of Functions 1
Number of Ports 2
Number of Terminals 20
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Output Characteristics 3-STATE
Output Polarity TRUE
Package Body Material PLASTIC/EPOXY
Package Code TSSOP
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Packing Method TR, 13 INCH
Peak Reflow Temperature (Cel) 260
Propagation Delay (tpd) 50 ns
Qualification Status Not Qualified
Seated Height-Max 1.1 mm
Supply Voltage-Max (Vsup) 6 V
Supply Voltage-Min (Vsup) 2 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount YES
Technology CMOS
Temperature Grade AUTOMOTIVE
Terminal Finish NICKEL PALLADIUM GOLD
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Width 4.4 mm

Alternate Parts for 74HC374PW,118

This table gives cross-reference parts and alternative options found for 74HC374PW,118. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 74HC374PW,118, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Description Manufacturer Compare
74HC374PW,118 74HC(T)374 - Octal D-type flip-flop; positive edge-trigger; 3-state TSSOP2 20-Pin NXP Semiconductors 74HC374PW,118 vs 74HC374PW,118
74HC374PW HC/UH SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDSO20, PLASTIC, TSSOP-20 NXP Semiconductors 74HC374PW,118 vs 74HC374PW
MC74HC374ADTR2 HC/UH SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDSO20, PLASTIC, TSSOP-20 Motorola Mobility LLC 74HC374PW,118 vs MC74HC374ADTR2
MM74HC374MTCX Bus Driver, HC/UH Series, 1-Func, 8-Bit, True Output, CMOS, PDSO20, 4.40 MM, MO-153AC, TSSOP-20 Fairchild Semiconductor Corporation 74HC374PW,118 vs MM74HC374MTCX
MM74HC374MTCX HC/UH SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDSO20, 4.40 MM, MO-153AC, TSSOP-20 Rochester Electronics LLC 74HC374PW,118 vs MM74HC374MTCX
MM74HC374MTC Bus Driver, HC/UH Series, 1-Func, 8-Bit, True Output, CMOS, PDSO20, 4.40 MM, MO-153AC, TSSOP-20 Fairchild Semiconductor Corporation 74HC374PW,118 vs MM74HC374MTC
SN74HC374PWT Octal Edge-Triggered D-Type Flip-Flops With 3-State Outputs 20-TSSOP -40 to 85 Texas Instruments 74HC374PW,118 vs SN74HC374PWT
74HC374PW Bus Driver, HC/UH Series, 1-Func, 8-Bit, True Output, CMOS, PDSO20 Nexperia 74HC374PW,118 vs 74HC374PW
SN74HC374PWTG4 HC/UH SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDSO20, GREEN, PLASTIC, TSSOP-20 Texas Instruments 74HC374PW,118 vs SN74HC374PWTG4
935174860112 Bus Driver, HC/UH Series, 1-Func, 8-Bit, True Output, CMOS, PDSO20 Nexperia 74HC374PW,118 vs 935174860112
Part Number Description Manufacturer Compare
74HC374PW,112 74HC(T)374 - Octal D-type flip-flop; positive edge-trigger; 3-state TSSOP2 20-Pin NXP Semiconductors 74HC374PW,118 vs 74HC374PW,112
SN74HC374PWTG4 HC/UH SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDSO20, GREEN, PLASTIC, TSSOP-20 Texas Instruments 74HC374PW,118 vs SN74HC374PWTG4
SN74HC374PWRG4 Octal Edge-Triggered D-Type Flip-Flops With 3-State Outputs 20-TSSOP -40 to 85 Texas Instruments 74HC374PW,118 vs SN74HC374PWRG4
MM74HC374MTCX Bus Driver, HC/UH Series, 1-Func, 8-Bit, True Output, CMOS, PDSO20, 4.40 MM, MO-153AC, TSSOP-20 Fairchild Semiconductor Corporation 74HC374PW,118 vs MM74HC374MTCX
SN74HC374PWRE4 HC/UH SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDSO20, GREEN, PLASTIC, TSSOP-20 Texas Instruments 74HC374PW,118 vs SN74HC374PWRE4
74HC374PW,112 74HC374; 74HCT374 - Octal D-type flip-flop; positive edge-trigger; 3-state@en-us TSSOP2 20-Pin Nexperia 74HC374PW,118 vs 74HC374PW,112
SN74HC374PWLE Octal Edge-Triggered D-Type Flip-Flops With 3-State Outputs 20-TSSOP -40 to 85 Texas Instruments 74HC374PW,118 vs SN74HC374PWLE
MM74HC374MTC Bus Driver, HC/UH Series, 1-Func, 8-Bit, True Output, CMOS, PDSO20, 4.40 MM, MO-153AC, TSSOP-20 Fairchild Semiconductor Corporation 74HC374PW,118 vs MM74HC374MTC
MC74HC374ADTR2G Octal D Flip-Flop, TSSOP 20 LEAD, 2500-REEL onsemi 74HC374PW,118 vs MC74HC374ADTR2G
935174860112 Bus Driver, HC/UH Series, 1-Func, 8-Bit, True Output, CMOS, PDSO20 Nexperia 74HC374PW,118 vs 935174860112
