74HC4538PW,118 by:
Nexperia

74HC4538 - Dual retriggerable precision monostable multivibrator@en-us TSSOP 16-Pin

Part Details for 74HC4538PW,118 by Nexperia

Results Overview of 74HC4538PW,118 by Nexperia

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Space Technology Aerospace and Defense Automotive

74HC4538PW,118 Information

74HC4538PW,118 by Nexperia is a Prescaler/Multivibrator.
Prescaler/Multivibrators are under the broader part category of Logic Components.

Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
CD74HC4538PWR Texas Instruments High Speed CMOS Logic Dual Retriggerable Precision Monostable Multivibrators 16-TSSOP -55 to 125
CD74HC4538PW Texas Instruments High Speed CMOS Logic Dual Retriggerable Precision Monostable Multivibrators 16-TSSOP -55 to 125
CD74HC4538PWT Texas Instruments High Speed CMOS Logic Dual Retriggerable Precision Monostable Multivibrators 16-TSSOP -55 to 125

Price & Stock for 74HC4538PW,118

Part # Distributor Description Stock Price Buy
DISTI # 85X2954
Newark Monostable Multivibrator, -40 To 125Degc, Logic Family/Base Number:74Hc4538, Multivibrator Type:Retriggerable Monostable, Output Current:25Ma, Supply Voltage Min:2V, Supply Voltage Max:6V, Ic Case/Package:Tssop, Qualification:- Rohs Compliant: Yes |Nexperia 74HC4538PW,118 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 120
  • 1 $0.5810
  • 10 $0.4010
$0.4010 / $0.5810 Buy Now
DISTI # 93X4909
Newark Multivibrator, Dual, Monostable, Tssop16, Logic Family/Base Number:74Hc4538, Multivibrator Type:Retriggerable Monostable, Output Current:25Ma, Supply Voltage Min:2V, Supply Voltage Max:6V, Logic Case Style:Tssop, No. Of Rohs Compliant: Yes |Nexperia 74HC4538PW,118 RoHS: Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 1 Container: Reel 0
  • 2,500 $0.2390
  • 5,000 $0.2320
  • 10,000 $0.2270
$0.2270 / $0.2390 Buy Now
DISTI # 74HC4538PW,118
Avnet Americas Multivibrator, Retriggerable Monostable, 74HC4538, 45 ns, 5.2 mA, 2 V to 6 V, 16 Pins, TSSOP - Tape and Reel (Alt: 74HC4538PW,118) COO: China RoHS: Compliant Min Qty: 5000 Package Multiple: 2500 Lead time: 10 Weeks, 0 Days Container: Reel 0
  • 5,000 $0.2811
  • 10,000 $0.2693
  • 20,000 $0.2592
  • 40,000 $0.2525
  • 80,000 $0.2424
$0.2424 / $0.2811 Buy Now
DISTI # 74HC4538PW.118
TME IC: digital, monostable,multivibrator,resettable, CMOS, 2÷6VDC Min Qty: 1 0
  • 1 $1.1800
  • 5 $0.8840
  • 10 $0.7960
$0.7960 / $1.1800 RFQ
DISTI # 74HC4538PW,118
Chip One Stop Semiconductors RoHS: Compliant Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Cut Tape 3247
  • 1 $0.4290
  • 250,000,000 $0.1840
$0.1840 / $0.4290 Buy Now
Chip Stock Multivibrator,RetriggerableMonostable,74HC4538,45ns,5.2mA,2Vto6V,16Pins,TSSOP 121000
RFQ

US Tariff Estimator: 74HC4538PW,118 by Nexperia

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

74HC4538PW,118
Nexperia
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for 74HC4538PW,118

74HC4538PW,118 CAD Models

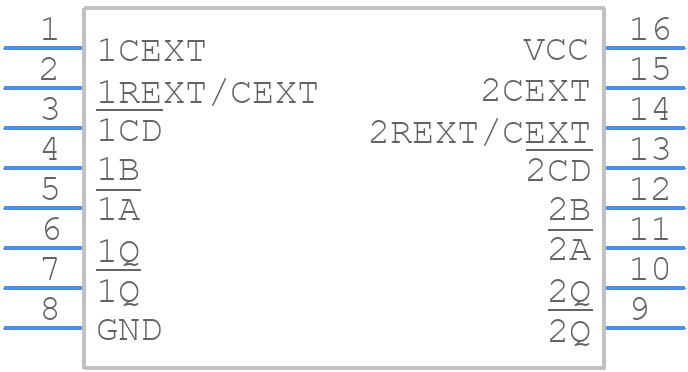

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

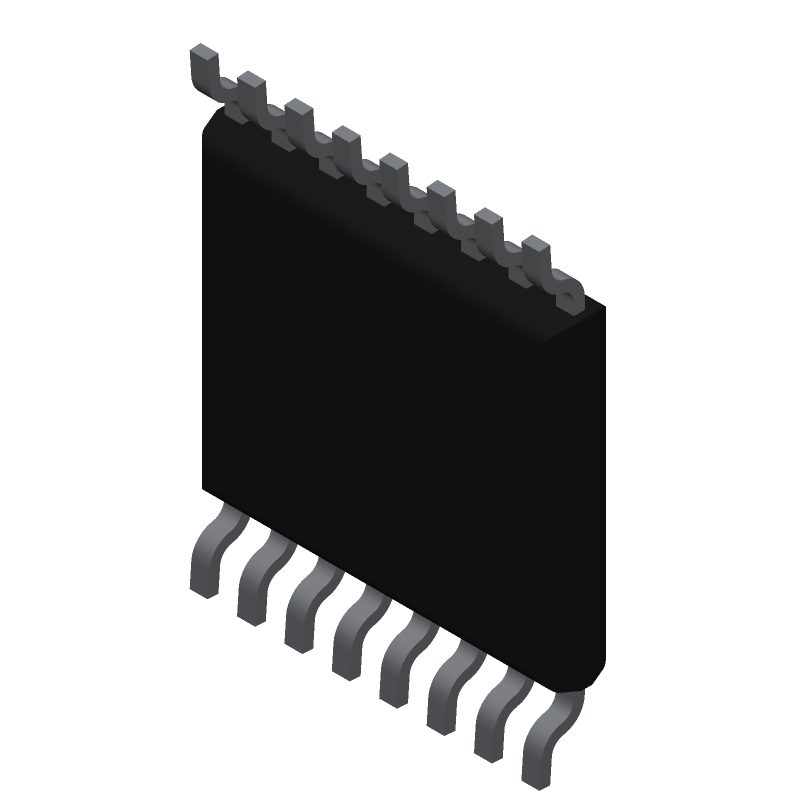

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

74HC4538PW,118 Part Data Attributes

Parametric Data
74HC4538PW,118 Nexperia
Buy Now Datasheet
Compare Parts:
74HC4538PW,118 Nexperia 74HC4538 - Dual retriggerable precision monostable multivibrator@en-us TSSOP 16-Pin
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer NEXPERIA
Part Package Code TSSOP
Package Description TSSOP,
Pin Count 16
Manufacturer Package Code SOT403-1
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Factory Lead Time 8 Weeks
Date Of Intro 1993-09-01
Samacsys Manufacturer Nexperia
Additional Feature RETRIGGERABLE
Family HC/UH
JESD-30 Code R-PDSO-G16
JESD-609 Code e4
Length 5 mm
Logic IC Type MONOSTABLE MULTIVIBRATOR
Moisture Sensitivity Level 1
Number of Data/Clock Inputs 2
Number of Functions 2
Number of Terminals 16
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Output Polarity COMPLEMENTARY
Package Body Material PLASTIC/EPOXY
Package Code TSSOP
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Packing Method TR, 13 INCH
Peak Reflow Temperature (Cel) 260
Propagation Delay (tpd) 80 ns
Seated Height-Max 1.1 mm
Supply Voltage-Max (Vsup) 6 V
Supply Voltage-Min (Vsup) 2 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount YES
Technology CMOS
Temperature Grade AUTOMOTIVE
Terminal Finish NICKEL PALLADIUM GOLD
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Width 4.4 mm

Alternate Parts for 74HC4538PW,118

This table gives cross-reference parts and alternative options found for 74HC4538PW,118. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 74HC4538PW,118, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
HD74HC4538T Renesas Electronics Corporation Check for Price HC/UH SERIES, DUAL MONOSTABLE MULTIVIBRATOR, PDSO16, TSOP-16 74HC4538PW,118 vs HD74HC4538T
MM74HC4538MTC Fairchild Semiconductor Corporation Check for Price Monostable Multivibrator, HC/UH Series, 2-Func, CMOS, PDSO16, 4.40 MM, MO-153, TSSOP-16 74HC4538PW,118 vs MM74HC4538MTC
CD74HC4538QPWRQ1 Texas Instruments Check for Price Automotive Catalog High Speed CMOS Logic Dual Retriggerable Precision Monostable Multivibrators 16-TSSOP -40 to 125 74HC4538PW,118 vs CD74HC4538QPWRQ1
74HC4538PW,112 Nexperia Check for Price 74HC4538 - Dual retriggerable precision monostable multivibrator@en-us TSSOP 16-Pin 74HC4538PW,118 vs 74HC4538PW,112
74HC4538PW,118 NXP Semiconductors Check for Price 74HC(T)4538 - Dual retriggerable precision monostable multivibrator TSSOP 16-Pin 74HC4538PW,118 vs 74HC4538PW,118
74HC4538PW NXP Semiconductors Check for Price IC HC/UH SERIES, DUAL MONOSTABLE MULTIVIBRATOR, PDSO16, PLASTIC, TSSOP-16, Prescaler/Multivibrator 74HC4538PW,118 vs 74HC4538PW
TC74HC4538AFT Toshiba America Electronic Components Check for Price IC HC/UH SERIES, DUAL MONOSTABLE MULTIVIBRATOR, PDSO16, 4.40 MM, 0.65 MM PITCH, LEAD FREE, PLASTIC, TSSOP-16, Prescaler/Multivibrator 74HC4538PW,118 vs TC74HC4538AFT
CD74HC4538PWTG4 Texas Instruments Check for Price HC/UH SERIES, DUAL MONOSTABLE MULTIVIBRATOR, PDSO16, GREEN, PLASTIC, TSSOP-16 74HC4538PW,118 vs CD74HC4538PWTG4
MC74HC4538ADTR2 onsemi Check for Price HC/UH SERIES, DUAL MONOSTABLE MULTIVIBRATOR, PDSO16, LEAD FREE, TSSOP-16 74HC4538PW,118 vs MC74HC4538ADTR2
Part Number Manufacturer Composite Price Description Compare
M74HC4538TTR STMicroelectronics Check for Price HC/UH SERIES, DUAL MONOSTABLE MULTIVIBRATOR, PDSO16, TSSOP-16 74HC4538PW,118 vs M74HC4538TTR
5962-9055701EA Texas Instruments Check for Price CMOS Dual Precision Monostable Multivibrator (125 C Operation) 16-CDIP -55 to 125 74HC4538PW,118 vs 5962-9055701EA
5962R9661401VEC Renesas Electronics Corporation Check for Price Monostable Multivibrator, 4000/14000/40000 Series, 2-Func, CMOS, CDIP16 74HC4538PW,118 vs 5962R9661401VEC
HEF4538BP NXP Semiconductors Check for Price 4000/14000/40000 SERIES, DUAL MONOSTABLE MULTIVIBRATOR, PDIP16, 0.300 INCH, PLASTIC, SOT-38-4, DIP-16 74HC4538PW,118 vs HEF4538BP
MM54HC123J Texas Instruments Check for Price HC/UH SERIES, DUAL MONOSTABLE MULTIVIBRATOR, CDIP16 74HC4538PW,118 vs MM54HC123J
CD74HC4538MT Texas Instruments Check for Price High Speed CMOS Logic Dual Retriggerable Precision Monostable Multivibrators 16-SOIC -55 to 125 74HC4538PW,118 vs CD74HC4538MT
CD14538BF3A Texas Instruments Check for Price CMOS Dual Precision Monostable Multivibrator (125 C Operation) 16-CDIP -55 to 125 74HC4538PW,118 vs CD14538BF3A
CD14538BMSF Intersil Corporation Check for Price 4000/14000/40000 SERIES, DUAL MONOSTABLE MULTIVIBRATOR, CDIP16, FRIT SEALED, CERAMIC, DIP-16 74HC4538PW,118 vs CD14538BMSF
CD4098BFMSH Harris Semiconductor Check for Price Monostable Multivibrator, 4000/14000/40000 Series, 2-Func, CMOS, CDIP16 74HC4538PW,118 vs CD4098BFMSH
74VHC123AMSCX Fairchild Semiconductor Corporation Check for Price Monostable Multivibrator, AHC/VHC Series, 2-Func, CMOS, PDSO16, 0.150 INCH, NARROW, SOIC-16 74HC4538PW,118 vs 74VHC123AMSCX
equivalents icon

74HC4538PW,118 Related Parts

74HC4538PW,118 Frequently Asked Questions (FAQ)

  • The recommended operating voltage range for the 74HC4538PW,118 is 2.0 V to 6.0 V.

  • To ensure proper powering, connect VCC to a stable power supply, and GND to a reliable ground. Decouple the power supply with a 100 nF capacitor.

  • The maximum frequency of operation for the 74HC4538PW,118 is 30 MHz at 6.0 V and 20 MHz at 4.5 V.

  • Unused inputs should be tied to VCC or GND through a 1 kΩ resistor to prevent floating inputs and reduce power consumption.

  • The maximum current that can be sourced or sunk by the 74HC4538PW,118 is 25 mA per output.
