74HC1G125; 74HCT1G125 - Bus buffer/line driver; 3-state@en-us TSOP 5-Pin

Part Details for 74HCT1G125GV,125 by Nexperia

Results Overview of 74HCT1G125GV,125 by Nexperia

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Consumer Electronics Security and Surveillance Industrial Automation Audio and Video Systems Aerospace and Defense Healthcare Energy and Power Systems Telecommunications Automotive

74HCT1G125GV,125 Information

74HCT1G125GV,125 by Nexperia is a Bus Driver/Transceiver.
Bus Driver/Transceivers are under the broader part category of Logic Components.

Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.

Price & Stock for 74HCT1G125GV,125

Part # Distributor Description Stock Price Buy
DISTI # 74AH2327
Newark Buffer/Line Driver, Sc-74A-5, Logic Device Type:Buffer/Line Driver, Non Inverting, Logic Family/Base Number:74Hct1G125, Ic Case/Package:Sc-74A, No. Of Pins:5Pins, Supply Voltage Min:4.5V, Supply Voltage Max:5.5V Rohs Compliant: Yes |Nexperia 74HCT1G125GV,125 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 1155
  • 1 $0.2550
  • 10 $0.1680
  • 25 $0.1460
  • 50 $0.1360
  • 100 $0.1260
  • 250 $0.1170
  • 500 $0.1110
  • 1,000 $0.0990
$0.0990 / $0.2550 Buy Now
DISTI # 1727-6054-1-ND
DigiKey IC BUFFER NON-INVERT 5.5V SC-74A Min Qty: 1 Lead time: 8 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) 8284
In Stock
  • 1 $0.1700
  • 10 $0.1170
  • 50 $0.0942
  • 100 $0.0870
  • 3,000 $0.0667
  • 6,000 $0.0644
$0.0644 / $0.1700 Buy Now
DISTI # 74HCT1G125GV,125
Avnet Americas Buffer / Line Driver, 74HCT1G125, 1 Element, 4.5 V to 5.5 V, 5 Pins, TSOP - Tape and Reel (Alt: 74HCT1G125GV,125) COO: Malaysia RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 8 Weeks, 0 Days Container: Tape & Reel 0
  • 3,000 $0.0603
  • 6,000 $0.0600
  • 12,000 $0.0597
  • 24,000 $0.0593
  • 48,000 $0.0590
$0.0590 / $0.0603 Buy Now
DISTI # 771-74HCT1G125GV
Mouser Electronics Buffers & Line Drivers 74HCT1G125GV/SOT753/SO5 RoHS: Compliant 124
  • 1 $0.3300
  • 10 $0.2160
  • 50 $0.1500
  • 100 $0.1340
  • 1,000 $0.1070
  • 3,000 $0.0900
$0.0900 / $0.3300 Buy Now
DISTI # 74HCT1G125GV.125
TME IC: digital, buffer,non-inverting,line driver, Ch: 1, CMOS,TTL Min Qty: 1 1440
  • 1 $0.1300
  • 10 $0.1010
  • 25 $0.0896
  • 100 $0.0836
  • 250 $0.0790
  • 500 $0.0720
  • 1,000 $0.0662
  • 3,000 $0.0639
$0.0639 / $0.1300 Buy Now
DISTI # 74HCT1G125GV,125
Avnet Asia Buffer / Line Driver, 74HCT1G125, 1 Element, 4.5 V to 5.5 V, 5 Pins, TSOP (Alt: 74HCT1G125GV,125) RoHS: Compliant Min Qty: 15000 Package Multiple: 3000 Lead time: 8 Weeks, 0 Days 0
RFQ
DISTI # 74HCT1G125GV,125
Chip One Stop Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 10 Lead time: 0 Weeks, 1 Days Container: Cut Tape 2223
  • 10 $0.0615
$0.0615 Buy Now
Chip Stock 16mA4.5V~5.5V6mA1SOT-23-5Buffer/Driver/TransceiverROHS 51000
RFQ
Vyrian Other Function Semiconductors 3986
RFQ

US Tariff Estimator: 74HCT1G125GV,125 by Nexperia

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

74HCT1G125GV,125
Nexperia
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for 74HCT1G125GV,125

74HCT1G125GV,125 CAD Models

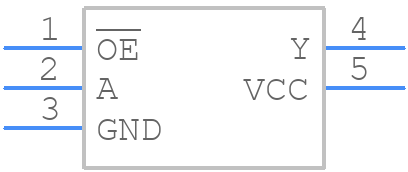

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

74HCT1G125GV,125 Part Data Attributes

Parametric Data
74HCT1G125GV,125 Nexperia
Buy Now Datasheet
Compare Parts:
74HCT1G125GV,125 Nexperia 74HC1G125; 74HCT1G125 - Bus buffer/line driver; 3-state@en-us TSOP 5-Pin
Rohs Code Yes
Part Life Cycle Code Active
Part Package Code TSOP
Package Description Tsop,
Pin Count 5
Manufacturer Package Code SOT753
Reach Compliance Code Compliant
HTS Code 8542.39.00.01
Factory Lead Time 8 Weeks
Date Of Intro 2017-02-01
Control Type Enable Low
Count Direction Unidirectional
Family Hct
JESD-30 Code R-PDSO-G5
JESD-609 Code e3
Length 2.9 Mm
Load Capacitance (CL) 50 Pf
Logic IC Type Bus Driver
Max I(ol) 0.0078 A
Moisture Sensitivity Level 1
Number of Bits 1
Number of Functions 1
Number of Ports 2
Number of Terminals 5
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Output Characteristics 3-State
Output Polarity True
Package Body Material Plastic/Epoxy
Package Code TSOP
Package Shape Rectangular
Package Style Small Outline, Thin Profile
Packing Method Tr, 7 Inch
Peak Reflow Temperature (Cel) 260
Prop. Delay@Nom-Sup 36 Ns
Propagation Delay (tpd) 36 Ns
Seated Height-Max 1.1 Mm
Supply Voltage-Max (Vsup) 5.5 V
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount Yes
Technology Cmos
Temperature Grade Automotive
Terminal Finish Tin
Terminal Form Gull Wing
Terminal Pitch 0.95 Mm
Terminal Position Dual
Time@Peak Reflow Temperature-Max (s) 30
Width 1.5 Mm
