74LCX16244MTD Information
74LCX16244MTD by onsemi is a Bus Driver/Transceiver.
Bus Driver/Transceivers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for 74LCX16244MTD
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
74LCX16244MTD
|
Avnet Americas | Low Voltage 16-Bit Buffer/Line Driver with 5V Tolerant Inputs and Outputs - Rail/Tube (Alt: 74LCX16244MTD) COO: Philippines (the) RoHS: Compliant Min Qty: 1220 Package Multiple: 1 Container: Tube | 0 |
|
$0.6476 / $0.6611 | Buy Now |
|
|
Bristol Electronics | 184 |
|
RFQ | ||
|
DISTI #
74LCX16244MTD
|
TME | IC: digital, buffer,non-inverting,line driver, Ch: 16, CMOS, SMD Min Qty: 3800 | 0 |
|
$0.8100 | RFQ |
|
|
Chip Stock | Buffer/LineDriver,NonInverting,74LCX16244,1Element,2Vto3.6V,48Pins,TSSOP | 5500 |
|
RFQ | |
|
|
Flip Electronics | Stock, ship today | 15200 |
|
RFQ |
US Tariff Estimator: 74LCX16244MTD by onsemi
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for 74LCX16244MTD

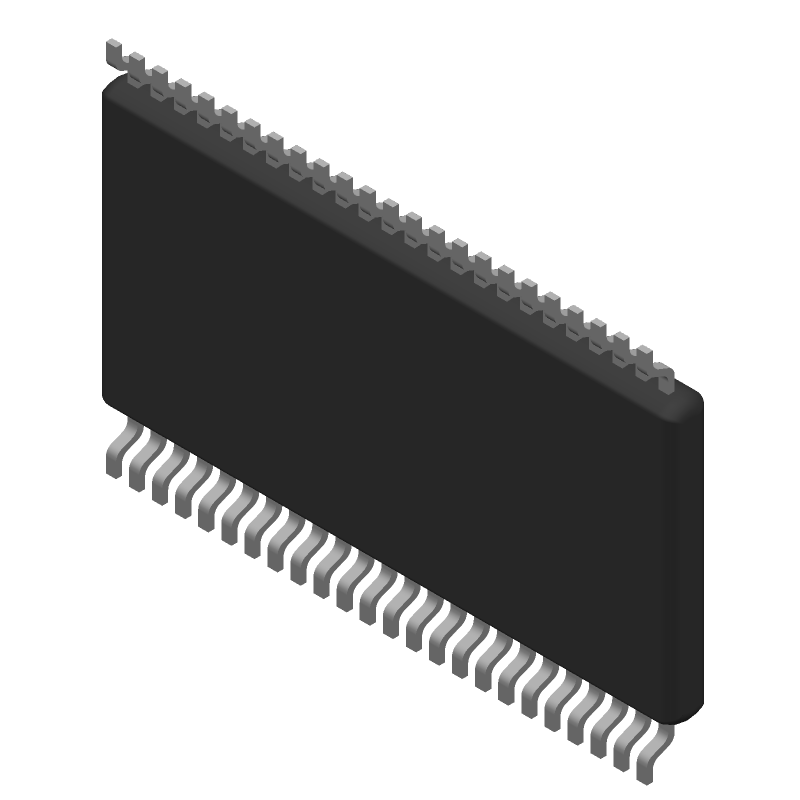

74LCX16244MTD CAD Models
-
