74LCX541FT(AJ) Information
74LCX541FT(AJ) by Toshiba America Electronic Components is a Bus Driver/Transceiver.
Bus Driver/Transceivers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for 74LCX541FT(AJ)
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
10AK3051
|
Newark | Buffer, Non Inverting, -40 To 85Deg C Rohs Compliant: Yes |Toshiba 74LCX541FT(AJ) RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 51604 |
|
$0.1870 / $0.4800 | Buy Now |
|
DISTI #
757-74LCX541FTAJ
|
Mouser Electronics | Buffers & Line Drivers CMOS Logic IC 6.5ns 24mA 1.65 to 3.6V RoHS: Compliant | 1453 |
|
$0.1450 / $0.8300 | Buy Now |
|
DISTI #
87729692
|
Verical | Buffer/Line Driver 8-CH Non-Inverting 3-ST 20-Pin TSSOP-B T/R RoHS: Compliant Min Qty: 230 Package Multiple: 1 Date Code: 1341 | Americas - 5568 |
|
$0.2350 / $0.7470 | Buy Now |
|
DISTI #
89524051
|
Verical | Buffer/Line Driver 8-CH Non-Inverting 3-ST 20-Pin TSSOP-B T/R RoHS: Compliant Min Qty: 258 Package Multiple: 1 Date Code: 2501 | Americas - 1549 |
|
$0.2716 | Buy Now |
|
|
Quest Components | 3152 |
|
$0.5280 / $1.7600 | Buy Now | |
|
DISTI #
74LCX541FTAJ
|
TME | IC: digital, buffer,non-inverting,line driver, Ch: 8, CMOS, SMD Min Qty: 1 | 0 |
|
$0.2410 / $0.7900 | RFQ |
|
DISTI #
74LCX541FT(AJ)
|
Avnet Asia | Bus Buffer, 74LCX541, 1 Element, 1.5 V to 3.6 V, 20 Pins, TSSOP (Alt: 74LCX541FT(AJ)) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 24 Weeks, 0 Days | 0 |
|
$0.0824 / $0.0960 | Buy Now |
|
DISTI #
74LCX541FT(AJ)
|
Chip One Stop | Semiconductors RoHS: Compliant Min Qty: 5 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 5568 |
|
$0.1370 / $0.7470 | Buy Now |
|
DISTI #
74LCX541FT(AJ)
|
EBV Elektronik | Bus Buffer 74LCX541 1 Element 15 V to 36 V 20 Pins TSSOP (Alt: 74LCX541FT(AJ)) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 17 Weeks, 0 Days | EBV - 7500 |
|
Buy Now | |
|
|
LCSC | 8 10uA 1.65V3.6V 1 6.5ns3.3V50pF TSSOP-20-175mil Buffers Drivers Receivers Transceivers RoHS | 2605 |
|
$0.1071 / $0.2242 | Buy Now |
US Tariff Estimator: 74LCX541FT(AJ) by Toshiba America Electronic Components
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for 74LCX541FT(AJ)
74LCX541FT(AJ) CAD Models
-

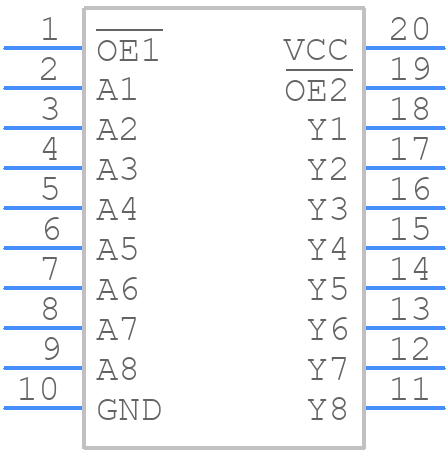

Part Symbol
-
