Part Details for 74LVC138AD,112 by Nexperia
Results Overview of 74LVC138AD,112 by Nexperia
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (10 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Financial Technology (Fintech)
Computing and Data Storage
Telecommunications
Communication and Networking
74LVC138AD,112 Information
74LVC138AD,112 by Nexperia is a Decoder/Driver.
Decoder/Drivers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| SN74LVC138ADT | Texas Instruments | 3-Line To 8-Line decoder/Demultiplexer 16-SOIC -40 to 85 | |
| SN74LVC138ADBR | Texas Instruments | 3-Line To 8-Line decoder/Demultiplexer 16-SSOP -40 to 85 | |
| SN74LVC138ADRG4 | Texas Instruments | 3-Line To 8-Line decoder/Demultiplexer 16-SOIC -40 to 85 |
Price & Stock for 74LVC138AD,112
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
74LVC138AD,112
|
Avnet Americas | 3-to-8 Line Decoder / Demultiplexer, 74LVC, 8 Outputs, 1.2 V to 3.6 V, 16 Pins, SOIC - Rail/Tube (Alt: 74LVC138AD,112) COO: Thailand RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Tube | 940 |
|
RFQ | |
|
|
Rochester Electronics | LVC/LCX/Z Series, Inverted Output, CMOS, PDSO16 RoHS: Compliant Status: Obsolete Min Qty: 1 | 54488 |
|
$0.2003 / $0.3231 | Buy Now |
|
|
Chip Stock | 3-to-8LineDecoder/Demultiplexer,74LVC,8Outputs,1.2Vto3.6V,16Pins,SOIC | 51000 |
|
RFQ |
US Tariff Estimator: 74LVC138AD,112 by Nexperia
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for 74LVC138AD,112
74LVC138AD,112 CAD Models
-

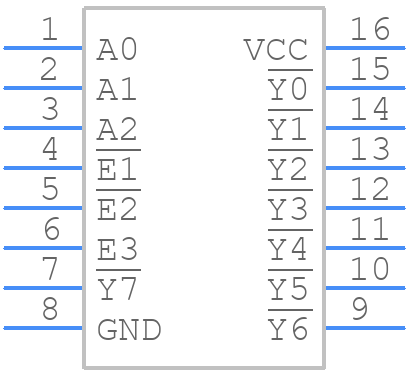

Part Symbol
-

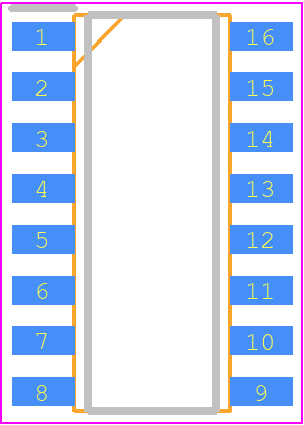

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
74LVC138AD,112 Part Data Attributes
|
|
74LVC138AD,112
Nexperia
Buy Now
Datasheet
|
Compare Parts:
74LVC138AD,112
Nexperia
74LVC138A - 3-to-8 line decoder/demultiplexer; inverting@en-us SOP 16-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Part Package Code | SOP | |
| Package Description | Sop, | |
| Pin Count | 16 | |
| Manufacturer Package Code | SOT109-1 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Date Of Intro | 1998-04-28 | |
| Family | Lvc/Lcx/Z | |
| Input Conditioning | Standard | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e4 | |
| Length | 9.9 Mm | |
| Load Capacitance (CL) | 50 Pf | |
| Logic IC Type | 3-Line To 8-Line Decoder | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Polarity | Inverted | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 260 | |
| Propagation Delay (tpd) | 8.5 Ns | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 Mm | |
| Supply Voltage-Max (Vsup) | 3.6 V | |
| Supply Voltage-Min (Vsup) | 1.2 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Automotive | |
| Terminal Finish | Nickel Palladium Gold | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 Mm |
Alternate Parts for 74LVC138AD,112
This table gives cross-reference parts and alternative options found for 74LVC138AD,112. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 74LVC138AD,112, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 74LVC138AD,118 | Nexperia | $0.2784 | 74LVC138A - 3-to-8 line decoder/demultiplexer; inverting@en-us SOP 16-Pin | 74LVC138AD,112 vs 74LVC138AD,118 |
| 74LCX138M | onsemi | $0.3002 | Low Voltage 1-of-8 Decoder/Demultiplexer with 5V Tolerant Inputs, SOIC-16, 960-TUBE | 74LVC138AD,112 vs 74LCX138M |
| 74LCX138MX | onsemi | $0.7268 | Low Voltage 1-of-8 Decoder/Demultiplexer with 5V Tolerant Inputs, SOIC-16, 2500-REEL | 74LVC138AD,112 vs 74LCX138MX |
| 74LCX138MX | Fairchild Semiconductor Corporation | Check for Price | Decoder/Driver, LVC/LCX/Z Series, Inverted Output, CMOS, PDSO16, 0.150 INCH, MS-012, SOIC-16 | 74LVC138AD,112 vs 74LCX138MX |
| MC74LCX138D | onsemi | Check for Price | LVC/LCX/Z SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, PDSO16, SOIC-16 | 74LVC138AD,112 vs MC74LCX138D |
| 74LCX138M | National Semiconductor Corporation | Check for Price | Decoder/Driver, LVC/LCX/Z Series, Inverted Output, CMOS, PDSO16 | 74LVC138AD,112 vs 74LCX138M |
| 74LCX138MX | National Semiconductor Corporation | Check for Price | Decoder/Driver, LVC/LCX/Z Series, Inverted Output, CMOS, PDSO16 | 74LVC138AD,112 vs 74LCX138MX |
| 74LCX138M | STMicroelectronics | Check for Price | LVC/LCX/Z SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, PDSO16, SO-16 | 74LVC138AD,112 vs 74LCX138M |
| 74LVC138AD | Nexperia | Check for Price | Decoder/Driver | 74LVC138AD,112 vs 74LVC138AD |
| 935260745112 | NXP Semiconductors | Check for Price | IC LVC/LCX/Z SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, PDSO16, 3.90 MM, PLASTIC, MS-012, SOT-109-1, SO-16, Decoder/Driver | 74LVC138AD,112 vs 935260745112 |
74LVC138AD,112 Frequently Asked Questions (FAQ)
-
The maximum frequency of operation for the 74LVC138AD is typically 100 MHz, but it can vary depending on the specific application and operating conditions.
-
To ensure proper power supply, connect VCC to a stable 1.65V to 5.5V power source, and GND to a reliable ground connection. Also, ensure that the power supply is decoupled with a 0.1uF capacitor.
-
The 74LVC138AD can sink or source up to 24mA of current per output pin, but it's recommended to limit the current to 12mA per pin to ensure reliable operation.
-
The enable inputs (E1, E2, E3) must be connected to a valid logic level (either VCC or GND) to ensure proper operation. Leaving them floating can cause unpredictable behavior.
-
The recommended operating temperature range for the 74LVC138AD is -40°C to +125°C, but it can vary depending on the specific application and operating conditions.
