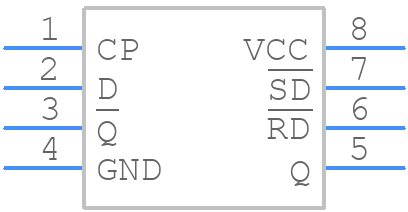

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 74LVC1G74DP,125 by Nexperia
Overview of 74LVC1G74DP,125 by Nexperia
- Distributor Offerings: (23 listings)
- Number of FFF Equivalents: (3 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (7 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Price & Stock for 74LVC1G74DP,125
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
85X3003
|
Newark | Flip-Flop, D Type, Tssop-8, Logic Family/Base Number:74Lvc1G74, Flip-Flop Type:D, Propagation Delay:-, Frequency:200Mhz, Output Current:50Ma, Logic Case Style:Tssop, No. Of Pins:8Pins, Trigger Type:Positive Edge, Product Range:- Rohs Compliant: Yes |Nexperia 74LVC1G74DP,125 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 11803 |
|
$0.2020 / $0.3790 | Buy Now |
|
DISTI #
93X4944
|
Newark | Flip-Flop, D-Type, 200Mhz, Tssop-8, Logic Family/Base Number:74Lvc1G74, Flip-Flop Type:D, Propagation Delay:-, Frequency:200Mhz, Output Current:50Ma, Logic Case Style:Tssop, No. Of Pins:8Pins, Trigger Type:Positive Edge, Ic Output Rohs Compliant: Yes |Nexperia 74LVC1G74DP,125 RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 1 Container: Reel | 0 |
|
$0.1420 | Buy Now |
|
DISTI #
1727-5983-1-ND
|
DigiKey | IC FF D-TYPE SNGL 1BIT 8TSSOP Min Qty: 1 Lead time: 8 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
196665 In Stock |
|
$0.1362 / $0.3000 | Buy Now |
|
DISTI #
74LVC1G74DP,125
|
Avnet Americas | Flip Flop D-Type Pos-Edge 1-Element 8-Pin TSSOP - Tape and Reel (Alt: 74LVC1G74DP,125) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Container: Reel | 66000 |
|
$0.1264 / $0.1505 | Buy Now |
|
DISTI #
74LVC1G74DP,125
|
Avnet Americas | Flip Flop D-Type Pos-Edge 1-Element 8-Pin TSSOP - Tape and Reel (Alt: 74LVC1G74DP,125) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 4 Weeks, 0 Days Container: Reel | 681 Partner Stock |
|
RFQ | |
|
DISTI #
74LVC1G74DP,125
|
Avnet Americas | Flip Flop D-Type Pos-Edge 1-Element 8-Pin TSSOP - Tape and Reel (Alt: 74LVC1G74DP,125) RoHS: Compliant Min Qty: 6000 Package Multiple: 3000 Container: Reel | 0 |
|
$0.1264 / $0.1505 | Buy Now |
|
DISTI #
771-LVC1GDP125
|
Mouser Electronics | Flip Flops 74LVC1G74DP/SOT505/TSSOP8 RoHS: Compliant | 54183 |
|
$0.1300 / $0.3400 | Buy Now |
|
|
Future Electronics | 74LVC Series 5.5 V SMT Single D-Type Flip-Flop, Postive Edge Trigger - TSSOP-8 RoHS: Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Lead time: 8 Weeks Container: Reel | 213000Reel |
|
$0.1220 / $0.1300 | Buy Now |
|
|
Future Electronics | 74LVC Series 5.5 V SMT Single D-Type Flip-Flop, Postive Edge Trigger - TSSOP-8 RoHS: Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Lead time: 8 Weeks Container: Reel | 6000Reel |
|
$0.1140 / $0.1240 | Buy Now |
|
DISTI #
70751511
|
Verical | Flip Flop D-Type Pos-Edge 1-Element 8-Pin TSSOP T/R RoHS: Compliant Min Qty: 666 Package Multiple: 1 Date Code: 2235 | Americas - 182785 |
|
$0.1282 | Buy Now |
Part Details for 74LVC1G74DP,125
74LVC1G74DP,125 CAD Models
74LVC1G74DP,125 Part Data Attributes
|
|
74LVC1G74DP,125
Nexperia
Buy Now
Datasheet
|
Compare Parts:
74LVC1G74DP,125
Nexperia
74LVC1G74 - Single D-type flip-flop with set and reset; positive edge trigger@en-us TSSOP 8-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NEXPERIA | |
| Part Package Code | TSSOP | |
| Package Description | 3 MM, PLASTIC, SOT-505-2, TSSOP-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | SOT505-2 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 4 Weeks | |
| Samacsys Manufacturer | Nexperia | |
| Family | LVC/LCX/Z | |
| JESD-30 Code | S-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 3 mm | |
| Logic IC Type | D FLIP-FLOP | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Polarity | COMPLEMENTARY | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Packing Method | TR, 7 INCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Propagation Delay (tpd) | 13.4 ns | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.1 mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 1.65 V | |
| Supply Voltage-Nom (Vsup) | 1.8 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | NICKEL PALLADIUM GOLD SILVER | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Trigger Type | POSITIVE EDGE | |
| Width | 3 mm | |
| fmax-Min | 200 MHz |
