8-188275-0 by: TE Connectivity

Board Connector, 10 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Red Insulator, Receptacle

Part Details for 8-188275-0 by TE Connectivity

Results Overview of 8-188275-0 by TE Connectivity

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Audio and Video Systems

8-188275-0 Information

8-188275-0 by TE Connectivity is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for 8-188275-0

Part # Distributor Description Stock Price Buy
DISTI # 68Y1600
Newark Board-To-Board Connector, Micro-Match Series, Surface Mount, Receptacle, 10, 1.27 Mm Rohs Compliant: Yes |Amp Te Connectivity 8-188275-0 RoHS: Compliant Min Qty: 900 Package Multiple: 1 Date Code: 0 Container: Reel 900
  • 900 $1.3600
  • 1,800 $1.2700
  • 3,600 $1.2500
  • 5,400 $1.1800
$1.1800 / $1.3600 Buy Now
DISTI # 68AH0532
Newark Pcb Rcpt, Board-To-Board, 10Pos, 2Row, Connector Systems:Board-To-Board, Pitch Spacing:1.27Mm, No. Of Rows:2Rows, No. Of Contacts:10Contacts, Connector Mounting:Surface Mount Straight, Product Range:Micro-Match Rohs Compliant: Yes |Amp Te Connectivity 8-188275-0 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 219
  • 1 $2.1700
  • 25 $1.9300
  • 50 $1.8500
  • 100 $1.7600
  • 250 $1.7000
  • 500 $1.6200
$1.6200 / $2.1700 Buy Now
DISTI # 68AH0532
Avnet Americas FFC/FPC Connector Socket 10 Position 1.27 mm Solder Straight Surface Mount T/R - Product that comes on tape, but is not reeled (Alt: 68AH0532) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks, 2 Days Container: Ammo Pack 219 Partner Stock
  • 1 $2.1700
  • 25 $1.9300
  • 50 $1.8500
  • 100 $1.7600
  • 250 $1.7000
$1.7000 / $2.1700 Buy Now
DISTI # 8-188275-0
Avnet Americas FFC/FPC Connector Socket 10 Position 1.27 mm Solder Straight Surface Mount T/R - Tape and Reel (Alt: 8-188275-0) RoHS: Compliant Min Qty: 3600 Package Multiple: 3600 Lead time: 29 Weeks, 2 Days Container: Reel 6300 Factory Stock
RFQ
DISTI # AMP8-188275-0
Heilind Electronics MICRO-MATCH SMD FTE Americas - 0 in Stock
  • 3,600 $1.3976
  • 5,400 $1.2070
$1.2070 / $1.3976 Buy Now
Bristol Electronics   3103
RFQ
Bristol Electronics   1016
RFQ
Bristol Electronics   900
RFQ
DISTI # AMP-8-188275-0
TME Micro-MaTch, socket, female, PIN: 10, SMT, on PCBs, Layout: 2x5 Min Qty: 1 3709
  • 1 $1.7200
  • 65 $1.5500
  • 100 $1.5000
  • 400 $1.1900
  • 450 $1.1700
  • 500 $1.1300
  • 900 $1.0100
  • 1,800 $0.9000
  • 6,300 $0.8900
$0.8900 / $1.7200 Buy Now
DISTI # AMP8-188275-0
Interstate Connecting Components MICRO-MATCH SMD FTE 0
  • 3,600 $1.3976
  • 5,400 $1.2070
$1.2070 / $1.3976 Buy Now
Powell Electronics MICROMATCH 127 F SM Min Qty: 1 17
  • 1 $4.6820
  • 3,600 $3.2774
  • 5,000 $2.8305
  • 10,000 $2.4332
  • 25,000 $2.3339
$2.3339 / $4.6820 Buy Now
DISTI # 000000000000855857
Sager Board to Board & Mezzanine Connectors FOB 10P TOP ENTRY SMT Min Qty: 900 0
  • 900 $1.5600
$1.5600 Buy Now
Chip 1 Exchange INSTOCK 3510
RFQ
Chip 1 Exchange INSTOCK 625
RFQ
DISTI # 8-188275-0
Avnet Abacus FFC/FPC Connector Socket 10 Position 1.27 mm Solder Straight Surface Mount T/R (Alt: 8-188275-0) RoHS: Compliant Min Qty: 900 Package Multiple: 900 Lead time: 23 Weeks, 0 Days Abacus - 61200
Buy Now
DISTI # 8-188275-0
Avnet Abacus FFC/FPC Connector Socket 10 Position 1.27 mm Solder Straight Surface Mount T/R (Alt: 8-188275-0) RoHS: Compliant Min Qty: 900 Package Multiple: 900 Lead time: 25 Weeks, 0 Days Abacus - 0
Buy Now
DISTI # 8-188275-0
Avnet Asia FFC/FPC Connector Socket 10 Position 1.27 mm Solder Straight Surface Mount T/R (Alt: 8-188275-0) RoHS: Compliant Min Qty: 3600 Package Multiple: 3600 Lead time: 23 Weeks, 2 Days 0
RFQ
DISTI # C1S757100703211
Chip1Stop Conn Socket Strip F 10 POS 1.27mm Solder ST Top Entry SMD Automotive Reel RoHS: Compliant Container: Cut Tape 4677
  • 1 $1.9000
  • 10 $1.4000
  • 50 $1.3900
  • 100 $1.3100
  • 500 $1.0900
  • 1,000 $0.9830
  • 2,000 $0.9600
  • 3,600 $0.9280
$0.9280 / $1.9000 Buy Now
New Advantage Corporation Connector Micro-MaTch F 10P P2,54 SMD RoHS: Compliant Min Qty: 1 Package Multiple: 1 916
  • 204 $1.1000
  • 916 $1.0200
$1.0200 / $1.1000 Buy Now
NTEMALL Connectors Interconnects 10058
  • 10 $0.9605
  • 50 $0.9417
  • 100 $0.9232
  • 1,000 $0.9051
$0.9051 / $0.9605 Buy Now

Part Details for 8-188275-0

8-188275-0 CAD Models

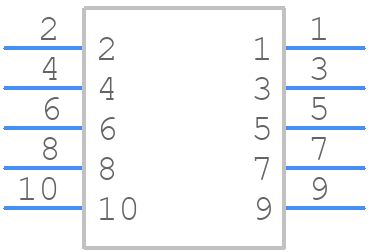

  • Part Symbol

    Part Symbol

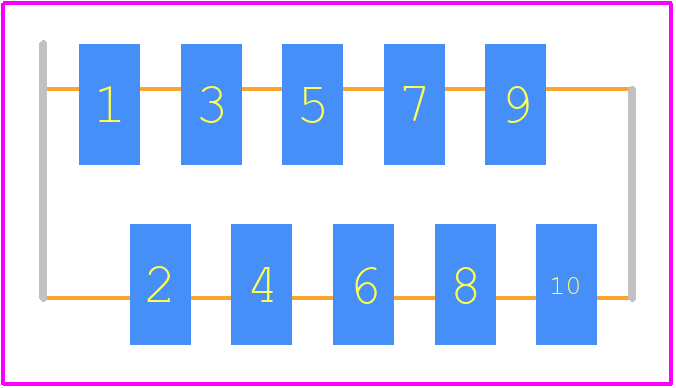

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

8-188275-0 Part Data Attributes

Parametric Data
8-188275-0 TE Connectivity
Buy Now Datasheet
Compare Parts:
8-188275-0 TE Connectivity Board Connector, 10 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Red Insulator, Receptacle
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TE CONNECTIVITY LTD
Reach Compliance Code compliant
Factory Lead Time 12 Weeks, 2 Days
Samacsys Manufacturer TE Connectivity
Additional Feature STAGGERED CONFIGURATION
Body Breadth 0.205 inch
Body Depth 0.21 inch
Body Length 0.578 inch
Body/Shell Style RECEPTACLE
Connector Type BOARD CONNECTOR
Contact Finish Mating NOT APPLICABLE
Contact Finish Termination Tin (Sn) - with Nickel (Ni) barrier
Contact Gender FEMALE
Contact Material NOT APPLICABLE
Contact Pattern STAGGERED
Contact Resistance 10 mΩ
DIN Conformance NO
EMI Shielded NO
Empty Shell YES
Filter Feature NO
IEC Conformance NO
Insulation Resistance 1000000000 Ω
Insulator Color RED
Insulator Material POLYAMIDE46
JESD-609 Code e3
MIL Conformance NO
Mains Connector Rating 1.5A
Mating Contact Pitch 0.05 inch
Mating Contact Row Spacing 0.059 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Option 2 FRICTION LOCK
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 2
Number of Ports 1
Number of Rows Loaded 2
Operating Temperature-Max 105 °C
Operating Temperature-Min -40 °C
Option GENERAL PURPOSE
PCB Contact Pattern STAGGERED
PCB Contact Row Spacing 4.5 mm
Panel Mount NO
Plating Thickness 196.85u inch
Polarization Key POLARIZED
Rated Current (Signal) 1.5 A
Rated Voltage 100 V
Reference Standard UL
Terminal Pitch 1.27 mm
Termination Type SURFACE MOUNT
Total Number of Contacts 10
UL Flammability Code 94V-0
