9852-05-00 Information
9852-05-00 by Coto Technology USA is a Reed Relay.
Reed Relays are under the broader part category of Relays.
A relay is an electromechanical switch that uses an electrical signal to open or close circuits, protecting systems from overcurrents or voltage surges. They are used in a variety of applications, including lighting control, telecommunication, automotive systems, and power protection. Read more about Relays on our Relays part category page.
Price & Stock for 9852-05-00
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
84C8955
|
Newark | Relay, Reed, Spdt, 30V, 0.1A, Smd, Contact Configuration:Spdt, Coil Voltage:5Vdc, Product Range:9852 Series, Relay Mounting:Surface Mount, Coil Resistance:110Ohm, Switching Current Max:100Ma, Switching Voltage Max:30V Rohs Compliant: Yes |Coto Technology 9852-05-00 RoHS: Compliant Min Qty: 1067 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$39.8300 | Buy Now |
|
DISTI #
9852-05-00
|
TME | Relay: reed switch, SPDT, Ucoil: 5VDC, 0.2A, max.30VDC, max.30VAC Min Qty: 1 | 527 |
|
$33.9500 / $39.7600 | Buy Now |
|
|
Chip Stock | ReedRelay5VDC110Ohm0.1ASPDT(4.95x5.33)mmSMDDry | 299 |
|
RFQ |
US Tariff Estimator: 9852-05-00 by Coto Technology USA
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for 9852-05-00
9852-05-00 CAD Models
-

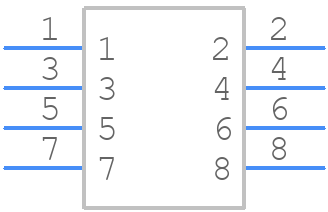

Part Symbol
-

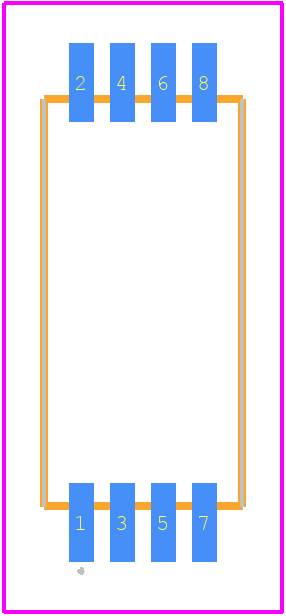

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
9852-05-00 Part Data Attributes
|
|
9852-05-00
Coto Technology USA
Buy Now
Datasheet
|
Compare Parts:
9852-05-00
Coto Technology USA
Dry Reed Relay, 1 Form C, SPDT, Momentary, 0.045A (Coil), 5VDC (Coil), 225mW (Coil), 0.1A (Contact), 30VDC (Contact), DC Input, Random, AC/DC Output, Surface Mount-Straight
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Rohs Compliant | |
| Reach Compliance Code | Not Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.41.00.60 | |
| Additional Feature | Shielded | |
| Body Breadth | 4.95 Mm | |
| Body Height | 5.33 Mm | |
| Body Length or Diameter | 10.16 Mm | |
| Coil Current(DC)-Max | 0.045 A | |
| Coil Operate Voltage(DC) | 3.8 V | |
| Coil Power | 225 Mw | |
| Coil Release Voltage(DC) | 0.4 V | |
| Coil Resistance | 110 Ω | |
| Coil Voltage(DC)-Max | 5 V | |
| Coil Voltage-Nom | 5 V | |
| Coil/Input Supply Type | Dc | |
| Contact (AC) Max Rating R Load | .1a@30vac | |
| Contact Current(AC)-Max | 0.1 A | |
| Contact Current(DC)-Max | 0.1 A | |
| Contact (DC) Max Rating R Load | .1a@30vdc | |
| Contact Voltage(AC)-Max | 30 V | |
| Contact Voltage(DC)-Max | 30 V | |
| Contact/Output Supply Type | Ac/Dc | |
| Electrical Life | 100000000 Cycle(S) | |
| Input Switching Control Type | Random | |
| Insulation Resistance | 1000000000 Ω | |
| JESD-609 Code | e4 | |
| Mounting Feature | Surface Mount-Straight | |
| Number of Terminals | 8 | |
| Operate Time | 1 Ms | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -20 °C | |
| Packing Method | Tr | |
| Physical Dimension | 10.16mm X 4.95mm X 5.33mm | |
| Relay Action | Momentary | |
| Relay Form | 1 Form C | |
| Relay Function | Spdt | |
| Relay Type | Dry Reed Relay | |
| Release Time | 1 Ms | |
| Sealing | Hermetically Sealed | |
| Surface Mount | No | |
| Terminal Finish | Gold (Au) - Electroplated | |
| Termination Type | Solder |
