ABM12W-32.0000MHZ-8-K2Z-T3 Information
ABM12W-32.0000MHZ-8-K2Z-T3 by Abracon Corporation is a Quartz Crystal.
Quartz Crystals are under the broader part category of Crystals/Resonators.
Crystals and resonators are key components in electronic circuits that provide precise frequency signals for applications like timing and data processing. Read more about Crystals/Resonators on our Crystals/Resonators part category page.
Price & Stock for ABM12W-32.0000MHZ-8-K2Z-T3
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
535-ABM12W-32.0000MHZ-8-K2Z-T3CT-ND
|
DigiKey | CRYSTAL 32.0000MHZ 8PF SMD Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
2953 In Stock |
|
$0.5574 / $1.0000 | Buy Now |
|
DISTI #
ABM12W-32.0000MHZ-8-K2Z-T3
|
Avnet Americas | Crystal, Quartz, 32 MHz, SMD, 1.6mm x 1.2mm x 0.4mm, 50 ppm, 8 pF, 20 ppm, ABM12W - Tape and Reel (Alt: ABM12W-32.0000MHZ-8-K2Z-T3) COO: Taiwan (Province of China) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 10 Weeks, 0 Days Container: Tape & Reel | 0 |
|
$0.4816 / $0.5714 | Buy Now |
|
DISTI #
815-12W32-8K2ZT
|
Mouser Electronics | Crystals Xtal 1612 4-SMD 32MHz Tol +/-20ppm Stab +/-50ppm -40C - 125C 8pF 80 Ohms RoHS: Compliant | 0 |
|
$0.5510 / $0.5730 | Order Now |
|
|
Onlinecomponents.com | Low Profile SMD Quartz Crystal - 32.0000MHZ ±20ppm - 8pF - Temp Stability: ±50ppm -40°C to +125°C - Tape&Reel COO: Taiwan RoHS: Compliant | 0 |
|
$0.4965 / $1.0400 | Buy Now |
|
DISTI #
ABM12W-32.0000MHZ-8-K2Z-T3
|
Avnet Abacus | Crystal Quartz 32 MHz SMD 16mm x 12mm x 04mm 50 ppm 8 pF 20 ppm ABM12W - Tape and Reel (Alt: ABM12W-32.0000MHZ-8-K2Z-T3) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 12 Weeks, 0 Days Container: Tape & Reel | Abacus - 0 |
|
Buy Now | |
|
|
Braemac Americas-Symmetry | CRYSTAL 32.0000MHZ 8PF SMD Min Qty: 3000 | 0 |
|
$0.3750 / $0.5000 | Buy Now |
US Tariff Estimator: ABM12W-32.0000MHZ-8-K2Z-T3 by Abracon Corporation
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for ABM12W-32.0000MHZ-8-K2Z-T3
ABM12W-32.0000MHZ-8-K2Z-T3 CAD Models
-

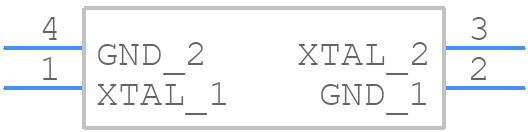

Part Symbol
-
Footprint
-

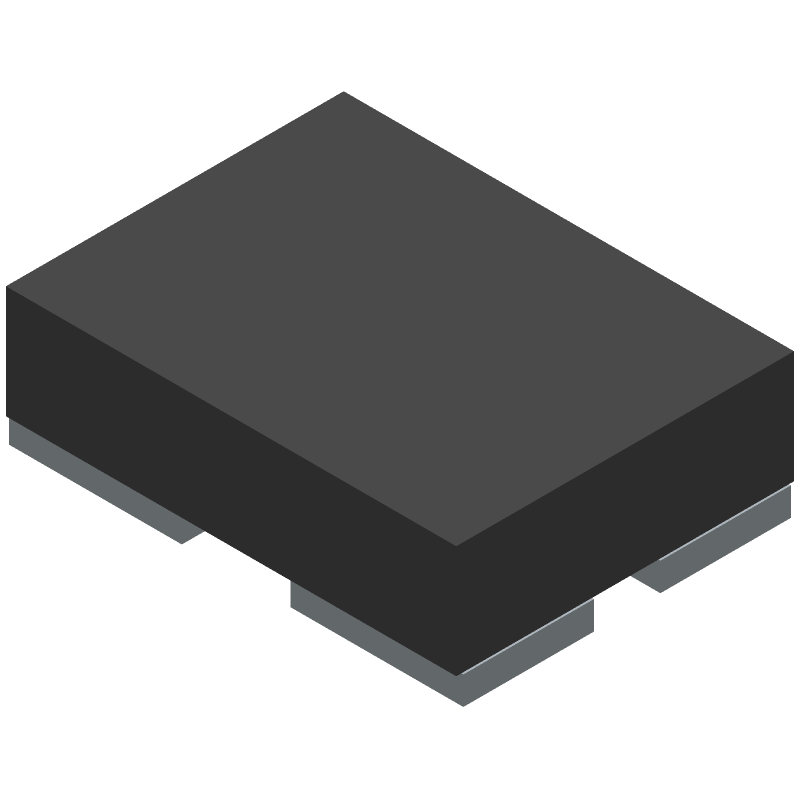

3D Model
