AD1582ARTZ-REEL7 Information
AD1582ARTZ-REEL7 by Analog Devices Inc is a Voltage Reference.
Voltage References are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for AD1582ARTZ-REEL7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK6172
|
Newark | Volt Ref, Sot-23-3, -40 To 125Deg C, Voltage Reference Type:Series - Fixed, Product Range:Ad1582 Series, Reference Voltage Min:2.48V, Reference Voltage Max:2.52V, Initial Accuracy:0.8%, Temperature Coefficient:± 40Ppm/°C Rohs Compliant: Yes |Analog Devices AD1582ARTZ-REEL7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 2306 |
|
$1.2300 / $3.5600 | Buy Now |
|
DISTI #
505-AD1582ARTZ-REEL7CT-ND
|
DigiKey | IC VREF SERIES 0.8% SOT23-3 Min Qty: 1 Lead time: 10 Weeks Container: Cut Tape (CT), Tape & Reel (TR), Digi-Reel® |
6057 In Stock |
|
$1.1750 / $3.7100 | Buy Now |
|
DISTI #
584-AD1582ARTZ-R7
|
Mouser Electronics | Voltage References IC, 2.5V MICROPOWER REF RoHS: Compliant | 6637 |
|
$1.1700 / $3.5600 | Buy Now |
|
DISTI #
V36:1790_06208059
|
Arrow Electronics | V-Ref Precision 2.5V 5mA 3-Pin SOT-23 T/R COO: Thailand RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 10 Weeks Date Code: 2534 | Americas - 3000 |
|
$1.1674 | Buy Now |
|
DISTI #
V72:2272_06208059
|
Arrow Electronics | V-Ref Precision 2.5V 5mA 3-Pin SOT-23 T/R COO: Malaysia RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2320 Container: Cut Strips | Americas - 116 |
|
$1.2560 / $3.4790 | Buy Now |
|
|
Analog Devices Inc | IC, 2.5V MICROPOWER REF Min Qty: 3000 Package Multiple: 3000 | 3000 |
|
$1.1750 / $3.7100 | Buy Now |
|
DISTI #
91727154
|
Verical | V-Ref Precision 2.5V 5mA 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Date Code: 2534 | Americas - 3000 |
|
$1.1674 | Buy Now |
|
DISTI #
69142278
|
Verical | V-Ref Precision 2.5V 5mA 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 2320 | Americas - 116 |
|
$1.2560 / $3.4790 | Buy Now |
|
|
Bristol Electronics | 1093 |
|
RFQ | ||
|
|
Bristol Electronics | 1025 |
|
RFQ |
US Tariff Estimator: AD1582ARTZ-REEL7 by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for AD1582ARTZ-REEL7
AD1582ARTZ-REEL7 CAD Models
-

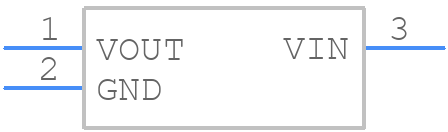

Part Symbol
-
Footprint
-

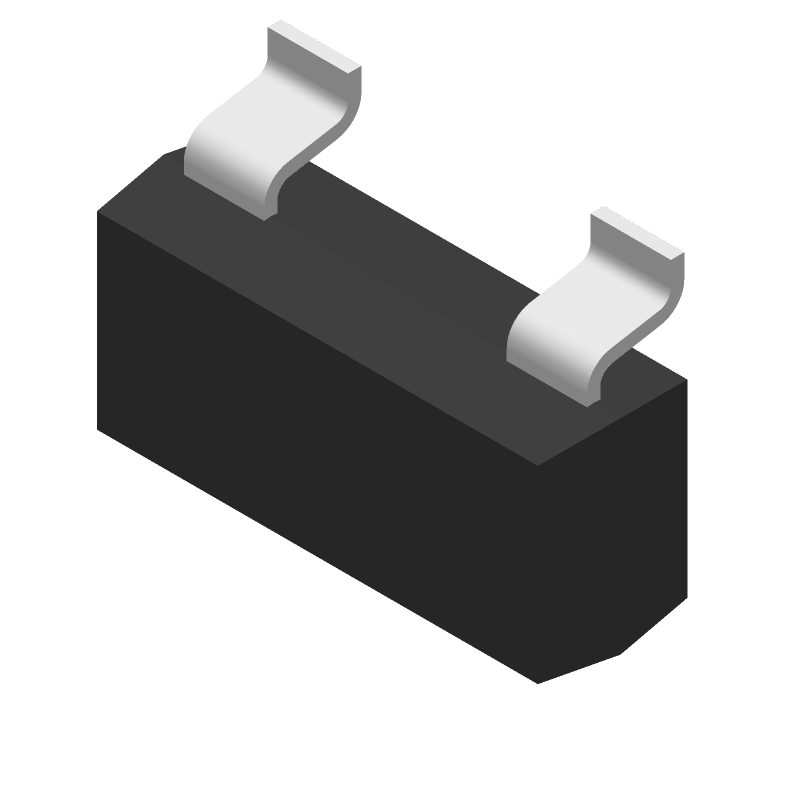

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
AD1582ARTZ-REEL7 Part Data Attributes
|
|
AD1582ARTZ-REEL7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD1582ARTZ-REEL7
Analog Devices Inc
Three Terminal Voltage Reference, 1 Output, 2.5V, BIPolar, PDSO3
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SOT-23 | |
| Package Description | Tsop, To-236 | |
| Pin Count | 3 | |
| Manufacturer Package Code | RT-3 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Date Of Intro | 1997-03-01 | |
| Analog IC - Other Type | Three Terminal Voltage Reference | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Length | 2.9 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Voltage-Max | 2.52 V | |
| Output Voltage-Min | 2.48 V | |
| Output Voltage-Nom | 2.5 V | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | TSOP | |
| Package Equivalence Code | TO-236 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Thin Profile | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.12 Mm | |
| Supply Voltage-Max (Vsup) | 12 V | |
| Supply Voltage-Min (Vsup) | 2.7 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | Yes | |
| Technology | Bipolar | |
| Temp Coef of Voltage-Max | 100 Ppm/°C | |
| Temperature Grade | Automotive | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.95 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Trim/Adjustable Output | No | |
| Voltage Tolerance-Max | 0.8% | |
| Width | 1.3 Mm |
