AD5348BCPZ Information
AD5348BCPZ by Analog Devices Inc is a Digital to Analog Converter.
Digital to Analog Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for AD5348BCPZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
49AK9223
|
Newark | Dac, 12Bit, Lfcsp-Wq-40, -40 To 105Deg C, Resolution (Bits):12Bit, Sampling Rate:-, Data Interface:Parallel, Supply Voltage Range:2.5V To 5.5V, Adc/Dac Case Style:Lfcsp-Wq, No. Of Pins:40Pins, Input Channel Type:Single Ended Rohs Compliant: Yes |Analog Devices AD5348BCPZ RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
$18.8900 / $29.4300 | Buy Now |
|
|
Analog Devices Inc | Octal 12-BitVout DAC With Seri Package Multiple: 1 | 2974 |
|
$13.3300 / $29.4300 | Buy Now |
|
|
Bristol Electronics | Min Qty: 1 | 9 |
|
$18.1079 | Buy Now |
|
DISTI #
AD5348BCPZ
|
Richardson RFPD | CONVERTER - DAC RoHS: Compliant Min Qty: 33 | 0 |
|
$19.7400 / $21.0800 | Buy Now |
|
|
Chip Stock | DAC8-CHResistor-String12-bit40-PinLFCSPEPTray | 3055 |
|
RFQ | |
|
|
Win Source Electronics | IC DAC 12BIT V-OUT 40LFCSP | 1555 |
|
$27.4922 / $41.2384 | Buy Now |
US Tariff Estimator: AD5348BCPZ by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for AD5348BCPZ
AD5348BCPZ CAD Models
-

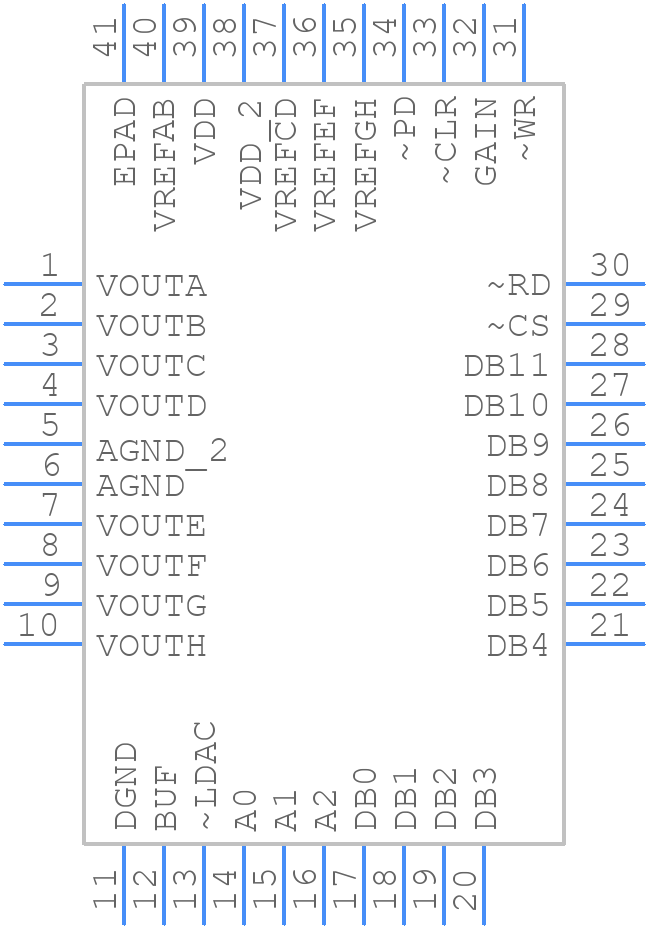

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
AD5348BCPZ Part Data Attributes
|
|
AD5348BCPZ
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD5348BCPZ
Analog Devices Inc
2.5 V to 5.5 V, Parallel Interface Octal Voltage Output 12-Bit D/A Converter
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | QFN | |
| Package Description | Vqccn, Lcc40,.24sq,20 | |
| Pin Count | 40 | |
| Manufacturer Package Code | CP-40-9 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Analog Output Voltage-Max | 5.499 V | |
| Analog Output Voltage-Min | 0.001 V | |
| Converter Type | D/A Converter | |
| Input Bit Code | BINARY | |
| Input Format | Parallel, Word | |
| JESD-30 Code | S-XQCC-N40 | |
| JESD-609 Code | e3 | |
| Length | 6 Mm | |
| Linearity Error-Max (EL) | 0.3906% | |
| Moisture Sensitivity Level | 3 | |
| Number of Bits | 12 | |
| Number of Functions | 1 | |
| Number of Terminals | 40 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Unspecified | |
| Package Code | VQCCN | |
| Package Equivalence Code | LCC40,.24SQ,20 | |
| Package Shape | Square | |
| Package Style | Chip Carrier, Very Thin Profile | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1 Mm | |
| Settling Time-Nom (tstl) | 8 µS | |
| Supply Voltage-Nom | 3 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Industrial | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | No Lead | |
| Terminal Pitch | 0.5 Mm | |
| Terminal Position | Quad | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 6 Mm |
