Part Details for AD8139ACPZ-REEL7 by Analog Devices Inc
Results Overview of AD8139ACPZ-REEL7 by Analog Devices Inc
- Distributor Offerings: (17 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (1 option)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
AD8139ACPZ-REEL7 Information
AD8139ACPZ-REEL7 by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for AD8139ACPZ-REEL7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
80AK8707
|
Newark | Diff-Amp, 410Mhz, -40 To 125Deg C, Lfcsp Rohs Compliant: Yes |Analog Devices AD8139ACPZ-REEL7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 690 |
|
$6.4000 / $12.1900 | Buy Now |
|
DISTI #
AD8139ACPZ-REEL7CT-ND
|
DigiKey | IC OPAMP DIFF 1 CIRCUIT 8LFCSP Min Qty: 1 Lead time: 10 Weeks Container: Tape & Reel (TR), Digi-Reel®, Cut Tape (CT) |
2151 In Stock |
|
$6.4000 / $12.8400 | Buy Now |
|
DISTI #
584-AD8139ACPZ-R7
|
Mouser Electronics | Differential Amplifiers High Performance Low Noise ADC Driver RoHS: Compliant | 1650 |
|
$6.4000 / $12.1900 | Buy Now |
|
DISTI #
V72:2272_06213562
|
Arrow Electronics | SP Amp DIFF AMP Single R-R O/P ±6V/12V 8-Pin LFCSP EP T/R COO: Philippines RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2240 Container: Cut Strips | Americas - 547 |
|
$4.0460 / $6.5853 | Buy Now |
|
|
Analog Devices Inc | High Performance Low Noise ADC Min Qty: 1 Package Multiple: 1500 | 8040 |
|
$4.8600 / $12.8400 | Buy Now |
|
DISTI #
26647726
|
Verical | SP Amp DIFF AMP Single R-R O/P ±6V/12V 8-Pin LFCSP EP T/R RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 | Americas - 7500 |
|
$6.3327 | Buy Now |
|
DISTI #
65749165
|
Verical | SP Amp DIFF AMP Single R-R O/P ±6V/12V 8-Pin LFCSP EP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 2240 | Americas - 547 |
|
$4.0460 / $4.5750 | Buy Now |
|
|
Quest Components | OPERATIONAL AMPLIFIER, 1 FUNC, 500UV OFFSET-MAX, BIPOLAR | 183 |
|
$5.1840 / $12.9600 | Buy Now |
|
|
Rochester Electronics | Operational Amplifier, 1 Func, 500uV Offset-Max, BIPolar RoHS: Compliant Status: Active Min Qty: 1 | 3 |
|
$5.3900 / $6.7400 | Buy Now |
|
DISTI #
V72:2272_06213562
|
Arrow Electronics | SP Amp DIFF AMP Single R-R O/P ±6V/12V 8-Pin LFCSP EP T/R COO: Philippines RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2240 Container: Cut Strips | Americas - 547 |
|
$4.0460 / $6.5853 | Buy Now |
US Tariff Estimator: AD8139ACPZ-REEL7 by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for AD8139ACPZ-REEL7
AD8139ACPZ-REEL7 CAD Models
-

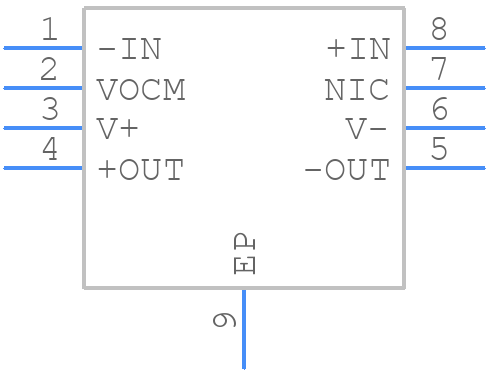

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
AD8139ACPZ-REEL7 Part Data Attributes
|
|
AD8139ACPZ-REEL7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD8139ACPZ-REEL7
Analog Devices Inc
Operational Amplifier, 1 Func, 500uV Offset-Max, BIPolar
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SON | |
| Package Description | 3 X 3 Mm, Rohs Compliant, Lfcsp-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | CP-8-13 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Amplifier Type | Operational Amplifier | |
| Architecture | Voltage-Feedback | |
| Average Bias Current-Max (IIB) | 8 µA | |
| Bias Current-Max (IIB) @25C | 4.2 µA | |
| Common-mode Reject Ratio-Min | 80 Db | |
| Common-mode Reject Ratio-Nom | 84 Db | |
| Frequency Compensation | Yes | |
| Input Offset Voltage-Max | 500 µV | |
| JESD-30 Code | S-XDSO-N8 | |
| JESD-609 Code | e3 | |
| Length | 3 Mm | |
| Low-Bias | No | |
| Low-Offset | No | |
| Micropower | No | |
| Moisture Sensitivity Level | 3 | |
| Neg Supply Voltage Limit-Max | -6 V | |
| Neg Supply Voltage-Nom (Vsup) | -5 V | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Unspecified | |
| Package Code | HVSON | |
| Package Equivalence Code | SOLCC8,.11,20 | |
| Package Shape | Square | |
| Package Style | Small Outline, Heat Sink/Slug, Very Thin Profile | |
| Packing Method | Tr, 7 Inch | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | No | |
| Programmable Power | No | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 0.9 Mm | |
| Slew Rate-Nom | 800 V/Us | |
| Supply Current-Max | 25.5 Ma | |
| Supply Voltage Limit-Max | 6 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | Yes | |
| Technology | Bipolar | |
| Temperature Grade | Automotive | |
| Terminal Finish | Matte Tin (Sn) - Annealed | |
| Terminal Form | No Lead | |
| Terminal Pitch | 0.5 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Wideband | Yes | |
| Width | 3 Mm |
Alternate Parts for AD8139ACPZ-REEL7
This table gives cross-reference parts and alternative options found for AD8139ACPZ-REEL7. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AD8139ACPZ-REEL7, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| AD8139ACPZ-R2 | Analog Devices Inc | $7.3106 | Operational Amplifier, 1 Func, 500uV Offset-Max, BIPolar, PDSO8 | AD8139ACPZ-REEL7 vs AD8139ACPZ-R2 |
AD8139ACPZ-REEL7 Frequently Asked Questions (FAQ)
-
A good PCB layout for the AD8139 involves keeping the input and output traces short and symmetrical, using a solid ground plane, and minimizing the distance between the device and the decoupling capacitors. A 4-layer PCB with a dedicated ground plane is recommended.
-
The gain resistors (Rf and Rg) should be chosen based on the desired gain and bandwidth of the amplifier. A higher gain requires smaller resistors, while a lower gain requires larger resistors. The datasheet provides a gain resistor calculator to help with the selection.
-
The maximum input voltage that the AD8139 can handle is ±10V, which is the maximum differential input voltage. Exceeding this voltage can cause damage to the device.
-
The AD8139 has a built-in filter that can be enabled by connecting a capacitor between the FLTR pin and ground. The value of the capacitor determines the filter cutoff frequency. Additional external filtering may be required depending on the specific application.
-
The power-down mode of the AD8139 is a low-power state that can be enabled by pulling the PD pin low. In this mode, the device consumes minimal power and can be used to reduce power consumption in battery-powered applications.
