AD8222ACPZ-RL Information
AD8222ACPZ-RL by Analog Devices Inc is an Instrumentation Amplifier.
Instrumentation Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for AD8222ACPZ-RL
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
AD8222ACPZ-RLCT-ND
|
DigiKey | IC INST AMP 2 CIRCUIT 16LFCSP Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
4449 In Stock |
|
$6.4887 / $11.0800 | Buy Now |
|
DISTI #
584-AD8222ACPZ-R
|
Mouser Electronics | Instrumentation Amplifiers Dual Precision InAmp RoHS: Compliant | 358 |
|
$6.1700 / $12.5000 | Buy Now |
|
|
Analog Devices Inc | Dual Precision InAmp Min Qty: 1 Package Multiple: 5000 | 890 |
|
$4.7000 / $12.5000 | Buy Now |
|
|
Win Source Electronics | IC INST AMP 2 CIRCUIT 16LFCSP | 2740 |
|
$7.8000 / $11.7000 | Buy Now |
US Tariff Estimator: AD8222ACPZ-RL by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for AD8222ACPZ-RL
AD8222ACPZ-RL CAD Models
-

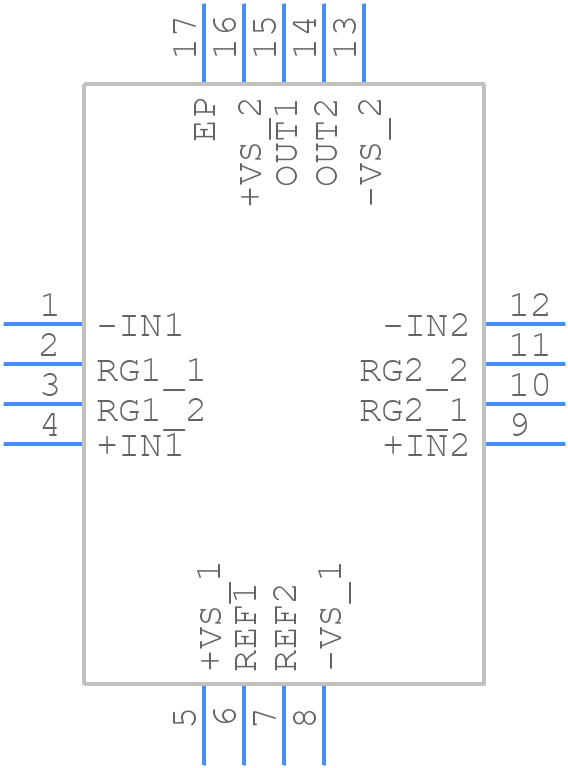

Part Symbol
-
