Part Details for AD8336ACPZ-RL by Analog Devices Inc
Results Overview of AD8336ACPZ-RL by Analog Devices Inc
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Consumer Electronics
Internet of Things (IoT)
Audio and Video Systems
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
Price & Stock for AD8336ACPZ-RL
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
AD8336ACPZ-RL-ND
|
DigiKey | IC VGAIN AMP 16LFCSP Min Qty: 5000 Lead time: 10 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$7.2125 | Buy Now |
|
DISTI #
584-AD8336ACPZ-R
|
Mouser Electronics | Special Purpose Amplifiers Gen Purpose, Single End VGA RoHS: Compliant | 0 |
|
$7.2100 | Order Now |
|
|
Analog Devices Inc | Gen Purpose, Single End VGA Min Qty: 5000 Package Multiple: 5000 | 15000 |
|
$5.4800 / $14.0500 | Buy Now |
US Tariff Estimator: AD8336ACPZ-RL by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for AD8336ACPZ-RL
AD8336ACPZ-RL CAD Models
-

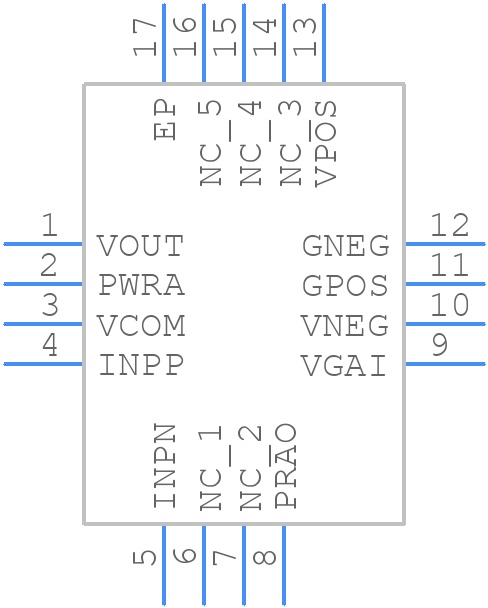

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
AD8336ACPZ-RL Part Data Attributes
|
|
AD8336ACPZ-RL
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD8336ACPZ-RL
Analog Devices Inc
General-Purpose, −55°C to +125°C, Wide Bandwidth, DC-Coupled VGA
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | QFN | |
| Package Description | Hvqccn, | |
| Pin Count | 16 | |
| Manufacturer Package Code | CP-16-4 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Consumer IC Type | Consumer Circuit | |
| JESD-30 Code | S-XQCC-N16 | |
| JESD-609 Code | e3 | |
| Length | 4 Mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Unspecified | |
| Package Code | HVQCCN | |
| Package Shape | Square | |
| Package Style | Chip Carrier, Heat Sink/Slug, Very Thin Profile | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1 Mm | |
| Supply Voltage-Max (Vsup) | 12 V | |
| Supply Voltage-Min (Vsup) | 3 V | |
| Surface Mount | Yes | |
| Temperature Grade | Industrial | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | No Lead | |
| Terminal Pitch | 0.65 Mm | |
| Terminal Position | Quad | |
| Width | 4 Mm |
AD8336ACPZ-RL Frequently Asked Questions (FAQ)
-
A good PCB layout for the AD8336ACPZ-RL involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
-
To optimize the gain and bandwidth of the AD8336ACPZ-RL, you can adjust the gain resistors (Rf and Rg) and the bandwidth capacitors (Cf and Cg) according to the datasheet's equations and graphs. You can also use Analog Devices' Filter Wizard tool to help with the design process.
-
The recommended power-up sequence for the AD8336ACPZ-RL is to first apply the analog power supply (VCC) and then the digital power supply (VDD). This ensures that the analog circuitry is powered up before the digital circuitry, preventing any potential damage or malfunction.
-
To troubleshoot common issues with the AD8336ACPZ-RL, start by checking the PCB layout and ensuring that it follows the recommended layout guidelines. Then, check the power supply voltages and decoupling capacitors to ensure they are within the recommended specifications. Finally, use an oscilloscope to measure the output signals and identify any anomalies or oscillations.
-
The maximum operating temperature range for the AD8336ACPZ-RL is -40°C to +125°C. As the temperature increases, the device's performance may degrade, resulting in increased noise, reduced gain, and decreased bandwidth. It's essential to ensure proper thermal management and heat dissipation to maintain optimal performance.
