Part Details for AD8506ACBZ-REEL7 by Analog Devices Inc
Results Overview of AD8506ACBZ-REEL7 by Analog Devices Inc
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (1 replacement)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (8 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Consumer Electronics
Internet of Things (IoT)
Audio and Video Systems
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
AD8506ACBZ-REEL7 Information
AD8506ACBZ-REEL7 by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for AD8506ACBZ-REEL7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
80AK8714
|
Newark | Op-Amp, Wlcsp-8, -40 To 125Deg C Rohs Compliant: Yes |Analog Devices AD8506ACBZ-REEL7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 2700 |
|
$1.0200 / $2.4400 | Buy Now |
|
|
Analog Devices Inc | Dual Low Voltage Micropower CM Min Qty: 1 Package Multiple: 3000 | 6213 |
|
$0.9625 / $3.2200 | Buy Now |
|
|
Rochester Electronics | Operational Amplifier, 2 Func, 3500uV Offset-Max, CMOS, PBGA8 RoHS: Compliant Status: Active Min Qty: 1 | 1438324 |
|
$0.8122 / $1.3100 | Buy Now |
|
|
Chip Stock | OperationalAmplifier,2Func,3500uVOffset-Max,CMOS,PBGA8 | 16101 |
|
RFQ | |
|
|
Win Source Electronics | IC OPAMP GP 95KHZ RRO 8WLCSP | 12601 |
|
$2.4948 / $3.7422 | Buy Now |
US Tariff Estimator: AD8506ACBZ-REEL7 by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for AD8506ACBZ-REEL7
AD8506ACBZ-REEL7 CAD Models
-

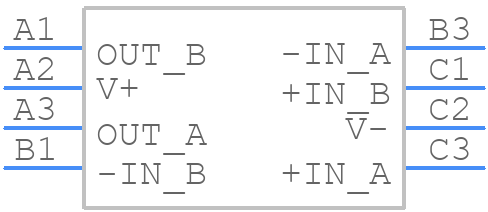

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
AD8506ACBZ-REEL7 Part Data Attributes
|
|
AD8506ACBZ-REEL7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD8506ACBZ-REEL7
Analog Devices Inc
20 µA Maximum, RRIO, Zero Input Crossover Distortion Dual Op Amp
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | BGA | |
| Package Description | Rohs Compliant, Wlcsp-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | CB-8-2 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Amplifier Type | Operational Amplifier | |
| Architecture | Voltage-Feedback | |
| Average Bias Current-Max (IIB) | 0.0006 µA | |
| Bias Current-Max (IIB) @25C | 0.00001 µA | |
| Common-mode Reject Ratio-Min | 85 Db | |
| Common-mode Reject Ratio-Nom | 105 Db | |
| Frequency Compensation | Yes | |
| Input Offset Voltage-Max | 3500 µV | |
| JESD-30 Code | S-PBGA-B8 | |
| JESD-609 Code | e1 | |
| Length | 1.42 Mm | |
| Low-Bias | Yes | |
| Low-Offset | No | |
| Micropower | Yes | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 2 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | VFBGA | |
| Package Equivalence Code | BGA8,3X3,20 | |
| Package Shape | Square | |
| Package Style | Grid Array, Very Thin Profile, Fine Pitch | |
| Packing Method | Tr, 7 Inch | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | No | |
| Programmable Power | No | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 0.645 Mm | |
| Slew Rate-Nom | 0.013 V/Us | |
| Supply Current-Max | 0.05 Ma | |
| Supply Voltage Limit-Max | 5.5 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Automotive | |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) | |
| Terminal Form | Ball | |
| Terminal Pitch | 0.5 Mm | |
| Terminal Position | Bottom | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 95 | |
| Voltage Gain-Min | 56200 | |
| Wideband | No | |
| Width | 1.42 Mm |
Alternate Parts for AD8506ACBZ-REEL7
This table gives cross-reference parts and alternative options found for AD8506ACBZ-REEL7. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AD8506ACBZ-REEL7, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| AD8506ACBZ-REEL | Rochester Electronics LLC | Check for Price | DUAL OP-AMP, 3500 uV OFFSET-MAX, 0.095 MHz BAND WIDTH, PBGA8, ROHS COMPLIANT, WLCSP-8 | AD8506ACBZ-REEL7 vs AD8506ACBZ-REEL |
AD8506ACBZ-REEL7 Frequently Asked Questions (FAQ)
-
A good PCB layout for the AD8506 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces. A 4-layer PCB with a dedicated analog ground plane is recommended.
-
The AD8506 requires a clean and stable power supply. Use a low-ESR capacitor (e.g., 10uF) to decouple the power pins, and consider adding a ferrite bead or a pi-filter to reduce noise. Ensure the power supply voltage is within the recommended range (2.7V to 5.5V).
-
The AD8506 can handle input voltages up to 5.5V, but the absolute maximum rating is 6.5V. Exceeding this voltage may damage the device. Ensure the input voltage is within the recommended range to maintain device reliability.
-
To optimize the AD8506 for low-power applications, consider reducing the clock frequency, using a lower supply voltage, and enabling the power-down mode when not in use. Additionally, use a low-power mode for the ADC, such as the 'Nap' mode, to reduce power consumption.
-
The recommended clock frequency for the AD8506 is between 1 MHz and 20 MHz. However, the optimal clock frequency depends on the specific application and the desired conversion rate. Consult the datasheet for more information on clock frequency selection.
