AD8604ARUZ-REEL Information
AD8604ARUZ-REEL by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| HSCHD02AR0001R | Amphenol Communications Solutions | HSC Right Angle plug,Tape and Reel,Black housing | |
| HSDNBSPPCB14WBA | Amphenol Communications Solutions | HSD Right plug,Tape and Reel,Cream white housing | |
| HSCHD02BR1001R | Amphenol Communications Solutions | HSC Right Angle plug,Tape and Reel,Blue housing |
Price & Stock for AD8604ARUZ-REEL
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK7625
|
Newark | Op-Amp, 8.4Mhz, -40 To 125Deg C, Tssop, No. Of Channels:4Channels, Gain Bandwidth Product:8.4Mhz, Supply Voltage Range:2.7V To 5.5V, Ic Case/Package:Tssop, No. Of Pins:14Pins, Amplifier Type:Cmos, Input Offset Voltage:80Μv Rohs Compliant: Yes |Analog Devices AD8604ARUZ-REEL RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 626 |
|
$1.7300 / $4.5800 | Buy Now |
|
|
Analog Devices Inc | QUAD, PRECISION CMOS RAIL-RAIL Min Qty: 1 Package Multiple: 2500 | 3126 |
|
$1.7250 / $4.8900 | Buy Now |
|
|
Bristol Electronics | 150 |
|
RFQ | ||
|
|
Rochester Electronics | DigiTrimRRIO Quad Op Amp with Very Low Offset Voltage RoHS: Compliant Status: Active Min Qty: 1 | 355 |
|
$1.4600 / $1.8200 | Buy Now |
|
|
Chip Stock | OpAmpQuadPrecisionAmplifierR-RI/O5.5V14-PinTSSOPT/R/ICOPAMPGP8.4MHZRRO14TSSOP | 10900 |
|
RFQ | |
|
|
Win Source Electronics | Op Amp Quad Precision Amplifier R-R I/O 5.5V 14-Pin TSSOP T/R / IC OPAMP GP 8.4MHZ RRO 14TSSOP | 9400 |
|
$1.0909 / $1.4090 | Buy Now |
US Tariff Estimator: AD8604ARUZ-REEL by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for AD8604ARUZ-REEL
AD8604ARUZ-REEL CAD Models
-

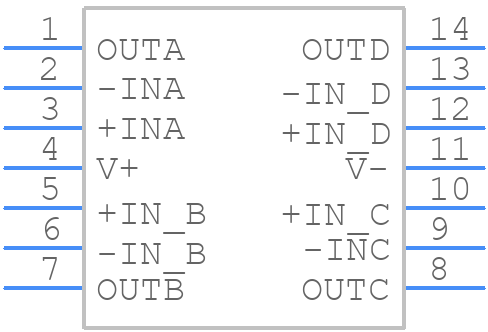

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
AD8604ARUZ-REEL Part Data Attributes
|
|
AD8604ARUZ-REEL
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD8604ARUZ-REEL
Analog Devices Inc
DigiTrim™ RRIO Quad Op Amp with Very Low Offset Voltage
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | TSSOP | |
| Pin Count | 14 | |
| Manufacturer Package Code | RU-14 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Amplifier Type | Operational Amplifier | |
| Architecture | Voltage-Feedback | |
| Average Bias Current-Max (IIB) | 0.001 µA | |
| Bias Current-Max (IIB) @25C | 0.00006 µA | |
| Common-mode Reject Ratio-Min | 68 Db | |
| Common-mode Reject Ratio-Nom | 83 Db | |
| Frequency Compensation | Yes | |
| Input Offset Voltage-Max | 2400 µV | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e3 | |
| Length | 5 Mm | |
| Low-Bias | Yes | |
| Low-Offset | No | |
| Micropower | No | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 4 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP14,.25 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Thin Profile, Shrink Pitch | |
| Packing Method | Tr | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | No | |
| Programmable Power | No | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.2 Mm | |
| Slew Rate-Nom | 5.2 V/Us | |
| Supply Current-Max | 6 Ma | |
| Supply Voltage Limit-Max | 6 V | |
| Supply Voltage-Nom (Vsup) | 3 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Automotive | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.65 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 8200 | |
| Voltage Gain-Min | 30000 | |
| Wideband | No | |
| Width | 4.4 Mm |
Alternate Parts for AD8604ARUZ-REEL
This table gives cross-reference parts and alternative options found for AD8604ARUZ-REEL. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AD8604ARUZ-REEL, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ISL28430FVZ-T7 | Renesas Electronics Corporation | Check for Price | Quad Micropower, Low Drift, RRIO Operational Amplifier, TSSOP, /Reel | AD8604ARUZ-REEL vs ISL28430FVZ-T7 |
| ISL28430FVZ-T | Renesas Electronics Corporation | Check for Price | Operational Amplifier, 4 Func, 55uV Offset-Max, CMOS, PDSO14 | AD8604ARUZ-REEL vs ISL28430FVZ-T |
| ISL28430CVZ | Renesas Electronics Corporation | Check for Price | Quad Micropower, Low Drift, RRIO Operational Amplifier, TSSOP, /Tube | AD8604ARUZ-REEL vs ISL28430CVZ |
| ISL28430FVZ | Renesas Electronics Corporation | Check for Price | Quad Micropower, Low Drift, RRIO Operational Amplifier, TSSOP, /Tube | AD8604ARUZ-REEL vs ISL28430FVZ |
| ISL28430FVZ-T13 | Renesas Electronics Corporation | Check for Price | Quad Micropower, Low Drift, RRIO Operational Amplifier, TSSOP, /Reel | AD8604ARUZ-REEL vs ISL28430FVZ-T13 |
| AD8604ARU | Analog Devices Inc | Check for Price | IC QUAD OP-AMP, 2400 uV OFFSET-MAX, 8.2 MHz BAND WIDTH, PDSO14, MO-153AB-1, TSSOP-14, Operational Amplifier | AD8604ARUZ-REEL vs AD8604ARU |
| ISL28430CVZ | Intersil Corporation | Check for Price | Quad Micropower, Low Drift, RRIO Operational Amplifier; SOIC14, TSSOP14; Temp Range: See Datasheet | AD8604ARUZ-REEL vs ISL28430CVZ |
| AD8604ARU-REEL | Analog Devices Inc | Check for Price | IC QUAD OP-AMP, 2400 uV OFFSET-MAX, 8.2 MHz BAND WIDTH, PDSO14, MO-153AB-1, TSSOP-14, Operational Amplifier | AD8604ARUZ-REEL vs AD8604ARU-REEL |
| ISL28430CVZ-T13 | Intersil Corporation | Check for Price | Quad Micropower, Low Drift, RRIO Operational Amplifier; SOIC14, TSSOP14; Temp Range: See Datasheet | AD8604ARUZ-REEL vs ISL28430CVZ-T13 |
| ISL28430CVZ-T7A | Renesas Electronics Corporation | Check for Price | Quad Micropower, Low Drift, RRIO Operational Amplifier, TSSOP, /Reel | AD8604ARUZ-REEL vs ISL28430CVZ-T7A |
AD8604ARUZ-REEL Frequently Asked Questions (FAQ)
-
A good PCB layout for the AD8604ARUZ-REEL involves keeping the input and output traces short and symmetrical, using a solid ground plane, and minimizing noise coupling. A 4-layer PCB with a dedicated analog ground plane is recommended.
-
To ensure stability, ensure that the output capacitor is properly sized, the input impedance is matched, and the gain is set correctly. Also, avoid capacitive loading on the output and ensure that the power supply is well-regulated.
-
The maximum power dissipation of the AD8604ARUZ-REEL is 1.4W. However, this can be affected by the ambient temperature, PCB layout, and thermal management. Ensure proper thermal design and heat sinking to prevent overheating.
-
The AD8604ARUZ-REEL is rated for operation from -40°C to 125°C. However, the device's performance may degrade at high temperatures. Ensure that the device is properly heat-sunk and that the ambient temperature is within the recommended range.
-
To protect the AD8604ARUZ-REEL from EMI, use a shielded enclosure, keep the device away from high-frequency sources, and use EMI filters on the input and output lines. Also, ensure that the PCB layout is designed to minimize radiation and susceptibility.
