AD9361BBCZ-CSL Information
AD9361BBCZ-CSL by Analog Devices Inc is an Other RF/Microwave Device.
Other RF/Microwave Devices are under the broader part category of RF and Microwave Components.
RF and Microwave Engineering focuses on the design and operation of devices that transmit or receive radio waves. The main distinction between RF and microwave engineering is their wavelength, which influences how energy is transmitted and used in various applications. Read more about RF and Microwave Components on our RF and Microwave part category page.
Price & Stock for AD9361BBCZ-CSL
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
505-AD9361BBCZ-CSL-ND
|
DigiKey | IC RF TXRX CELLULAR 144CSPBGA Min Qty: 1 Lead time: 33 Weeks Container: Tray | Temporarily Out of Stock |
|
$384.3900 | Buy Now |
|
|
Analog Devices Inc | ComSpace 2 rx by 2 tx int Freq Package Multiple: 1 | 1696 |
|
$307.5100 / $509.3900 | Buy Now |
|
DISTI #
AD9361BBCZ-CSL
|
Richardson RFPD | MULTI-FUNCTION TRANSCEIVER RoHS: Compliant Min Qty: 1 | 0 |
|
RFQ | |
|
|
Win Source Electronics | IC RF TXRX CELLULAR 144CSPBGA | 4250 |
|
$60.0000 / $72.5000 | Buy Now |
US Tariff Estimator: AD9361BBCZ-CSL by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for AD9361BBCZ-CSL
AD9361BBCZ-CSL CAD Models
-

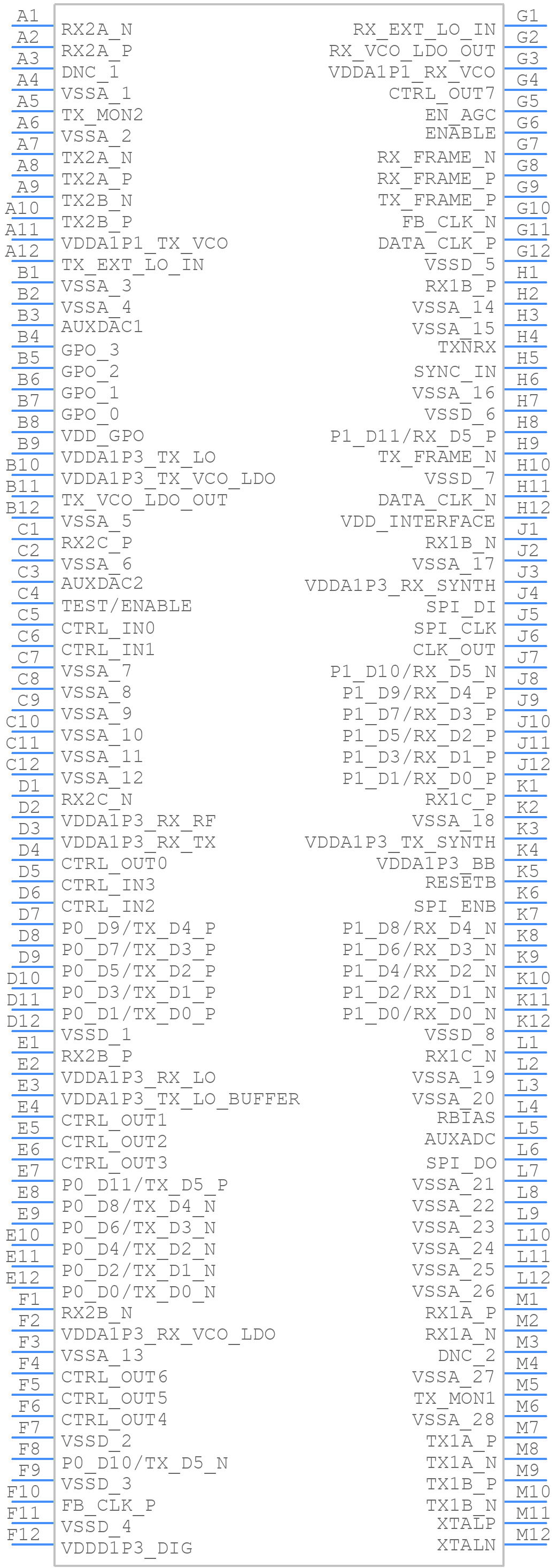

Part Symbol
-

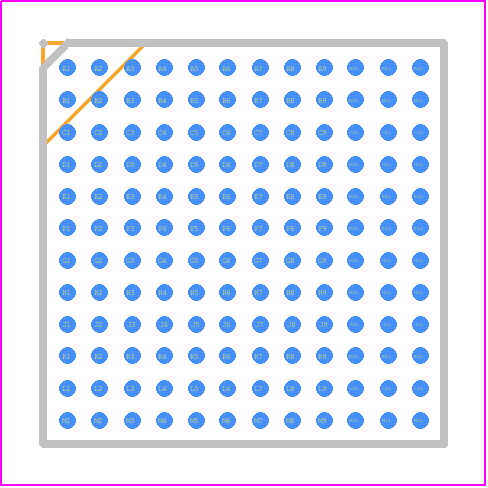

Footprint
-

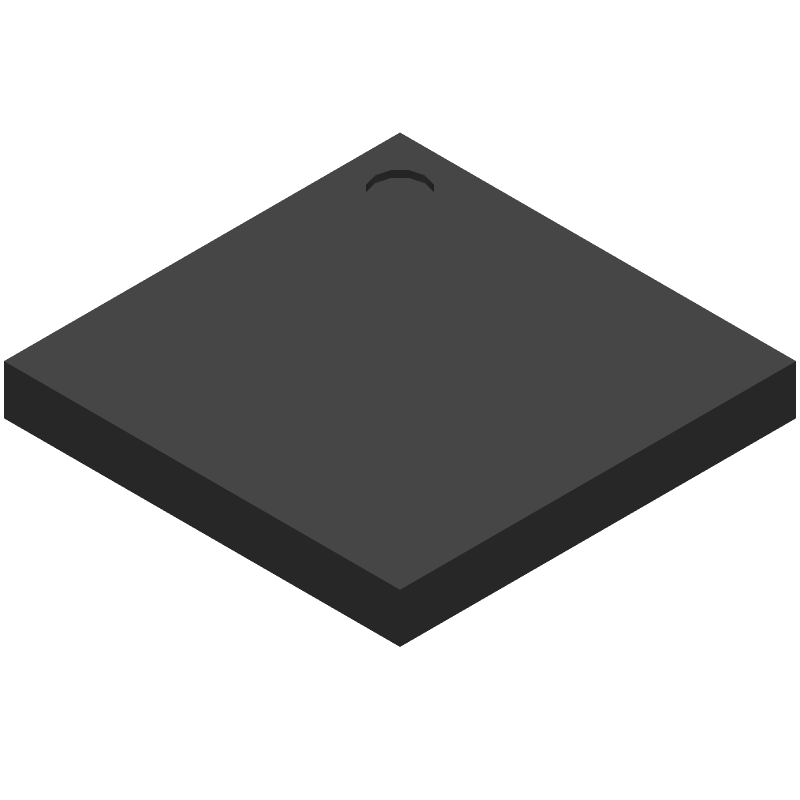

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
AD9361BBCZ-CSL Part Data Attributes
|
|
AD9361BBCZ-CSL
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD9361BBCZ-CSL
Analog Devices Inc
RF/Microwave Device
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Csp-144 | |
| Pin Count | 144 | |
| Manufacturer Package Code | BC-144-7 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | 5A991.B | |
| HTS Code | 8542.39.00.01 | |
| JESD-609 Code | e1 | |
| Terminal Finish | Tin/Silver/Copper (Sn96.5ag3.0cu0.5) |
AD9361BBCZ-CSL Frequently Asked Questions (FAQ)
-
A 4-layer PCB with a stack-up of signal-ground-power-ground is recommended. The top layer should be used for signal routing, the second layer for ground, the third layer for power, and the bottom layer for ground. This helps to minimize noise and ensure optimal performance.
-
Optimization involves selecting the right reference clock, setting the optimal gain and bandwidth, and configuring the digital interface. It's also important to ensure proper PCB layout, decoupling, and power supply design. Consult the AD9361BBCZ-CSL's datasheet and application notes for specific guidance.
-
The AD9361BBCZ-CSL has a maximum junction temperature of 125°C. Ensure good airflow, use a heat sink if necessary, and avoid blocking airflow around the device. Also, ensure that the PCB is designed to dissipate heat efficiently.
-
Use a logic analyzer or oscilloscope to verify the digital interface signals. Check the clock and data signal integrity, and ensure that the interface is properly configured. Consult the datasheet and application notes for specific troubleshooting guidance.
-
Use a shielded enclosure, ensure good PCB layout and grounding, and use EMI filters or shielding on cables. Also, ensure that the device is properly decoupled and that the power supply is well-regulated.
