Part Details for ADAU7002ACBZ-R7 by Analog Devices Inc
Results Overview of ADAU7002ACBZ-R7 by Analog Devices Inc
- Distributor Offerings: (22 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Automotive
Price & Stock for ADAU7002ACBZ-R7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51AK5771
|
Newark | Tdm Conversion Ic, 2 Channel, Wlcsp, Audio Control Type:Sample Rate Converter, Supply Voltage Range:1.62V To 3.6V, Control Interface:I2S, Tdm, Audio Ic Case Style:Wlcsp, No. Of Pins:8Pins, Operating Temperature Min:-40°C Rohs Compliant: Yes |Analog Devices ADAU7002ACBZ-R7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 510 |
|
$1.0900 / $3.0800 | Buy Now |
|
DISTI #
505-ADAU7002ACBZ-R7CT-ND
|
DigiKey | IC SAMPLE RATE CONVERTER 8WLCSP Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
4128 In Stock |
|
$1.0125 / $3.3400 | Buy Now |
|
DISTI #
584-ADAU7002ACBZ-R7
|
Mouser Electronics | Audio Sample Rate Converters PDM to I2S/TDM IC RoHS: Compliant | 1517 |
|
$1.0100 / $3.0800 | Buy Now |
|
DISTI #
V36:1790_06217520
|
Arrow Electronics | TDM Conversion 96ksps 8-Pin WLCSP T/R COO: Singapore RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 10 Weeks Date Code: 2523 | Americas - 12000 |
|
$1.1263 | Buy Now |
|
DISTI #
V72:2272_06217520
|
Arrow Electronics | TDM Conversion 96ksps 8-Pin WLCSP T/R COO: Singapore RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2327 Container: Cut Strips | Americas - 1702 |
|
$1.0820 / $1.4164 | Buy Now |
|
|
Analog Devices Inc | PDM to I2S/TDM IC Min Qty: 1 Package Multiple: 3000 | 826 |
|
$1.0125 / $3.3400 | Buy Now |
|
DISTI #
91937158
|
Verical | TDM Conversion 96ksps 8-Pin WLCSP T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Date Code: 2523 | Americas - 12000 |
|
$1.1263 | Buy Now |
|
DISTI #
71796789
|
Verical | TDM Conversion 96ksps 8-Pin WLCSP T/R RoHS: Compliant Min Qty: 6 Package Multiple: 1 Date Code: 2327 | Americas - 1702 |
|
$1.0820 / $1.4164 | Buy Now |
|
|
Bristol Electronics | 15 |
|
RFQ | ||
|
|
Quest Components | CONSUMER CIRCUIT, PBGA8 | 3992 |
|
$1.0836 / $2.8896 | Buy Now |
US Tariff Estimator: ADAU7002ACBZ-R7 by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for ADAU7002ACBZ-R7
ADAU7002ACBZ-R7 CAD Models
-

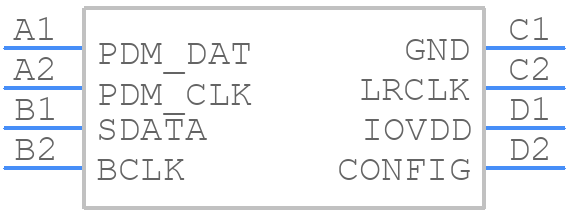

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
ADAU7002ACBZ-R7 Part Data Attributes
|
|
ADAU7002ACBZ-R7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADAU7002ACBZ-R7
Analog Devices Inc
Consumer Circuit, PBGA8
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Vfbga, Bga8,2x4,16 | |
| Pin Count | 8 | |
| Manufacturer Package Code | CB-8-6 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Consumer IC Type | Consumer Circuit | |
| JESD-30 Code | R-PBGA-B8 | |
| JESD-609 Code | e1 | |
| Length | 1.56 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | VFBGA | |
| Package Equivalence Code | BGA8,2X4,16 | |
| Package Shape | Rectangular | |
| Package Style | Grid Array, Very Thin Profile, Fine Pitch | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 0.56 Mm | |
| Surface Mount | Yes | |
| Temperature Grade | Industrial | |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) | |
| Terminal Form | Ball | |
| Terminal Pitch | 0.4 Mm | |
| Terminal Position | Bottom | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 0.76 Mm |
