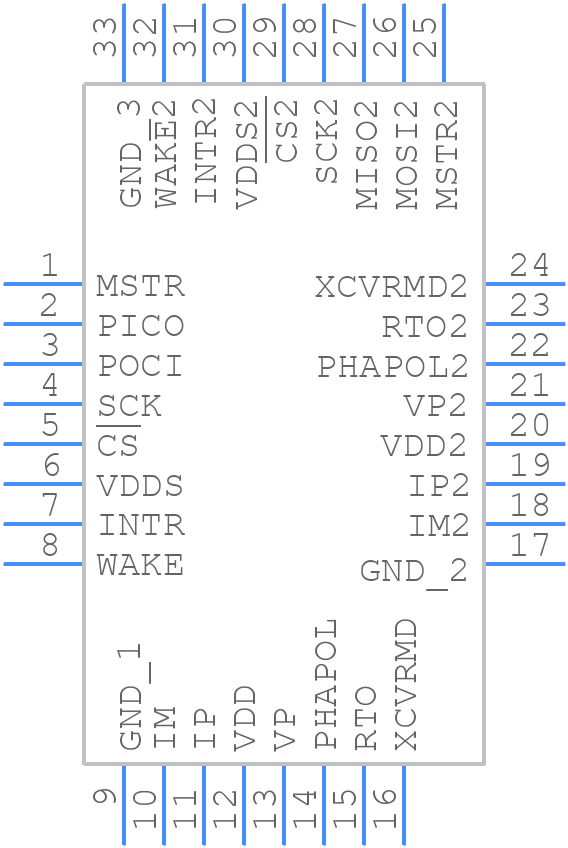

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADBMS6822CCSZ-RL by Analog Devices Inc
Results Overview of ADBMS6822CCSZ-RL by Analog Devices Inc
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Not Available)
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
ADBMS6822CCSZ-RL Information
ADBMS6822CCSZ-RL by Analog Devices Inc is an Other Interface IC.
Other Interface ICs are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for ADBMS6822CCSZ-RL
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
505-ADBMS6822CCSZ-RLTR-ND
|
DigiKey | DGTL ISOLTR 2CH SPI 32-VFDFN Min Qty: 5000 Lead time: 10 Weeks Container: Tape & Reel (TR) | Limited Supply - Call |
|
Buy Now | |
|
|
Analog Devices Inc | Dual isoSPI Transceiver for br Min Qty: 5000 Package Multiple: 1 | 0 |
|
$3.1900 / $4.3600 | Buy Now |
Part Details for ADBMS6822CCSZ-RL
ADBMS6822CCSZ-RL CAD Models
ADBMS6822CCSZ-RL Part Data Attributes
|
|
ADBMS6822CCSZ-RL
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADBMS6822CCSZ-RL
Analog Devices Inc
Interface Circuit
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Hwqccn, Lcc32,.2sq,20 | |
| Reach Compliance Code | Compliant | |
| Interface IC Type | Interface Circuit | |
| JESD-30 Code | S-PQCC-N32 | |
| Length | 5 Mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 2 | |
| Number of Terminals | 32 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | HWQCCN | |
| Package Equivalence Code | LCC32,.2SQ,20 | |
| Package Shape | Square | |
| Package Style | Chip Carrier, Heat Sink/Slug, Very Very Thin Profile | |
| Seated Height-Max | 0.8 Mm | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 3 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | Yes | |
| Terminal Form | No Lead | |
| Terminal Pitch | 0.5 Mm | |
| Terminal Position | Quad | |
| Width | 5 Mm |
