ADF04ST04 by:

SLIDE SWITCH,STRAIGHT,SPST,4,SURFACE MOUNT TERMINAL

Part Details for ADF04ST04 by TE Connectivity

Overview of ADF04ST04 by TE Connectivity

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Internet of Things (IoT) Industrial Automation Computing and Data Storage Aerospace and Defense Healthcare Electronic Manufacturing Telecommunications Automotive

Price & Stock for ADF04ST04

Part # Distributor Description Stock Price Buy
DISTI # 46Y9110
Newark Dip Switch, Spst, Dip, Smd, 100 Ma, 24 V Rohs Compliant: Yes |Alcoswitch Te Connectivity ADF04ST04 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 1 $1.8700
  • 10 $1.8200
  • 25 $1.6500
  • 50 $1.5400
  • 100 $1.4400
  • 500 $1.2100
$1.2100 / $1.8700 Buy Now
DISTI # 32M6574
Newark Dip Switch, Spst, 0.1A, 24V, 4Pos, Smd, No. Of Circuits:4Circuits, Switch Actuator Style:Flush Slide, Switch Mounting:Surface Mount, Contact Configuration:Spst, Contact Voltage Dc Max:24V, Contact Current Dc Max:100Ma Rohs Compliant: Yes |Alcoswitch Te Connectivity ADF04ST04 RoHS: Compliant Min Qty: 2100 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 1,000 $1.0600
  • 2,500 $1.0100
$1.0100 / $1.0600 Buy Now
DISTI # 2266-ADF04ST04-ND
DigiKey Slide Dip Switch, 4 Switches, SP Min Qty: 70 Container: Tube MARKETPLACE PRODUCT 28992
In Stock
  • 70 $1.1000
  • 350 $1.0600
  • 1,330 $1.0500
  • 2,100 $1.0300
  • 5,040 $0.8200
  • 10,010 $0.7200
  • 25,060 $0.6500
$0.6500 / $1.1000 Buy Now
DISTI # 506-ADF04ST04
Mouser Electronics DIP Switches / SIP Switches SPST 4P FLUSH SLIDE SMT DIP SWITCH RoHS: Compliant 62
  • 1 $1.6400
  • 10 $1.2300
  • 105 $1.0900
  • 280 $0.9800
  • 525 $0.9760
  • 1,015 $0.9610
  • 2,520 $0.9570
  • 5,005 $0.8110
  • 10,010 $0.6960
$0.6960 / $1.6400 Buy Now
Onlinecomponents.com Switch DIP OFF ON SPST 4 Flush Slide 0.1A 24VDC Gull Wing 2.54mm SMD T/R RoHS: Compliant 30707 In Stock
  • 35 $1.0960
  • 280 $0.8930
  • 525 $0.8840
  • 1,015 $0.8750
  • 2,520 $0.8670
  • 5,005 $0.8580
  • 7,525 $0.8000
  • 10,010 $0.6680
$0.6680 / $1.0960 Buy Now
DISTI # 1-1825059-7
TTI DIP Switches / SIP Switches SWITCH DIP SWITCH RoHS: Compliant pbFree: Pb-Free Min Qty: 2100 Package Multiple: 35 Container: Tube Americas - 0
  • 2,100 $0.9200
$0.9200 Buy Now
DISTI # ADF04ST04-TEC
TME ADF04ST04 Min Qty: 70 28992
  • 70 $1.0861
  • 420 $0.9477
  • 875 $0.9321
  • 1,715 $0.9164
  • 2,100 $0.9033
  • 5,005 $0.7206
  • 10,010 $0.6318
  • 25,025 $0.5718
$0.5718 / $1.0861 Buy Now
DISTI # 000000000002659134
Sager DIP Switches / SIP Switches SPST 4P FLUSH SLIDE SMT DIP SWITCH Min Qty: 2100 0
  • 2,100 $1.0600
  • 2,765 $1.0200
  • 8,610 $0.7912
  • 19,495 $0.6726
$0.6726 / $1.0600 Buy Now
Master Electronics Switch DIP OFF ON SPST 4 Flush Slide 0.1A 24VDC Gull Wing 2.54mm SMD T/R RoHS: Compliant 30707 In Stock
  • 35 $1.0960
  • 280 $0.8930
  • 525 $0.8840
  • 1,015 $0.8750
  • 2,520 $0.8670
  • 5,005 $0.8580
  • 7,525 $0.8000
  • 10,010 $0.6680
$0.6680 / $1.0960 Buy Now

Part Details for ADF04ST04

ADF04ST04 CAD Models

There are no models available for this part yet.

Sign in to request this CAD model.

Register or Sign In

ADF04ST04 Part Data Attributes

ADF04ST04 TE Connectivity
Buy Now Datasheet
Compare Parts:

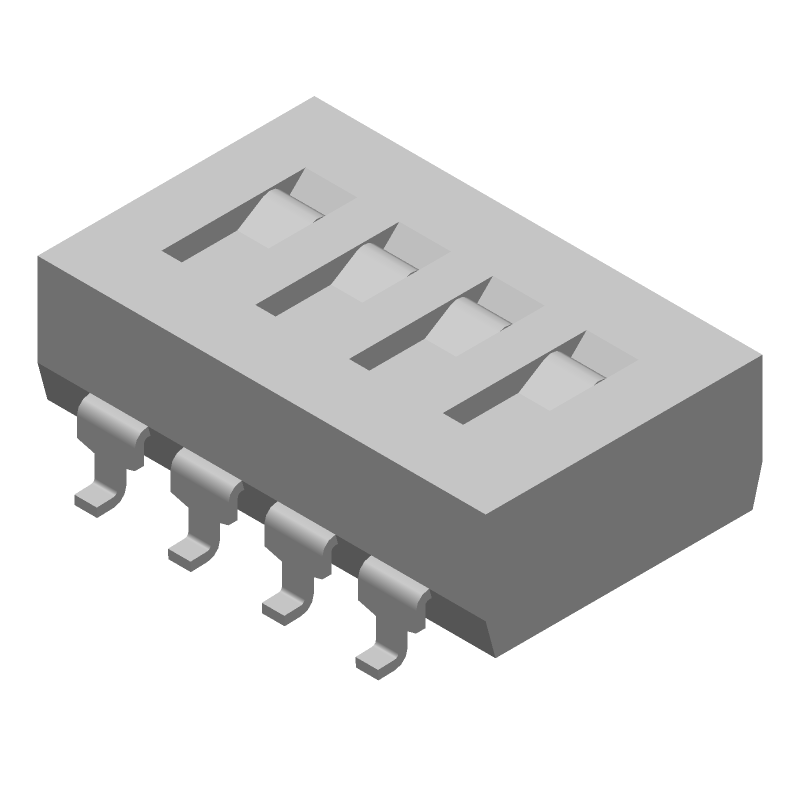

ADF04ST04 TE Connectivity SLIDE SWITCH,STRAIGHT,SPST,4,SURFACE MOUNT TERMINAL
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TE CONNECTIVITY LTD
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.50.90.65
Samacsys Manufacturer TE Connectivity
Actuator Color WHITE
Actuator Material POLYAMIDE6T
Actuator Type FLUSH TYPE
Additional Feature APPROVAL: UL
Body Breadth 7.5 mm
Body Color BLACK
Body Height 3.5 mm
Body Length or Diameter 12.14 mm
Center Contact Material COPPER ALLOY
Center Contact Plating GOLD
Contact Current(AC)-Max 1 A
Contact Current(DC)-Max 0.1 A
Contact (DC) Max Rating R Load 0.1A@24VDC
Contact Function OFF-ON
Contact Resistance 0.1 mΩ
Contact Voltage(DC)-Max 24 V
Dielectric Withstand Volts 300VAC V
Electrical Life 1000 Cycle(s)
End Contact Material COPPER ALLOY
End Contact Plating NICKEL
Housing Material POLYPHENYLENE SULPHIDE
Insulation Resistance 100000000 Ω
Insulator Material POLYPHENYLENE SULPHIDE
Mounting Feature PANEL MOUNT
Number of Positions 4
Number of Switch Sections 4
Operating Temperature-Max 85 °C
Operating Temperature-Min -30 °C
Packing Method TUBE
Sealing TAPE SEALED
Surface Mount NO
Switch Action LATCHED
Switch Function SPST
Switch Type SLIDE DIP SWITCH
Terminal Material COPPER ALLOY
Termination Type SOLDER
