Part Details for ADF7030-1BSTZN by Analog Devices Inc
Results Overview of ADF7030-1BSTZN by Analog Devices Inc
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Security and Surveillance
Space Technology
Environmental Monitoring
Internet of Things (IoT)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Communication and Networking
Automotive
Robotics and Drones
ADF7030-1BSTZN Information
ADF7030-1BSTZN by Analog Devices Inc is an Other Telecom IC.
Other Telecom ICs are under the broader part category of Telecommunication Circuits.
A telecommunications circuit transmits and receives information between points. Key components include transmitters, receivers, amplifiers, and multiplexers. Read more about Telecommunication Circuits on our Telecommunication Circuits part category page.
Price & Stock for ADF7030-1BSTZN
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
ADF7030-1BSTZN-ND
|
DigiKey | IC RF TXRX+MCU 802.15.4 48LQFP Min Qty: 1 Lead time: 10 Weeks Container: Tray |
221 In Stock |
|
$4.8460 / $6.4100 | Buy Now |
|
|
Analog Devices Inc | Sub GHz ISM band Transceiver Package Multiple: 250 | 295 |
|
$4.2642 / $6.4100 | Buy Now |
|
|
Rochester Electronics | Telecom Circuit, 1-Func, PQFP48 RoHS: Compliant Status: Active Min Qty: 1 | 65 |
|
$2.8700 / $3.5900 | Buy Now |
|
DISTI #
ADF7030-1BSTZN
|
Richardson RFPD | ISM TRANSCEIVER RoHS: Compliant Min Qty: 1 | 0 |
|
RFQ |
US Tariff Estimator: ADF7030-1BSTZN by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for ADF7030-1BSTZN
ADF7030-1BSTZN CAD Models
-

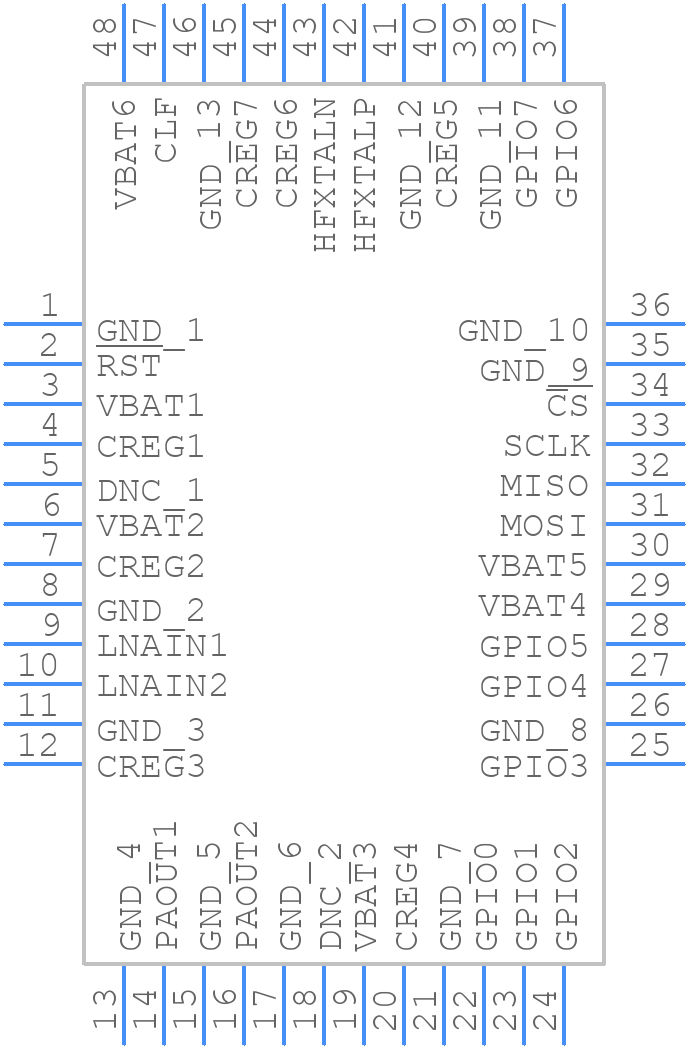

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
ADF7030-1BSTZN Part Data Attributes
|
|
ADF7030-1BSTZN
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADF7030-1BSTZN
Analog Devices Inc
Telecom Circuit, 1-Func, PQFP48
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Package Description | Lfqfp, | |
| Pin Count | 48 | |
| Manufacturer Package Code | ST-48 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | 5A992.C | |
| HTS Code | 8542.39.00.01 | |
| JESD-30 Code | S-PQFP-G48 | |
| JESD-609 Code | e3 | |
| Length | 7 Mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 48 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | LFQFP | |
| Package Shape | Square | |
| Package Style | Flatpack, Low Profile, Fine Pitch | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1.6 Mm | |
| Supply Voltage-Nom | 3 V | |
| Surface Mount | Yes | |
| Telecom IC Type | Telecom Circuit | |
| Temperature Grade | Industrial | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.5 Mm | |
| Terminal Position | Quad | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 7 Mm |
ADF7030-1BSTZN Frequently Asked Questions (FAQ)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces as short as possible and use 50-ohm microstrip lines. Avoid vias and right-angle bends in the RF path.
-
Follow the calibration procedure outlined in the datasheet, which involves setting the internal voltage regulator, configuring the PLL, and adjusting the transmitter and receiver gains. Use the ADI-provided software tools to simplify the calibration process.
-
The ADF7030-1BSTZN supports data rates up to 3.6 Mbps, depending on the modulation scheme and frequency band used. However, the actual data rate achieved may be limited by the system's overall design and implementation.
-
Use the device's built-in frequency synthesizer and PLL to generate the desired frequency hopping sequence. The ADF7030-1BSTZN supports up to 16 frequency channels, and the frequency hopping sequence can be programmed using the device's registers.
-
The typical current consumption of the ADF7030-1BSTZN is around 35 mA in transmit mode and 15 mA in receive mode, depending on the frequency band, data rate, and output power level used.
