ADG888YCPZ-REEL7 Information
ADG888YCPZ-REEL7 by Analog Devices Inc is a Multiplexer or Switch.
Multiplexers or Switches are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for ADG888YCPZ-REEL7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK5025
|
Newark | Analogue Switch, 2Ch, Dpdt, Lfcsp-Ep, Ic Function:Analog Switch, Power Supply Type:Single Supply, Supply Voltage Range:1.8V To 5.5V, Ic Case/Package:Lfcsp-Ep, No. Of Pins:16Pins, No. Of Channels:2Channels, On Resistance Typ:0.4Ohm Rohs Compliant: Yes |Analog Devices ADG888YCPZ-REEL7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 832 |
|
$2.6000 / $6.1600 | Buy Now |
|
|
Analog Devices Inc | 0.5 OHM DUAL DPDT 1.8V-5.5V Min Qty: 1 Package Multiple: 1500 | 1853 |
|
$1.9700 / $6.5900 | Buy Now |
|
|
Bristol Electronics | 535 |
|
RFQ | ||
|
|
Rochester Electronics | DPDT, 2 Func, 1 Channel, CMOS RoHS: Compliant Status: Active Min Qty: 1 | 345 |
|
$2.1900 / $2.7400 | Buy Now |
|
|
Ameya Holding Limited | IC SWITCH DUAL DPDT 16LFCSP | 538 |
|
RFQ |
US Tariff Estimator: ADG888YCPZ-REEL7 by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for ADG888YCPZ-REEL7
ADG888YCPZ-REEL7 CAD Models
-

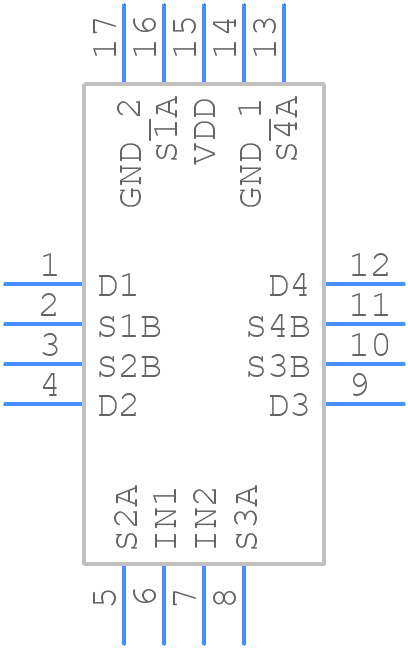

Part Symbol
-
