ADUM1447ARSZ-RL7 Information
ADUM1447ARSZ-RL7 by Analog Devices Inc is an Other Interface IC.
Other Interface ICs are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for ADUM1447ARSZ-RL7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
505-ADUM1447ARSZ-RL7TR-ND
|
DigiKey | DGTL ISOLTR 3.75KV 4CH GP 20SSOP Min Qty: 500 Lead time: 10 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$4.2125 | Buy Now |
|
DISTI #
584-ADUM1447ARSZ-RL7
|
Mouser Electronics | Digital Isolators Micro-power Quad-CH Digital Isolator RoHS: Compliant | 0 |
|
$4.2100 | Order Now |
|
DISTI #
V72:2272_06223768
|
Arrow Electronics | Digital Isolator CMOS 4-CH 2Mbps 20-Pin SSOP T/R COO: Malaysia RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 1737 Container: Cut Strips | Americas - 10 |
|
$0.8722 / $4.3345 | Buy Now |
|
|
Analog Devices Inc | Micro-power Quad-CH Digital Is Min Qty: 500 Package Multiple: 500 | 3500 |
|
$3.1900 / $9.8400 | Buy Now |
|
DISTI #
65246690
|
Verical | Digital Isolator CMOS 4-CH 2Mbps 20-Pin SSOP T/R RoHS: Compliant Min Qty: 500 Package Multiple: 500 | Americas - 3500 |
|
$4.1682 | Buy Now |
|
DISTI #
26903567
|
Verical | Digital Isolator CMOS 4-CH 2Mbps 20-Pin SSOP T/R RoHS: Compliant Min Qty: 2 Package Multiple: 1 Date Code: 1737 | Americas - 10 |
|
$0.8722 / $0.8871 | Buy Now |
|
|
Rochester Electronics | CMOS, PDSO20 RoHS: Compliant Status: Active Min Qty: 1 | 211 |
|
$3.5400 / $4.4300 | Buy Now |
|
DISTI #
V72:2272_06223768
|
Arrow Electronics | Digital Isolator CMOS 4-CH 2Mbps 20-Pin SSOP T/R COO: Malaysia RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 1737 Container: Cut Strips | Americas - 10 |
|
$0.8722 / $4.3345 | Buy Now |
|
DISTI #
65246690
|
Verical | Digital Isolator CMOS 4-CH 2Mbps 20-Pin SSOP T/R RoHS: Compliant Min Qty: 500 Package Multiple: 500 | Americas - 3500 |
|
$4.1682 | Buy Now |
|
DISTI #
26903567
|
Verical | Digital Isolator CMOS 4-CH 2Mbps 20-Pin SSOP T/R COO: Malaysia RoHS: Compliant Min Qty: 2 Package Multiple: 1 Date Code: 1737 | Americas - 10 |
|
$0.8722 / $0.8871 | Buy Now |
US Tariff Estimator: ADUM1447ARSZ-RL7 by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for ADUM1447ARSZ-RL7
ADUM1447ARSZ-RL7 CAD Models
-

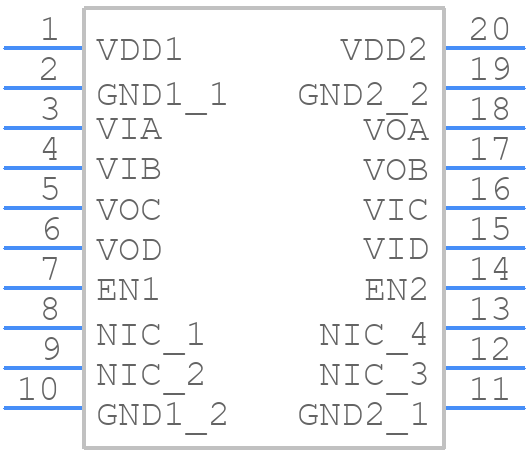

Part Symbol
-

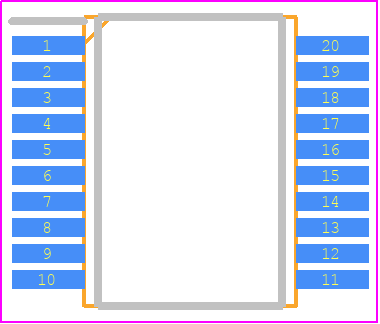

Footprint
-

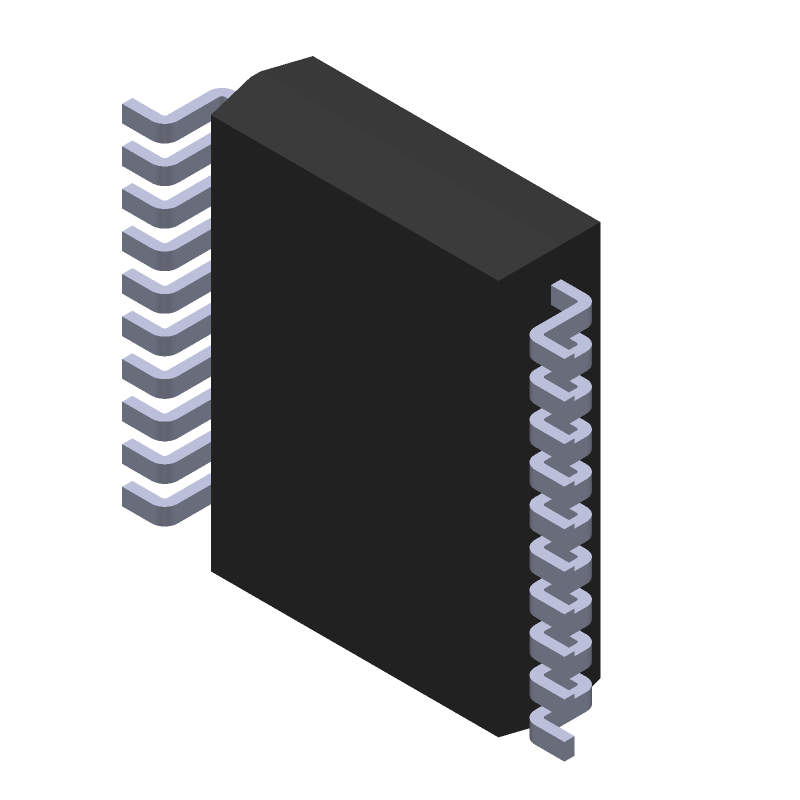

3D Model
