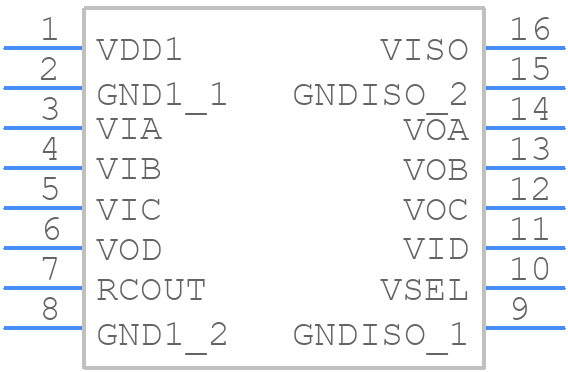

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADUM5401CRWZ-RL by Analog Devices Inc
Results Overview of ADUM5401CRWZ-RL by Analog Devices Inc
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Not Available)
- Number of Functional Equivalents: (1 option)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
ADUM5401CRWZ-RL Information
ADUM5401CRWZ-RL by Analog Devices Inc is an Other Signal Circuit.
Other Signal Circuits are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for ADUM5401CRWZ-RL
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
53AK9572
|
Newark | Digital Isolator, 4Ch, -40 To 105Deg C, No. Of Channels:4Channels, Supply Voltage Min:3V, Supply Voltage Max:5.5V, Ic Case/Package:Wsoic, No. Of Pins:16Pins, Data Rate:25Mbps, Input Level:Cmos, Output Level:Cmos, Product Range:- Rohs Compliant: Yes |Analog Devices ADUM5401CRWZ-RL RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 0 |
|
$8.9700 / $16.5900 | Buy Now |
|
|
Analog Devices Inc | Quad Channel Isolators w/Int D Min Qty: 1000 Package Multiple: 1000 | 0 |
|
$8.9750 / $16.5900 | Buy Now |
|
|
Bristol Electronics | Min Qty: 1 | 54 |
|
$6.7312 / $10.7700 | Buy Now |
|
DISTI #
ADUM5401CRWZ-RL
|
IBS Electronics | QUAD-CHANNEL, 2.5 KV ISOLATORS WITH INTEGRATED DC-TO-DC CONVERTER (3/1 CHANNEL DIRECTIONALITY) Min Qty: 1 Package Multiple: 1 | 1 |
|
$15.6601 | Buy Now |
|
DISTI #
ADUM5401CRWZ-RL
|
Richardson RFPD | DIGITAL ISOLATOR RoHS: Compliant Min Qty: 1000 | 0 |
|
$9.3900 | Buy Now |
|
|
Chip Stock | Quad-Channel,2.5kVIsolatorswithIntegratedDC-to-DCConverter(3/1channeldirectionality) | 9640 |
|
RFQ | |
|
|
Win Source Electronics | Digital Isolator CMOS 4-CH 25Mbps 16-Pin SOIC W T/R / DGTL ISO 2.5KV GEN PURP 16SOIC | 7250 |
|
$5.1429 / $6.6428 | Buy Now |
Part Details for ADUM5401CRWZ-RL
ADUM5401CRWZ-RL CAD Models
ADUM5401CRWZ-RL Part Data Attributes
|
|
ADUM5401CRWZ-RL
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADUM5401CRWZ-RL
Analog Devices Inc
Quad-Channel, 2.5 kV Isolators with Integrated DC-to-DC Converter (3/1 channel directionality)
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SOIC | |
| Package Description | Sop, Sop16,.4 | |
| Pin Count | 16 | |
| Manufacturer Package Code | RW-16 | |
| Reach Compliance Code | Unknown | |
| Additional Feature | Also Operates On 5 Volt Supply | |
| Analog IC - Other Type | Analog Circuit | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e3 | |
| Length | 10.3 Mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Equivalence Code | SOP16,.4 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supplies | 3.3/5 V | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 2.65 Mm | |
| Supply Voltage-Max (Vsup) | 3.6 V | |
| Supply Voltage-Min (Vsup) | 3 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | Yes | |
| Temperature Grade | Industrial | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Width | 7.5 Mm |
Alternate Parts for ADUM5401CRWZ-RL
This table gives cross-reference parts and alternative options found for ADUM5401CRWZ-RL. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADUM5401CRWZ-RL, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ADUM5401ARWZ-RL | Analog Devices Inc | $9.1876 | Quad-Channel, 2.5 kV Isolators with Integrated DC-to-DC Converter (3/1 channel directionality) | ADUM5401CRWZ-RL vs ADUM5401ARWZ-RL |
