AMEL10-12S277HAVZ-ST Information
AMEL10-12S277HAVZ-ST by Aimtec is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for AMEL10-12S277HAVZ-ST
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
25AK2686
|
Newark | Power Supply, Ac-Dc, 12V, 0.83A, Power Supply Applications:Ite, No. Of Outputs:1 Output, Output Power Max:10W, Output Voltage - Output 1:12V, Output Current - Output 1:830Ma, Output Voltage - Output 2:-, Output Current - Output 2:- Rohs Compliant: Yes |Aimtec AMEL10-12S277HAVZ-ST RoHS: Compliant Min Qty: 48 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
Buy Now |
Part Details for AMEL10-12S277HAVZ-ST

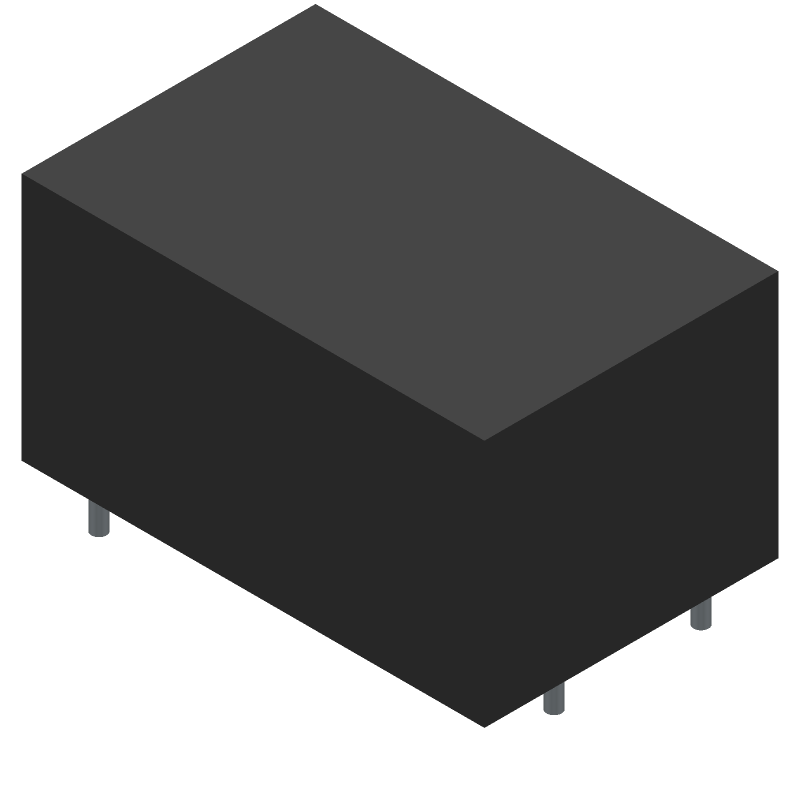

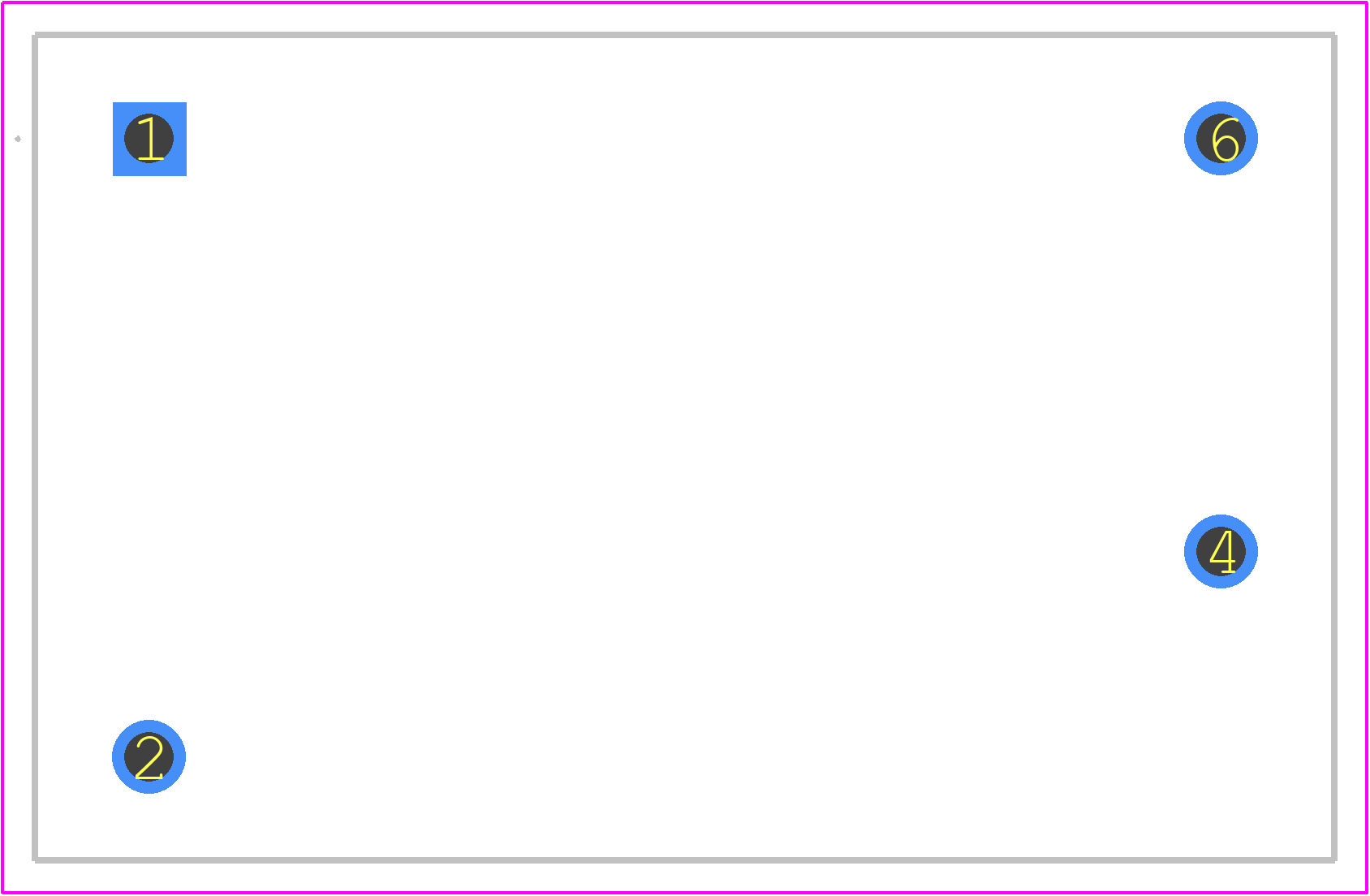

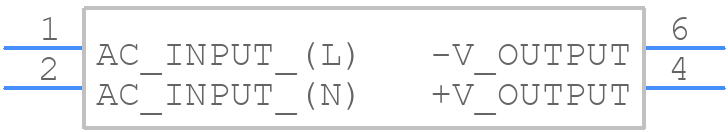

AMEL10-12S277HAVZ-ST CAD Models
AMEL10-12S277HAVZ-ST Part Data Attributes
|
|
AMEL10-12S277HAVZ-ST
Aimtec
Buy Now
Datasheet
|
Compare Parts:
AMEL10-12S277HAVZ-ST
Aimtec
AC-DC Regulated Power Supply Module, 1 Output, 10W, Hybrid
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Dma, Module,4/6lead,1.3 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 9 Weeks | |
| Additional Feature | Also Has Dc Supply Voltage 100-430 Vdc | |
| Analog IC - Other Type | Ac-Dc Regulated Power Supply Module | |
| Approvals | En, Iec, Ul | |
| Efficiency (Main Output) | 84% | |
| Input Voltage-Max | 305 V | |
| Input Voltage-Min | 85 V | |
| Input Voltage-Nom | 115 V | |
| JESD-30 Code | R-PDMA-P4 | |
| Length | 40 Mm | |
| Line Regulation-Max | 0.5% | |
| Load Regulation-Max | 1% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 4 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 0.83 A | |
| Output Voltage-Max | 12.24 V | |
| Output Voltage-Min | 11.76 V | |
| Output Voltage-Nom | 12 V | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | DMA | |
| Package Equivalence Code | MODULE,4/6LEAD,1.3 | |
| Package Shape | Rectangular | |
| Package Style | Microelectronic Assembly | |
| Peak Reflow Temperature (Cel) | Not Specified | |
| Protections | Over Current, Over Voltage, Short Circuit | |
| Ripple Voltage (Main Out) | 0.053025 Vrms | |
| Screening Level | En/Iec/Ul 62368-1 | |
| Seated Height-Max | 21.5 Mm | |
| Surface Mount | No | |
| Technology | Hybrid | |
| Terminal Form | Pin/Peg | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | Not Specified | |
| Total Power Output-Max | 10 W | |
| Trim/Adjustable Output | No | |
| Warm-up Time | 1 S | |
| Width | 25.4 Mm |
