ATF2500C-15JU by Microchip Technology Inc is a Programmable Logic Device.
Programmable Logic Devices are under the broader part category of Programmable Logic Devices.
Programmable Logic Devices (PLDs) are reconfigurable digital components that can be customized for different applications, offering flexibility and improved performance over fixed logic devices. Read more about Programmable Logic Devices on our Programmable Logic part category page.
Price & Stock for ATF2500C-15JU
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
68T2472
|
Newark | Cpld, Eeprom, 24 Macrocell, 15Ns, Plcc-44, Cpld Type:Eeprom, No. Of Macrocells:24Macrocells, No.of User I/Os:24I/O S, Ic Case/Package:Lcc, No. Of Pins:44Pins, Speed Grade:15, Process Technology:Cmos, Ic Mounting:Surface Mount Rohs Compliant: Yes |Microchip ATF2500C-15JU RoHS: Compliant Min Qty: 81 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$8.2500 | Buy Now |
|
DISTI #
ATF2500C-15JU-ND
|
DigiKey | IC CPLD 24MC 15NS 44PLCC Min Qty: 1 Lead time: 8 Weeks Container: Tube |
526 In Stock |
|
$8.2500 / $9.4300 | Buy Now |
|
DISTI #
ATF2500C-15JU
|
Avnet Americas | CPLD ATF2500C Family 2.5K Gates 24 Macro Cells 71MHz EECMOS Technology 5V 44-Pin PLCC - Rail/Tube (Alt: ATF2500C-15JU) COO: Thailand RoHS: Compliant Min Qty: 27 Package Multiple: 1 Lead time: 8 Weeks, 0 Days Container: Tube | 5 |
|
$8.2500 / $8.8000 | Buy Now |
|
DISTI #
556-AF2500C15JU
|
Mouser Electronics | CPLD - Complex Programmable Logic Devices 15 ns 24 I/O Pins 24 macorcells 48 reg RoHS: Compliant | 712 |
|
$8.2500 / $9.4300 | Buy Now |
|
DISTI #
VBF:5286_07145903
|
Arrow Electronics | CPLD ATF2500CFamily 2.5KGates 24Macro Cells 71MHz 5V 44-Pin PLCC Tube COO: Thailand RoHS: Compliant Min Qty: 27 Package Multiple: 27 Lead time: 8 Weeks Date Code: 2411 | Americas - 293 |
|
$8.4670 | Buy Now |
|
DISTI #
V36:1790_07145903
|
Arrow Electronics | CPLD ATF2500CFamily 2.5KGates 24Macro Cells 71MHz 5V 44-Pin PLCC Tube COO: Thailand RoHS: Compliant Min Qty: 27 Package Multiple: 27 Lead time: 8 Weeks Date Code: 2427 | Americas - 81 |
|
$7.8910 | Buy Now |
|
DISTI #
ATF2500C-15JU
|
Microchip Technology Inc | 15NS, 44 PLCC, IND TEMP, GREEN, PLCC, Projected EOL: 2040-11-01 COO: Taiwan, Thailand ECCN: EAR99 RoHS: Compliant Lead time: 8 Weeks, 0 Days Container: Tube | In Stock: 2464 and Alternates Available |
|
$6.8100 / $9.4300 | Buy Now |
|
DISTI #
70123978
|
RS | ATF2500C-15JU, CPLD ATF2500C 24 CELLS,24 I/O,15NS, ISP, MAXIMUM OF 5V 44-PIN PLCC Min Qty: 540 Package Multiple: 1 Container: Bulk | 0 |
|
$6.4600 | RFQ |
|
|
Future Electronics | CPLD - Complex Programmable Logic Devices RoHS: Compliant pbFree: Yes Min Qty: 81 Package Multiple: 27 Lead time: 8 Weeks Container: Tray | 0Tray |
|
$8.8000 / $8.9300 | Buy Now |
|
|
Onlinecomponents.com | CPLD ATF2500C Family 2.5K Gates 24 Macro Cells 71MHz 5V 44-Pin PLCC Tube COO: Taiwan RoHS: Compliant |
20 In Stock |
|
$7.9100 / $9.8500 | Buy Now |
US Tariff Estimator: ATF2500C-15JU by Microchip Technology Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for ATF2500C-15JU
ATF2500C-15JU CAD Models
-

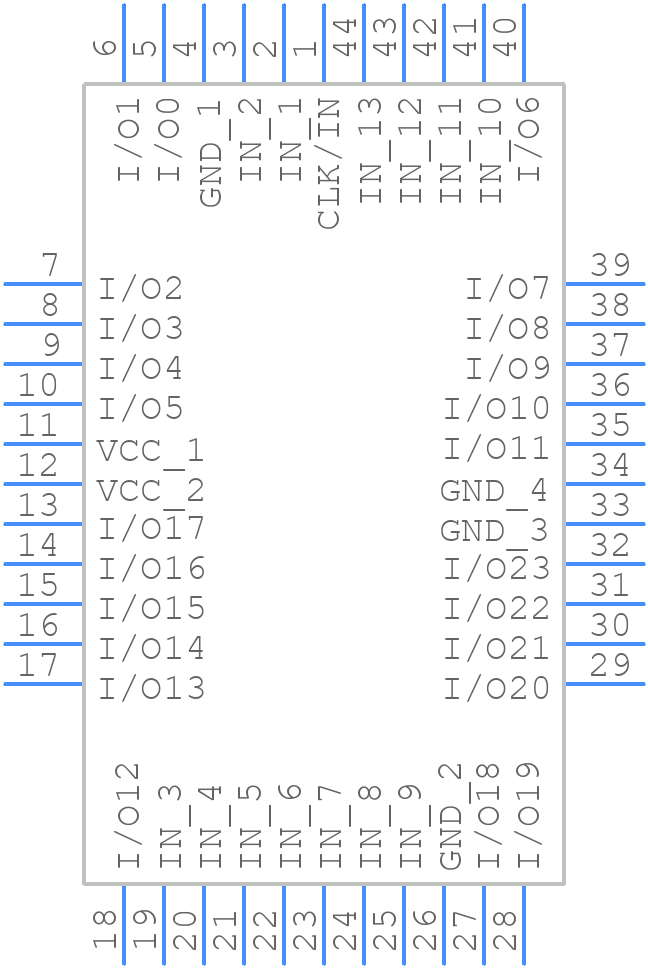

Part Symbol
-

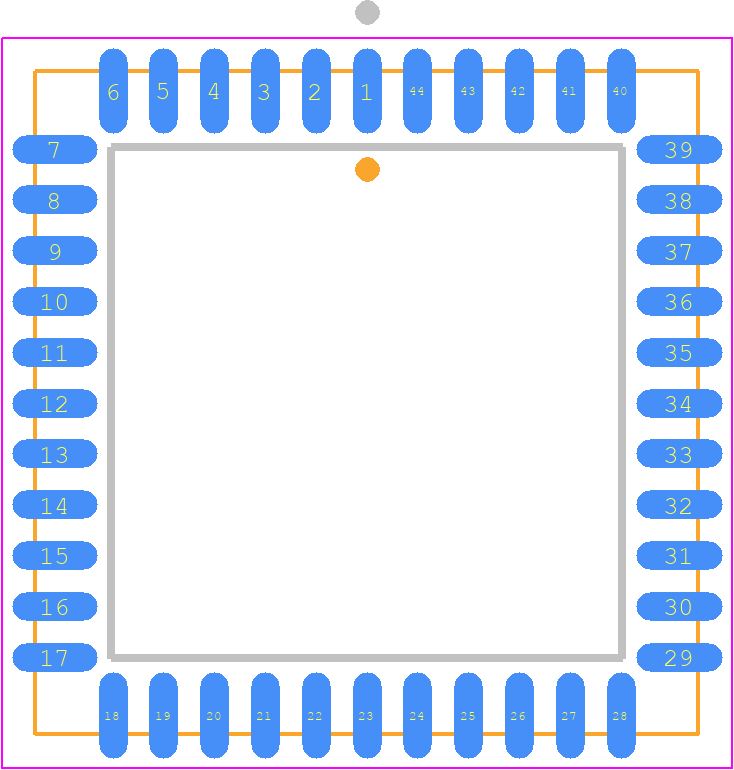

Footprint
-
