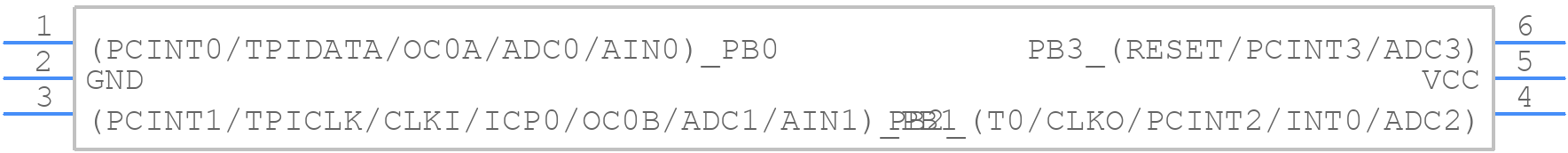

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ATTINY4-TSHR by Microchip Technology Inc
Overview of ATTINY4-TSHR by Microchip Technology Inc
- Distributor Offerings: (21 listings)
- Number of FFF Equivalents: (4 crosses)
- CAD Models: (Available)
- Number of Functional Equivalents: (4 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Security and Surveillance
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Agriculture Technology
Robotics and Drones
Price & Stock for ATTINY4-TSHR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
12T1337
|
Newark | Mcu, 8Bit, 12Mhz, Sot-23-6, Product Range:Avr Attiny Family Attiny4 Series Microcontrollers, Cpu Speed:12Mhz, Program Memory Size:512Byte, Ram Memory Size:30Byte, No. Of Pins:6Pins, Mcu Case Style:Sot-23, No. Of I/O S:4I/O S, Rohs Compliant: Yes |Microchip ATTINY4-TSHR Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 14927 |
|
$0.4160 / $0.4580 | Buy Now |
|
DISTI #
68T3674
|
Newark | Mcu, 8Bit, 12Mhz, Sot-23-6, Product Range:Avr Attiny Family Attiny4 Series Microcontrollers, Device Core:Avr, Operating Frequency Max:12Mhz, Program Memory Size:512Byte, No. Of Pins:6Pins, Ic Case/Package:Sot-23, Interfaces:- Rohs Compliant: Yes |Microchip ATTINY4-TSHR Min Qty: 4500 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.3810 | Buy Now |
|
DISTI #
50AH3259
|
Newark | Mcu, 8Bit, 12Mhz, Sot-23-6, Product Range:Avr Attiny Family Attiny4 Series Microcontrollers, Device Core:Avr, Operating Frequency Max:12Mhz, Program Memory Size:512Byte, No. Of Pins:6Pins, Ic Case/Package:Sot-23, Interfaces:- Rohs Compliant: Yes |Microchip ATTINY4-TSHR Min Qty: 4500 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 0 |
|
$0.3830 | Buy Now |
|
DISTI #
ATTINY4-TSHRCT-ND
|
DigiKey | IC MCU 8BIT 512B FLASH SOT23-6 Min Qty: 1 Lead time: 5 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
88502 In Stock |
|
$0.3500 / $0.4400 | Buy Now |
|
DISTI #
ATTINY4-TSHR
|
Avnet Americas | MCU 8-bit ATtiny AVR RISC 512byte Flash 2.5V/3.3V/5V 6-Pin SOT-23 - Tape and Reel (Alt: ATTINY4-TSHR) RoHS: Compliant Min Qty: 4500 Package Multiple: 4500 Lead time: 5 Weeks, 0 Days Container: Reel | 0 |
|
$0.3500 / $0.4400 | Buy Now |
|
DISTI #
556-ATTINY4-TSHR
|
Mouser Electronics | 8-bit Microcontrollers - MCU 512B FLASH 32B SRAM TIMER 12MHz RoHS: Compliant | 0 |
|
Order Now | |
|
DISTI #
V72:2272_07157331
|
Arrow Electronics | MCU 8-bit AVR RISC 512B Flash 2.5V/3.3V/5V 6-Pin SOT-23 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 5 Weeks Date Code: 2243 Container: Cut Strips | Americas - 6190 |
|
$0.3975 / $0.4516 | Buy Now |
|
DISTI #
E54:1762_01131777
|
Arrow Electronics | MCU 8-bit AVR RISC 512B Flash 2.5V/3.3V/5V 6-Pin SOT-23 T/R RoHS: Compliant Min Qty: 4500 Package Multiple: 4500 Lead time: 5 Weeks Date Code: 2339 | Europe - 4500 |
|
$0.3675 | Buy Now |
|
DISTI #
ATTINY4-TSHR
|
Microchip Technology Inc | 12MHz, SOT-23, NiPdAu, Ind Temp, Green, Projected EOL: 2039-11-04 RoHS: Compliant pbFree: Yes |
166 Alternates Available |
|
$0.3200 / $0.4400 | Buy Now |
|
|
Future Electronics | ATtiny Series 512 B Flash 32 B SRAM 12 MHz 8-Bit Microcontroller - SOT-23-6 RoHS: Compliant pbFree: Yes Min Qty: 4500 Package Multiple: 4500 Lead time: 4 Weeks Container: Reel | 0Reel |
|
$0.3850 | Buy Now |
Part Details for ATTINY4-TSHR
ATTINY4-TSHR CAD Models
ATTINY4-TSHR Part Data Attributes
|
|
ATTINY4-TSHR
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
ATTINY4-TSHR
Microchip Technology Inc
IC MCU 8BIT 512B FLASH SOT23
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Package Description | SOT-23, 6 PIN | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.31.00.01 | |
| Factory Lead Time | 4 Weeks | |
| Samacsys Manufacturer | Microchip | |
| Has ADC | YES | |
| Additional Feature | OPERATES AT 2.7 V MIN SUPPLY AT 8 MHz AND 1.8 V MIN AT 4 MHz | |
| Address Bus Width | ||
| Bit Size | 8 | |
| Boundary Scan | NO | |
| CPU Family | AVR RISC | |
| Clock Frequency-Max | 12 MHz | |
| DAC Channels | NO | |
| DMA Channels | NO | |
| External Data Bus Width | ||
| Format | FIXED POINT | |
| Integrated Cache | NO | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e3 | |
| Length | 2.9 mm | |
| Low Power Mode | YES | |
| Moisture Sensitivity Level | 1 | |
| Number of I/O Lines | 4 | |
| Number of Terminals | 6 | |
| Number of Timers | 1 | |
| On Chip Data RAM Width | 8 | |
| On Chip Program ROM Width | 16 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LSSOP | |
| Package Equivalence Code | TSOP6,.11,37 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| RAM (bytes) | 32 | |
| ROM (words) | 256 | |
| ROM Programmability | FLASH | |
| Screening Level | TS 16949 | |
| Seated Height-Max | 1.45 mm | |
| Speed | 12 MHz | |
| Supply Current-Max | 4 mA | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 4.5 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Width | 1.6 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
