B340AF-13 Information
B340AF-13 by Diodes Incorporated is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for B340AF-13
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
15AC8161
|
Newark | Schottky Rect, Single, 40V, 3A, Smaf, Repetitive Reverse Voltage Vrrm Max:40V, Forward Current If(Av):3A, Diode Configuration:Single, Diode Case Style:Smaf, No. Of Pins:2Pins, Forward Voltage Vf Max:500Mv, Forward Surge Current Ifsm Rohs Compliant: Yes |Diodes Inc. B340AF-13 RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 4518 |
|
$0.0940 / $0.2900 | Buy Now |
|
DISTI #
B340AF-13
|
Avnet Americas | - Tape and Reel (Alt: B340AF-13) COO: Taiwan (Province of China) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 12 Weeks, 0 Days Container: Reel | 10000 |
|
$0.0535 / $0.0579 | Buy Now |
|
|
Bristol Electronics | 205 |
|
RFQ | ||
|
DISTI #
B340AF-13
|
Avnet Asia | (Alt: B340AF-13) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 12 Weeks, 0 Days | 0 |
|
RFQ | |
|
DISTI #
B340AF-13
|
Avnet Silica | (Alt: B340AF-13) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 14 Weeks, 0 Days | Silica - 10000 |
|
Buy Now | |
|
|
LCSC | 80A 1 Independent 40V 500mV3A 3A DO-214AD Single Diodes RoHS | 9275 |
|
$0.0516 / $0.1111 | Buy Now |
|
|
New Advantage Corporation | SCHOTTKY RECTIFIER SMAF T&R 10K RoHS: Compliant Min Qty: 1 Package Multiple: 10000 | 50000 |
|
$0.0669 / $0.0725 | Buy Now |
|
|
Win Source Electronics | DIODE SCHOTTKY 40V 3A SMAF | 138138 |
|
$0.0557 / $0.0835 | Buy Now |
US Tariff Estimator: B340AF-13 by Diodes Incorporated
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for B340AF-13
B340AF-13 CAD Models
-
Part Symbol
-
Footprint
-

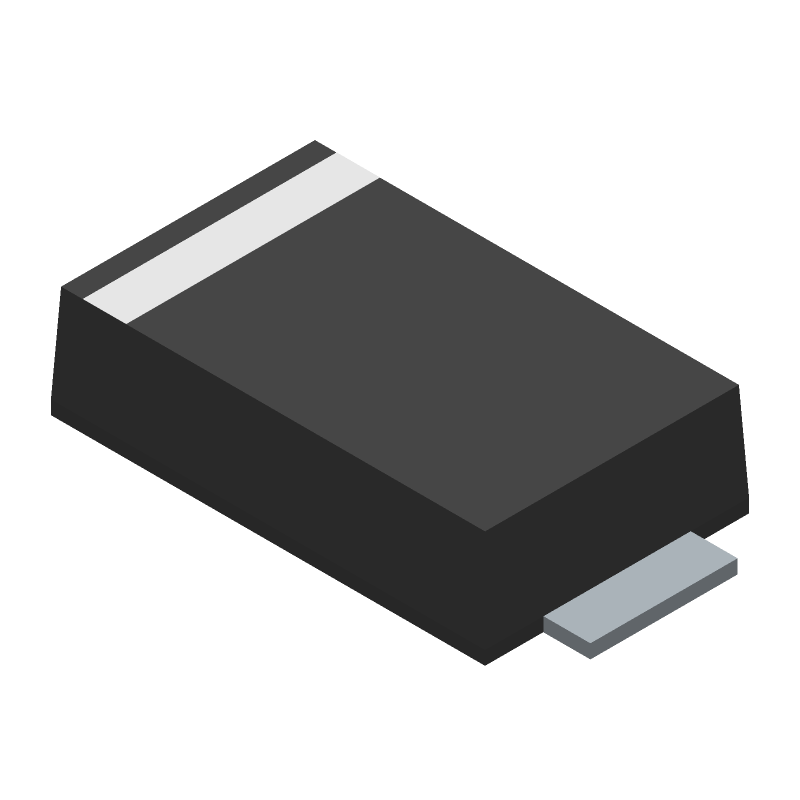

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
B340AF-13 Part Data Attributes
|
|
B340AF-13
Diodes Incorporated
Buy Now
Datasheet
|
Compare Parts:
B340AF-13
Diodes Incorporated
Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 40V V(RRM), Silicon, SMAF, 2 PIN
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Smaf, 2 Pin | |
| Reach Compliance Code | Not Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Factory Lead Time | 12 Weeks | |
| Application | Efficiency | |
| Configuration | Single | |
| Diode Element Material | Silicon | |
| Diode Type | Rectifier Diode | |
| Forward Voltage-Max (VF) | 0.5 V | |
| JESD-30 Code | R-PDSO-F2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 80 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 3 A | |
| Package Body Material | Plastic/Epoxy | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 260 | |
| Reference Standard | Ul Recognized | |
| Rep Pk Reverse Voltage-Max | 40 V | |
| Reverse Current-Max | 200 µA | |
| Surface Mount | Yes | |
| Technology | Schottky | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | Flat | |
| Terminal Position | Dual |
