BAS21LT1G Information
BAS21LT1G by onsemi is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for BAS21LT1G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
58M3977
|
Newark | Small Signal Diode, Single, 250 V, 200 Ma, 1.25 V, 50 Ns, 625 Ma Rohs Compliant: Yes |Onsemi BAS21LT1G RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 28248 |
|
$0.0340 / $0.1040 | Buy Now |
|
DISTI #
94W7501
|
Newark | Small Signal Diode, Single, 250 V, 200 Ma, 1.25 V, 50 Ns, 625 Ma Rohs Compliant: Yes |Onsemi BAS21LT1G RoHS: Compliant Min Qty: 30000 Package Multiple: 1 Date Code: 1 Container: Reel | 27000 |
|
$0.0170 | Buy Now |
|
DISTI #
88H4546
|
Newark | Switch Diode, 250V, 200Ma, Sot-23, Diode Configuration:Single, Repetitive Peak Reverse Voltage:250V, Average Forward Current:200Ma, Forward Voltage Max:1.25V, Reverse Recovery Time:50Ns, Forward Surge Current:625Ma, No. Of Pins:3Pinsrohs Compliant: Yes |Onsemi BAS21LT1G RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 967 |
|
$0.0160 | Buy Now |
|
DISTI #
88H4546
|
Avnet Americas | - Product that comes on tape, but is not reeled (Alt: 88H4546) COO: China RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Ammo Pack | 997 Partner Stock |
|
$0.0290 | Buy Now |
|
DISTI #
BAS21LT1G
|
Avnet Americas | - Tape and Reel (Alt: BAS21LT1G) COO: China RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 10 Weeks, 0 Days Container: Reel | 0 |
|
$0.0083 / $0.0088 | Buy Now |
|
DISTI #
58M3977
|
Avnet Americas | - Product that comes on tape, but is not reeled (Alt: 58M3977) COO: China RoHS: Compliant Min Qty: 5 Package Multiple: 5 Container: Ammo Pack | 0 |
|
$0.0390 / $0.1040 | Buy Now |
|
DISTI #
70100182
|
RS | ON SEMI BAS21LT1G, SMT SWITCHING DIODE, 250V 200MA, 50NS, 3-PIN SOT-23 Min Qty: 1 Package Multiple: 1 Container: Bulk | 0 |
|
$0.0210 | RFQ |
|
|
Bristol Electronics | 137107 |
|
RFQ | ||
|
|
Bristol Electronics | Min Qty: 52 | 48085 |
|
$0.0078 / $0.0979 | Buy Now |
|
|
Bristol Electronics | 10341 |
|
RFQ |
US Tariff Estimator: BAS21LT1G by onsemi
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for BAS21LT1G
BAS21LT1G CAD Models
-

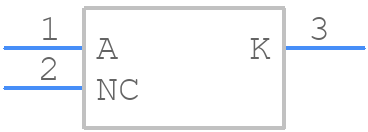

Part Symbol
-
