BAV199-TP Information
BAV199-TP by Micro Commercial Components is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for BAV199-TP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
21AM9375
|
Newark | Small Signal Diode, 0.215A, 75V, Sot-23 Rohs Compliant: Yes |Micro Commercial Components BAV199-TP RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 10130 |
|
$0.0590 / $0.2180 | Buy Now |
|
|
Bristol Electronics | Min Qty: 45 | 44935 |
|
$0.0152 / $0.1125 | Buy Now |
|
DISTI #
BAV199-TP
|
TME | Diode: switching, SMD, 70V, 215mA, 3us, SOT23, Ufmax: 1.25V Min Qty: 1 | 3050 |
|
$0.0228 / $0.1062 | Buy Now |
|
|
New Advantage Corporation | BAV199 Series 70 V 215 mA Surface Mount Switching Diode - SOT-23-3 RoHS: Compliant Min Qty: 1 Package Multiple: 3000 | 63000 |
|
$0.1002 / $0.1085 | Buy Now |
US Tariff Estimator: BAV199-TP by Micro Commercial Components
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for BAV199-TP
BAV199-TP CAD Models
-

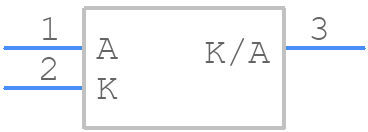

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
BAV199-TP Part Data Attributes
|
|
BAV199-TP
Micro Commercial Components
Buy Now
Datasheet
|
Compare Parts:
BAV199-TP
Micro Commercial Components
Rectifier Diode, 2 Element, 0.215A, Silicon, ROHS COMPLIANT, PLASTIC PACKAGE-3
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICRO COMMERCIAL COMPONENTS CORP | |
| Package Description | PACKAGE-3 | |
| Pin Count | 3 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.70 | |
| Samacsys Manufacturer | MCC | |
| Application | GENERAL PURPOSE | |
| Configuration | SERIES CONNECTED, CENTER TAP, 2 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1.25 V | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 2 | |
| Number of Phases | 1 | |
| Number of Terminals | 3 | |
| Output Current-Max | 0.215 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 70 V | |
| Reverse Current-Max | 0.005 µA | |
| Reverse Recovery Time-Max | 3 µs | |
| Surface Mount | YES | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 10 |
Alternate Parts for BAV199-TP
This table gives cross-reference parts and alternative options found for BAV199-TP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of BAV199-TP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| BAV199,215 | NXP Semiconductors | Check for Price | BAV199 - Low-leakage double diode TO-236 3-Pin | BAV199-TP vs BAV199,215 |
| BAV199,235 | NXP Semiconductors | Check for Price | BAV199 - Low-leakage double diode TO-236 3-Pin | BAV199-TP vs BAV199,235 |
| BAV199T-13 | Diodes Incorporated | Check for Price | Rectifier Diode, 2 Element, 0.215A, 85V V(RRM), Silicon, ULTRA SMALL, PLASTIC PACKAGE-3 | BAV199-TP vs BAV199T-13 |
| BAV199 | Nexperia | Check for Price | Rectifier Diode | BAV199-TP vs BAV199 |
| BAV199-13 | Diodes Incorporated | Check for Price | Rectifier Diode, 2 Element, 0.16A, 85V V(RRM), Silicon, PLASTIC PACKAGE-3 | BAV199-TP vs BAV199-13 |
| BAV199/T3 | Nexperia | Check for Price | Rectifier Diode | BAV199-TP vs BAV199/T3 |
| BAV199 | NXP Semiconductors | Check for Price | DIODE 0.16 A, 85 V, 2 ELEMENT, SILICON, SIGNAL DIODE, TO-236AB, PLASTIC PACKAGE-3, Signal Diode | BAV199-TP vs BAV199 |
| BAV199L | Motorola Mobility LLC | Check for Price | 0.215A, 70V, 2 ELEMENT, SILICON, SIGNAL DIODE, TO-236AB, CASE 318-07, 3 PIN | BAV199-TP vs BAV199L |
BAV199-TP Frequently Asked Questions (FAQ)
-
The recommended storage temperature for BAV199-TP is -40°C to +125°C.
-
Yes, BAV199-TP is suitable for high-reliability applications due to its high-quality manufacturing process and rigorous testing.
-
Yes, BAV199-TP can be used in switching power supplies due to its high switching speed and low capacitance.
-
The maximum allowable power dissipation for BAV199-TP is 500 mW.
-
Yes, BAV199-TP is compatible with lead-free soldering processes.
