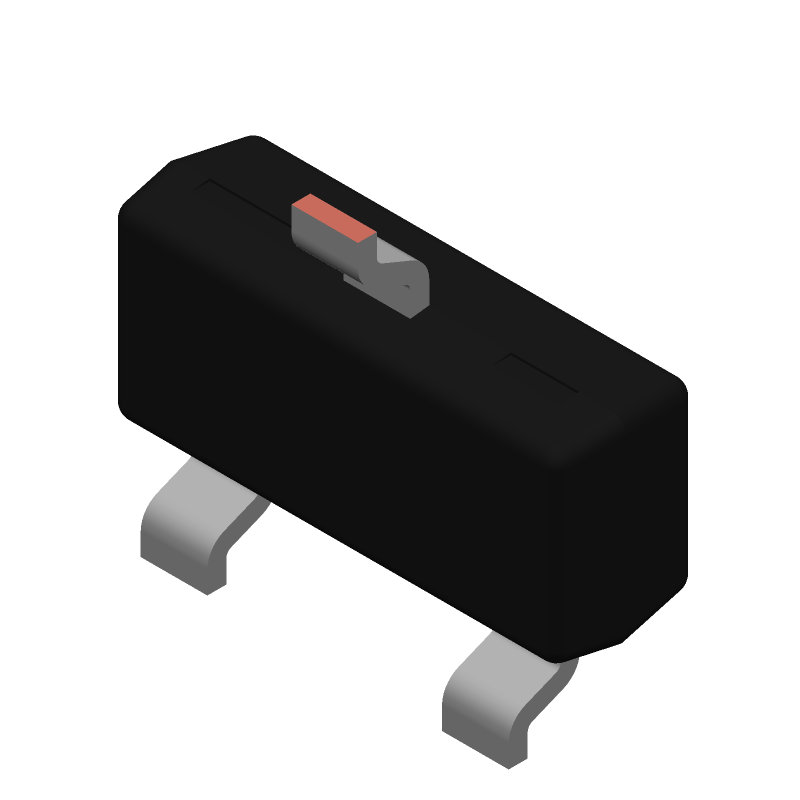

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BFS19,215 by Nexperia
Results Overview of BFS19,215 by Nexperia
- Distributor Offerings: (15 listings)
- Number of FFF Equivalents: (1 replacement)
- Tariff Estimator: (Not Available)
- Number of Functional Equivalents: (7 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
BFS19,215 Information
BFS19,215 by Nexperia is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for BFS19,215
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
05AC7891
|
Newark | Transistor, Bipol, Npn, 20V, Sot-23-3, Transistor Polarity:Npn, Collector Emitter Voltage V(Br)Ceo:20V, Transition Frequency Ft:260Mhz, Power Dissipation Pd:250Mw, Dc Collector Current:30Ma, Dc Current Gain Hfe:65Hfe, Transistor Caserohs Compliant: Yes |Nexperia BFS19,215 RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1990 |
|
$0.3570 | Buy Now |
|
DISTI #
93X3937
|
Newark | Transistor, Bipol, Npn, 20V, To-236Ab-3, Transistor Polarity:Npn, Collector Emitter Voltage Max:20V, Continuous Collector Current:30Ma, Power Dissipation:250Mw, Transistor Mounting:Surface Mount, No. Of Pins:3Pins, Product Range:- Rohs Compliant: Yes |Nexperia BFS19,215 RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 1 Container: Tape & Reel | 0 |
|
$0.2030 | Buy Now |
|
DISTI #
1727-5421-1-ND
|
DigiKey | TRANS NPN 20V 0.03A TO-236AB Min Qty: 1 Lead time: 26 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
600 In Stock |
|
$0.1041 / $0.2700 | Buy Now |
|
DISTI #
BFS19,215
|
Avnet Americas | Trans GP BJT NPN 20V 0.03A 3-Pin TO-236AB T/R - Tape and Reel (Alt: BFS19,215) COO: China RoHS: Compliant Min Qty: 9000 Package Multiple: 3000 Lead time: 26 Weeks, 0 Days Container: Tape & Reel | 0 |
|
$0.1005 / $0.1077 | Buy Now |
|
DISTI #
771-BFS19215
|
Mouser Electronics | RF Bipolar Transistors BFS19/SOT23/TO-236AB RoHS: Compliant | 3731 |
|
$0.1130 / $0.2900 | Buy Now |
|
|
Quest Components | SMALL SIGNAL BIPOLAR TRANSISTOR, 0.03A I(C), 20V V(BR)CEO, 1-ELEMENT, NPN, SILICON, TO-236AB | 1764 |
|
$0.0452 / $0.1004 | Buy Now |
|
|
Rochester Electronics | Small Signal Bipolar Transistor, 0.03A I(C), 20V V(BR)CEO, 1-Element, NPN, Silicon, TO-236AB RoHS: Compliant Status: Active Min Qty: 1 | 500 |
|
$0.1295 / $0.2089 | Buy Now |
|
DISTI #
BFS19.215
|
TME | Transistor: NPN, bipolar, 20V, 30mA, 250mW, SOT23,TO236AB Min Qty: 1 | 0 |
|
$0.1310 / $0.1900 | RFQ |
|
|
Chip Stock | SmallSignalBipolarTransistor,0.03AI(C),20VV(BR)CEO,1-Element,NPN,Silicon,TO-236AB | 143000 |
|
RFQ | |
|
|
Greenchips | Date Code: 19+ | 6000 |
|
RFQ |
Part Details for BFS19,215
BFS19,215 CAD Models
BFS19,215 Part Data Attributes
|
|
BFS19,215
Nexperia
Buy Now
Datasheet
|
Compare Parts:
BFS19,215
Nexperia
BFS19 - NPN medium frequency transistor@en-us TO-236 3-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | TO-236 | |
| Package Description | Plastic Package-3 | |
| Pin Count | 3 | |
| Manufacturer Package Code | SOT23 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 8 Weeks | |
| Date Of Intro | 1997-09-01 | |
| Collector Current-Max (IC) | 0.03 A | |
| Collector-Emitter Voltage-Max | 20 V | |
| Configuration | Single | |
| DC Current Gain-Min (hFE) | 65 | |
| JEDEC-95 Code | TO-236AB | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | Npn | |
| Qualification Status | Not Qualified | |
| Reference Standard | Iec-134 | |
| Surface Mount | Yes | |
| Terminal Finish | Tin | |
| Terminal Form | Gull Wing | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Element Material | Silicon | |
| Transition Frequency-Nom (fT) | 260 Mhz |
