BQ33100PWR Information
BQ33100PWR by Texas Instruments is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| BQ33100PWR | Texas Instruments | fully integrated, single chip, super capacitor health monitor 24-TSSOP -40 to 85 |
Price & Stock for BQ33100PWR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-28422-1-ND
|
DigiKey | IC BATT SUPERCAP 2-5C 24TSSOP Min Qty: 1 Lead time: 18 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
732 In Stock |
|
$5.5158 / $9.3600 | Buy Now |
|
DISTI #
595-BQ33100PWR
|
Mouser Electronics | Battery Management Fully Integrated Sgl Chip Super Cap Mgr A 595-BQ33100PW RoHS: Compliant | 767 |
|
$5.4900 / $9.3600 | Buy Now |
|
|
Bristol Electronics | Min Qty: 1 | 5 |
|
$5.8240 / $8.9600 | Buy Now |
|
|
Quest Components | 4 |
|
$6.0000 / $12.0000 | Buy Now | |
|
|
LCSC | Supercapacitor SMBus TSSOP-24 Battery Management RoHS | 62 |
|
$6.5069 / $9.0359 | Buy Now |
|
|
Sense Electronic Company Limited | TSSOP | 1992 |
|
RFQ |
US Tariff Estimator: BQ33100PWR by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for BQ33100PWR
BQ33100PWR CAD Models
-

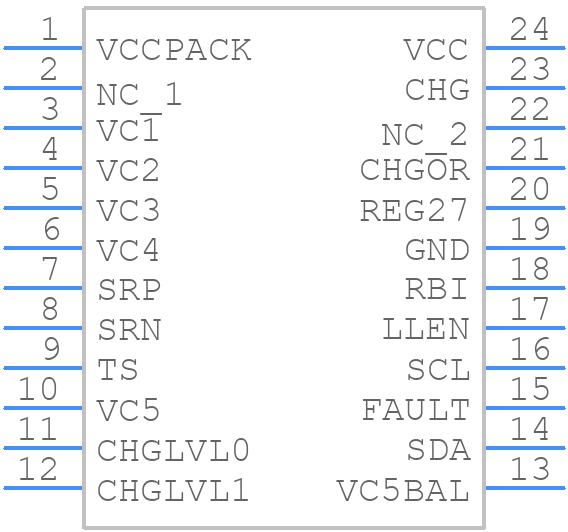

Part Symbol
-

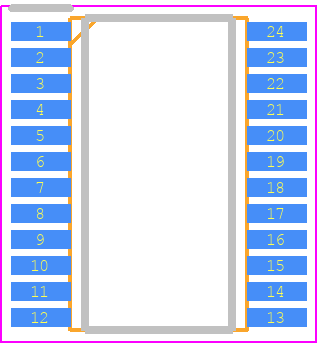

Footprint
-

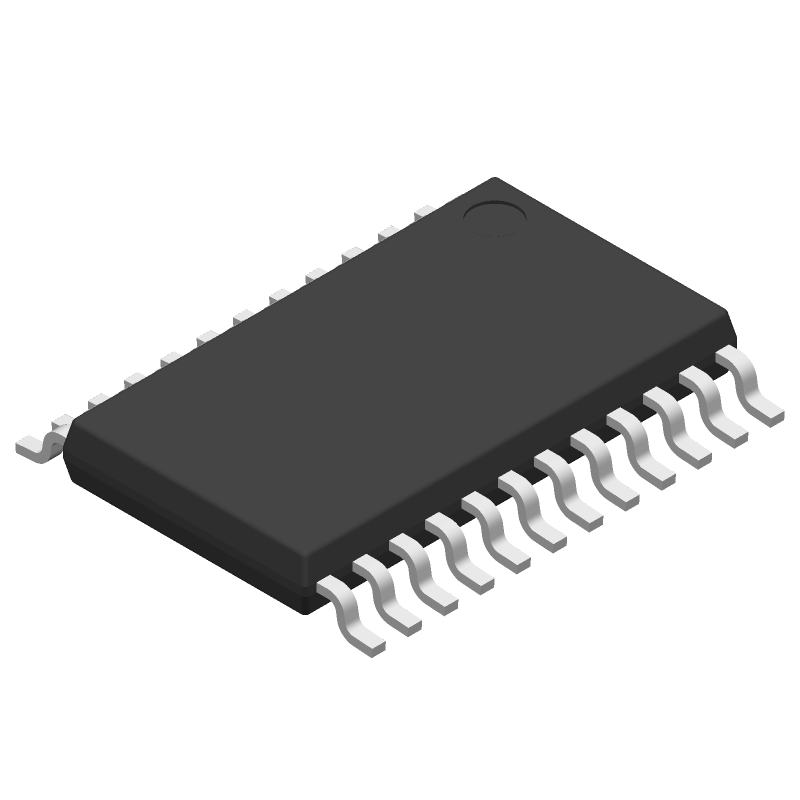

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
BQ33100PWR Part Data Attributes
|
|
BQ33100PWR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
BQ33100PWR
Texas Instruments
Power Supply Management Circuit, Fixed, 1 Channel, PDSO24
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | TSSOP | |
| Package Description | Tssop, Tssop24,.25 | |
| Pin Count | 24 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.90 | |
| Adjustable Threshold | No | |
| Analog IC - Other Type | Power Supply Management Circuit | |
| JESD-30 Code | R-PDSO-G24 | |
| JESD-609 Code | e4 | |
| Length | 7.8 Mm | |
| Moisture Sensitivity Level | 2 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 24 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP24,.25 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Thin Profile, Shrink Pitch | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.2 Mm | |
| Supply Voltage-Max (Vsup) | 25 V | |
| Supply Voltage-Min (Vsup) | 3.8 V | |
| Supply Voltage-Nom (Vsup) | 14.4 V | |
| Surface Mount | Yes | |
| Temperature Grade | Industrial | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.65 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4.4 Mm |
