Part Details for BU7245HFV-TR by ROHM Semiconductor
Results Overview of BU7245HFV-TR by ROHM Semiconductor
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
BU7245HFV-TR Information
BU7245HFV-TR by ROHM Semiconductor is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for BU7245HFV-TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
28AK6823
|
Newark | Opamp, 70Khz, -40 To 85Deg C Rohs Compliant: Yes |Rohm BU7245HFV-TR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 0 |
|
$0.5400 / $1.2200 | Buy Now |
|
DISTI #
BU7245HFVCT-ND
|
DigiKey | IC OPAMP GP 1 CIRCUIT 5HVSOF Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.5598 / $1.2200 | Buy Now |
|
DISTI #
755-BU7245HFV-TR
|
Mouser Electronics | Operational Amplifiers - Op Amps IC CMOS OP AMP RoHS: Compliant | 1 |
|
$0.5450 / $1.2200 | Buy Now |
|
|
Future Electronics | General Purpose Amplifier 1 Circuit Rail-to-Rail HVSOF5 RoHS: Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Lead time: 10 Weeks Container: Reel | 0Reel |
|
$0.3950 / $0.4050 | Buy Now |
|
DISTI #
90730507
|
Verical | Op Amp Single Ultra Low Power Amplifier R-R I/O 5.5V 5-Pin HVSOF EP T/R RoHS: Compliant Min Qty: 164 Package Multiple: 1 Date Code: 2005 | Americas - 600 |
|
$0.7040 / $1.2100 | Buy Now |
|
DISTI #
86988322
|
Verical | Op Amp Single Ultra Low Power Amplifier R-R I/O 5.5V 5-Pin HVSOF EP T/R RoHS: Compliant Min Qty: 50 Package Multiple: 1 | Americas - 50 |
|
$1.4497 | Buy Now |
|
DISTI #
BU7245HFV-TR
|
TTI | Operational Amplifiers - Op Amps IC CMOS OP AMP RoHS: Compliant pbFree: Pb-Free Min Qty: 3000 Package Multiple: 3000 Container: Reel | Americas - 0 |
|
$0.4330 / $0.4500 | Buy Now |
|
DISTI #
BU7245HFV-TR
|
TME | IC: comparator, Cmp: 1, SMT, HVSOF5, reel,tape, Iio: 1pA, IB: 1pA Min Qty: 1 | 0 |
|
$0.3830 / $0.7800 | RFQ |
|
|
Ameya Holding Limited | Min Qty: 1 | 100-Authorized Distributor |
|
$0.4660 / $1.1500 | Buy Now |
US Tariff Estimator: BU7245HFV-TR by ROHM Semiconductor
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for BU7245HFV-TR
BU7245HFV-TR CAD Models
-

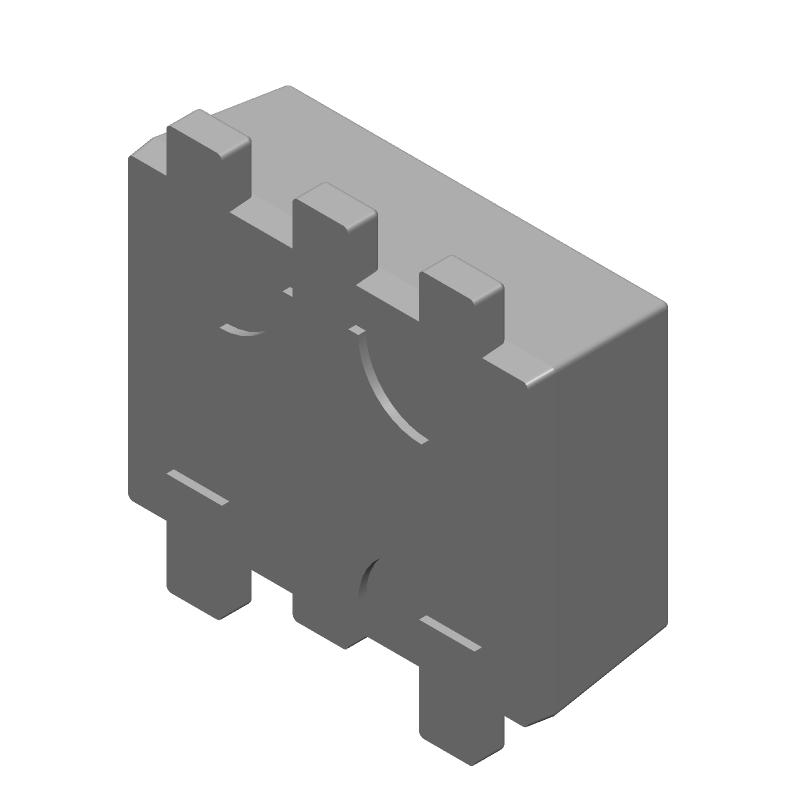

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
BU7245HFV-TR Part Data Attributes
|
|
BU7245HFV-TR
ROHM Semiconductor
Buy Now
Datasheet
|
Compare Parts:
BU7245HFV-TR
ROHM Semiconductor
Operational Amplifier, 1 Func, 8500uV Offset-Max, CMOS, PDSO5, HVSOF-5
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SOF | |
| Package Description | Hvsof-5 | |
| Pin Count | 5 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Factory Lead Time | 10 Weeks | |
| Amplifier Type | Operational Amplifier | |
| Architecture | Voltage-Feedback | |
| Common-mode Reject Ratio-Nom | 60 Db | |
| Frequency Compensation | Yes | |
| Input Offset Voltage-Max | 8500 µV | |
| JESD-30 Code | R-PDSO-F5 | |
| Length | 1.6 Mm | |
| Low-Bias | Yes | |
| Low-Offset | No | |
| Micropower | Yes | |
| Number of Functions | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | VSOF | |
| Package Equivalence Code | FL5/6,.047,20 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Very Thin Profile | |
| Packing Method | Tape And Reel | |
| Peak Reflow Temperature (Cel) | Not Specified | |
| Power | No | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 0.6 Mm | |
| Slew Rate-Nom | 35000 V/Us | |
| Supply Current-Max | 0.02 Ma | |
| Supply Voltage Limit-Max | 7 V | |
| Supply Voltage-Nom (Vsup) | 3 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Industrial | |
| Terminal Form | Flat | |
| Terminal Pitch | 0.5 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | Not Specified | |
| Unity Gain BW-Nom | 70 | |
| Voltage Gain-Min | 1000 | |
| Wideband | No | |
| Width | 1.2 Mm |
BU7245HFV-TR Frequently Asked Questions (FAQ)
-
A 2-layer or 4-layer PCB with a thermal relief pattern and a solid ground plane is recommended. Ensure that the thermal pad is connected to a large copper area to dissipate heat efficiently.
-
Use a capacitor with a low ESR (Equivalent Series Resistance) and ensure that the capacitor is placed close to the IC. Also, add a 1-2 ohm resistor in series with the capacitor to prevent oscillation.
-
The maximum allowed voltage on the EN pin is 6V. Exceeding this voltage may damage the IC.
-
Yes, but ensure that the junction temperature (Tj) does not exceed 150°C. Use a heat sink or thermal management system to keep the temperature within the recommended range.
-
Check the input voltage, output voltage, and feedback voltage. Ensure that the feedback pin is connected correctly and that the output capacitor is suitable for the application.
