Part Details for CAT4137TD-GT3 by onsemi
Results Overview of CAT4137TD-GT3 by onsemi
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (2 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
CAT4137TD-GT3 Information
CAT4137TD-GT3 by onsemi is a Display Driver.
Display Drivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for CAT4137TD-GT3
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
81Y5912
|
Newark | Led Driver, Boost, 1Mhz, Tsot-23-5, Device Topology:Boost (Step Up), Input Voltage Min:2.2V, Input Voltage Max:5.5V, Output Voltage Max:24V, Output Current Max:30Ma, Switching Frequency:1Mhz, No. Of Outputs:1Outputs, Ic Mounting:Smd, rohs Compliant: Yes |Onsemi CAT4137TD-GT3 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 0 |
|
Buy Now | |
|
DISTI #
06R1000
|
Newark | Led Dr Boost 5 Led Series/Reel Rohs Compliant: Yes |Onsemi CAT4137TD-GT3 RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
Buy Now | |
|
|
Chip Stock | LedDriver5Segment5-PINTSOT-23T/r/ICLedDriverRgltrDimTSOT23-5 | 22090 |
|
RFQ | |
|
|
Win Source Electronics | LED Driver 5 Segment 5-Pin TSOT-23 T/R / IC LED DRIVER RGLTR DIM TSOT23-5 | 11499 |
|
$2.7857 / $4.1785 | Buy Now |
US Tariff Estimator: CAT4137TD-GT3 by onsemi
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for CAT4137TD-GT3
CAT4137TD-GT3 CAD Models
-

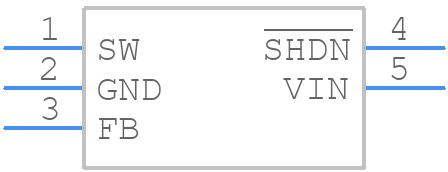

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
CAT4137TD-GT3 Part Data Attributes
|
|
CAT4137TD-GT3
onsemi
Buy Now
Datasheet
|
Compare Parts:
CAT4137TD-GT3
onsemi
White LED Driver, CMOS Boost Converter, TSOT-23. 5 Lead, 3000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Part Package Code | TSOT-23. 5 Lead | |
| Package Description | Sot-23, 5 Pin | |
| Pin Count | 5 | |
| Manufacturer Package Code | 419AE | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 63 Weeks | |
| Interface IC Type | Led Display Driver | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e4 | |
| Length | 2.9 Mm | |
| Moisture Sensitivity Level | 1 | |
| Multiplexed Display Capability | No | |
| Number of Functions | 1 | |
| Number of Segments | 3 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | VSSOP | |
| Package Equivalence Code | TSOP5/6,.11,37 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Very Thin Profile, Shrink Pitch | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1 Mm | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 2.2 V | |
| Supply Voltage-Nom | 3.6 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Industrial | |
| Terminal Finish | Nickel Palladium Gold | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.95 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.6 Mm |
Alternate Parts for CAT4137TD-GT3
This table gives cross-reference parts and alternative options found for CAT4137TD-GT3. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CAT4137TD-GT3, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| CAT4137TS | onsemi | Check for Price | LED DISPLAY DRIVER, PDSO5, 1 MM HEIGHT, SOT-23, 5 PIN | CAT4137TD-GT3 vs CAT4137TS |
| CAT4137TS | Catalyst Semiconductor | Check for Price | LED Driver, CMOS, PDSO5, 1 MM HEIGHT, SOT-23, 5 PIN | CAT4137TD-GT3 vs CAT4137TS |
CAT4137TD-GT3 Frequently Asked Questions (FAQ)
-
The recommended operating voltage range for the CAT4137TD-GT3 is 2.7V to 5.5V.
-
To ensure stability, a minimum of 10uF capacitor should be connected between the VIN pin and GND, and the output capacitor should be at least 4.7uF with an ESR of 0.1 ohm or less.
-
The maximum output current of the CAT4137TD-GT3 is 1A.
-
The output voltage of the CAT4137TD-GT3 can be adjusted by connecting a resistor divider network between the VOUT pin and GND, with the center tap connected to the FB pin.
-
The thermal shutdown temperature of the CAT4137TD-GT3 is typically 150°C.
