CB101 Information
CB101 by XP Power is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for CB101
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
84Y5684
|
Newark | Dc-Dc Converter, 1 O/P, 10Kv, 100Ua, |Xp Power CB101 RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 10 |
|
$616.8400 | Buy Now |
|
DISTI #
209-CB101
|
Mouser Electronics | DC/DC Converters - Through Hole SINGLE O/P, DC-HV DC PCB MOUNT, 1W,+10kV | 3 |
|
$596.3700 / $614.8100 | Buy Now |
|
DISTI #
71928389
|
RS | DC-DC CONVERTER, THRU HOLE, DIP, 1W, -10000V@100A, 11.5-16V IN, CB SERIES Min Qty: 1 Package Multiple: 1 Lead time: 14 Weeks, 0 Days Container: Bulk | 0 |
|
$614.8100 | RFQ |
CB101 CAD Models
-

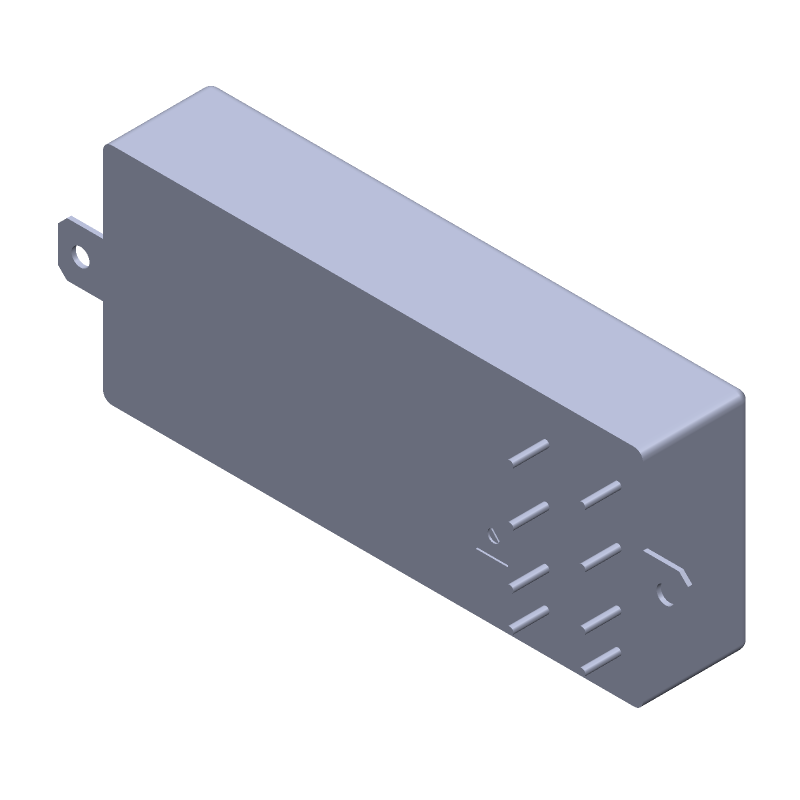

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
CB101 Part Data Attributes
|
|
CB101
XP Power
Buy Now
Datasheet
|
Compare Parts:
CB101
XP Power
DC-DC Regulated Power Supply Module, 1 Output, 1W, Hybrid
|
| Part Life Cycle Code | Active | |
| Package Description | Package-8 | |
| ECCN Code | EAR99 | |
| Date Of Intro | 2020-03-30 | |
| Analog IC - Other Type | Dc-Dc Regulated Power Supply Module | |
| Input Voltage-Max | 16 V | |
| Input Voltage-Min | 11.5 V | |
| Input Voltage-Nom | 12 V | |
| JESD-30 Code | R-XDMA-P8 | |
| Length | 82.55 Mm | |
| Line Regulation-Max | 0.1% | |
| Load Regulation-Max | 0.1% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 60 °C | |
| Operating Temperature-Min | -10 °C | |
| Output Current-Max | 0.0001 A | |
| Output Voltage-Max | 10100 V | |
| Output Voltage-Min | 9900 V | |
| Output Voltage-Nom | 10000 V | |
| Package Body Material | Unspecified | |
| Package Code | DMA | |
| Package Equivalence Code | MODULE,8LEAD,.4 | |
| Package Shape | Rectangular | |
| Package Style | Microelectronic Assembly | |
| Protections | Over Voltage | |
| Ripple Voltage (Main Out) | 3.535 Vrms | |
| Seated Height-Max | 15.71 Mm | |
| Surface Mount | No | |
| Technology | Hybrid | |
| Terminal Form | Pin/Peg | |
| Terminal Pitch | 7.62 Mm | |
| Terminal Position | Unspecified | |
| Total Power Output-Max | 1 W | |
| Trim/Adjustable Output | Yes | |
| Width | 31.8 Mm |
CB101 Frequently Asked Questions (FAQ)
-
The maximum capacitive load for the CB101 is 10uF. Exceeding this value may cause instability or oscillation.
-
While the CB101 has a rated operating temperature range of -40°C to +85°C, it's recommended to derate the output power by 2.5% per °C above 60°C to ensure reliable operation.
-
The CB101 meets various safety certifications, including UL60950-1, EN60950-1, and IEC60950-1. However, it's essential to review the specific certification requirements for your application and ensure the CB101 meets those standards.
-
The recommended input fuse value for the CB101 is 1A to 5A, depending on the specific model and input voltage. Consult the datasheet or contact XP Power for specific guidance.
-
Yes, you can parallel multiple CB101 units for higher power, but it's crucial to ensure that the units are identical, and the output voltages are matched. Additionally, a master-slave configuration is recommended to prevent oscillation.
