Part Details for CD40106BM96G4 by Texas Instruments
Results Overview of CD40106BM96G4 by Texas Instruments
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (1 replacement)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (8 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
CD40106BM96G4 Information
CD40106BM96G4 by Texas Instruments is a Gate.
Gates are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for CD40106BM96G4
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Chip Stock | 6-ch,3-Vto18-VinverterswithSchmitt-Triggerinputs14-SOIC-55to125 | 123770 |
|
RFQ | |
|
|
Win Source Electronics | IC INVERTER GATE HEX 14SOIC | 111270 |
|
$0.1635 / $0.2113 | Buy Now |
US Tariff Estimator: CD40106BM96G4 by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for CD40106BM96G4
CD40106BM96G4 CAD Models
-

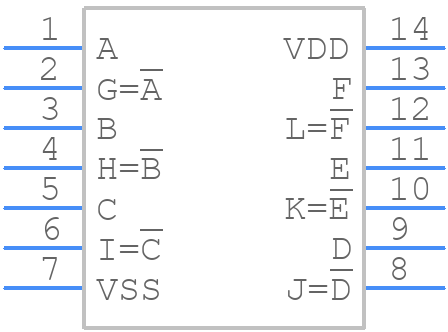

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
CD40106BM96G4 Part Data Attributes
|
|
CD40106BM96G4
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
CD40106BM96G4
Texas Instruments
6-ch, 3-V to 18-V inverters with Schmitt-Trigger inputs 14-SOIC -55 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SOIC | |
| Package Description | Sop, Sop14,.25 | |
| Pin Count | 14 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Family | 4000/14000/40000 | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e4 | |
| Length | 8.65 Mm | |
| Load Capacitance (CL) | 50 Pf | |
| Logic IC Type | Inverter | |
| Max I(ol) | 0.0024 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 6 | |
| Number of Inputs | 1 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Equivalence Code | SOP14,.25 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Packing Method | Tr | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 0.12 Ma | |
| Prop. Delay@Nom-Sup | 280 Ns | |
| Propagation Delay (tpd) | 280 Ns | |
| Qualification Status | Not Qualified | |
| Schmitt Trigger | Yes | |
| Seated Height-Max | 1.75 Mm | |
| Supply Voltage-Max (Vsup) | 18 V | |
| Supply Voltage-Min (Vsup) | 3 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Military | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 Mm |
Alternate Parts for CD40106BM96G4
This table gives cross-reference parts and alternative options found for CD40106BM96G4. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CD40106BM96G4, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| CD40106BMTG4 | Texas Instruments | Check for Price | CMOS Hex Schmitt Triggers 14-SOIC -55 to 125 | CD40106BM96G4 vs CD40106BMTG4 |
CD40106BM96G4 Frequently Asked Questions (FAQ)
-
The recommended operating voltage range for the CD40106BM96G4 is 4.5V to 15V.
-
To ensure the CD40106BM96G4 is properly powered, connect the VCC pin to a stable voltage source, and decouple the power supply with a 0.1uF capacitor to reduce noise and ensure reliable operation.
-
The maximum frequency of operation for the CD40106BM96G4 is 10MHz.
-
Treat the input pins as inputs and do not drive them as outputs. Also, ensure that the output pins are not overloaded, and use a buffer or a driver if the output current exceeds the recommended maximum.
-
The thermal impedance of the CD40106BM96G4 is 30°C/W (junction-to-ambient) and 10°C/W (junction-to-case).
