Part Details for CD54HC4316F3A by Texas Instruments
Results Overview of CD54HC4316F3A by Texas Instruments
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (10 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Aerospace and Defense
Communication and Networking
CD54HC4316F3A Information
CD54HC4316F3A by Texas Instruments is a Multiplexer or Switch.
Multiplexers or Switches are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| CD54HC4316F3A | Texas Instruments | High Speed CMOS Logic Quad Analog Switch with Level Translation 16-CDIP -55 to 125 |
Price & Stock for CD54HC4316F3A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Vyrian | SPST, 4 Func, 4 Channel, CMOS, CDIP16 | 5291 |
|
RFQ |
US Tariff Estimator: CD54HC4316F3A by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
CD54HC4316F3A CAD Models
-

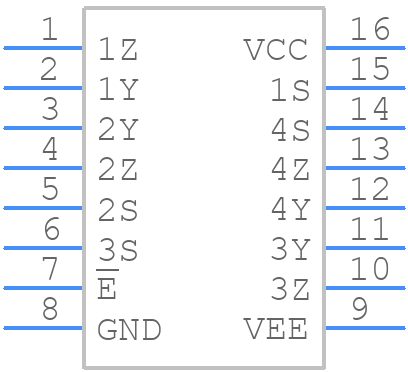

Part Symbol
-

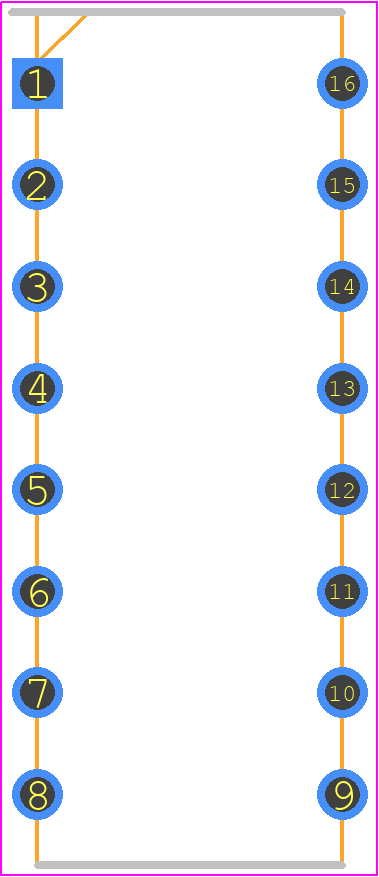

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
CD54HC4316F3A Part Data Attributes
|
|
CD54HC4316F3A
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
CD54HC4316F3A
Texas Instruments
SPST, 4 Func, 4 Channel, CMOS, CDIP16
|
| Pbfree Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | DIP | |
| Pin Count | 16 | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.90 | |
| Additional Feature | Also Operates With 2v To 10v (Vcc-Vee) Supply | |
| Analog IC - Other Type | Spst | |
| Bandwidth-Nom | 200 Mhz | |
| Input Voltage-Max | 6 V | |
| Input Voltage-Min | ||
| JESD-30 Code | R-GDIP-T16 | |
| JESD-609 Code | e0 | |
| Length | 19.05 Mm | |
| Neg Supply Voltage-Max (Vsup) | -5 V | |
| Neg Supply Voltage-Min (Vsup) | -1 V | |
| Neg Supply Voltage-Nom (Vsup) | -4.5 V | |
| Normal Position | No | |
| Number of Channels | 4 | |
| Number of Functions | 4 | |
| Number of Terminals | 16 | |
| Off-state Isolation-Nom | 62 Db | |
| On-state Resistance Match-Nom | 5 Ω | |
| On-state Resistance-Max (Ron) | 170 Ω | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Output | Separate Output | |
| Package Body Material | Ceramic, Glass-Sealed | |
| Package Code | DIP | |
| Package Equivalence Code | DIP16,.3 | |
| Package Shape | Rectangular | |
| Package Style | In-Line | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 5.08 Mm | |
| Signal Current-Max | 0.025 A | |
| Supply Current-Max (Isup) | 0.32 Ma | |
| Supply Voltage-Max (Vsup) | 4 V | |
| Supply Voltage-Min (Vsup) | 1 V | |
| Supply Voltage-Nom (Vsup) | 4.5 V | |
| Surface Mount | No | |
| Switch-off Time-Max | 34 Ns | |
| Switch-on Time-Max | 34 Ns | |
| Switching | Break-Before-Make | |
| Technology | Cmos | |
| Temperature Grade | Military | |
| Terminal Finish | Tin/Lead (Sn/Pb) | |
| Terminal Form | Through-Hole | |
| Terminal Pitch | 2.54 Mm | |
| Terminal Position | Dual | |
| Width | 7.62 Mm |
Alternate Parts for CD54HC4316F3A
This table gives cross-reference parts and alternative options found for CD54HC4316F3A. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CD54HC4316F3A, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
CD54HC4316F3A Frequently Asked Questions (FAQ)
-
The recommended operating voltage range for CD54HC4316F3A is 2V to 6V, with a typical voltage of 5V.
-
The input voltage thresholds for the CD54HC4316F3A are typically 0.5V to 1.5V for low input and 3.5V to 5V for high input. Ensure that your input signals meet these thresholds to ensure proper operation.
-
The maximum clock frequency supported by the CD54HC4316F3A is 25 MHz.
-
To ensure proper power sequencing, apply power to the VCC pin before applying any input signals. Also, ensure that the power supply is stable and within the recommended operating voltage range.
-
The typical propagation delay for the CD54HC4316F3A is around 10ns to 15ns, depending on the operating voltage and temperature.
