| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| CDCS503PW | Texas Instruments | Check for Price | PLL Based Clock Driver, 503 Series, 1 True Output(s), 0 Inverted Output(s), PDSO8 | CDCS503PWR vs CDCS503PW |
Part Details for CDCS503PWR by Texas Instruments
Results Overview of CDCS503PWR by Texas Instruments
- Distributor Offerings: (13 listings)
- Number of FFF Equivalents: (1 replacement)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (1 option)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
CDCS503PWR Information
CDCS503PWR by Texas Instruments is a Clock Driver.
Clock Drivers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for CDCS503PWR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-24295-2-ND
|
DigiKey | IC CLK BUFFER 1:1 108MHZ 8TSSOP Min Qty: 2000 Container: Tape & Reel |
2445 Tape & Reel |
|
$0.9099 / $0.9550 | Buy Now |
|
DISTI #
296-24295-6-ND
|
DigiKey | IC CLK BUFFER 1:1 108MHZ 8TSSOP Min Qty: 1 Container: Digi-Reel |
2445 Digi-Reel® |
|
$1.0022 / $1.8800 | Buy Now |
|
DISTI #
296-24295-1-ND
|
DigiKey | IC CLK BUFFER 1:1 108MHZ 8TSSOP Min Qty: 1 Container: Cut Tape |
2445 Cut Tape |
|
$1.0022 / $1.8800 | Buy Now |
|
DISTI #
93746059
|
Verical | Clock Generator 8MHz to 32MHz-IN 108MHz-OUT 8-Pin TSSOP T/R RoHS: Compliant Min Qty: 271 Package Multiple: 1 Date Code: 1101 | Americas - 288 |
|
$0.8603 / $1.3875 | Buy Now |
|
DISTI #
595-CDCS503PWR
|
Mouser Electronics | Clock Buffer Clock Buffer/Clock M ultiplier A 595-CDC A 595-CDCS503PW RoHS: Compliant | 2342 |
|
$0.9190 / $1.8700 | Buy Now |
|
DISTI #
V72:2272_07248451
|
Arrow Electronics | Clock Generator 8MHz to 32MHz-IN 108MHz-OUT 8-Pin TSSOP T/R COO: Malaysia RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 26 Weeks Date Code: 1601 Container: Cut Strips | Americas - 1 |
|
$0.2860 | Buy Now |
|
|
Rochester Electronics | Clock Buffer 1:1 108MHz 8-SOP T/R RoHS: Compliant Status: Active Min Qty: 1 | 288 |
|
$0.6882 / $1.1100 | Buy Now |
|
DISTI #
V72:2272_07248451
|
Arrow Electronics | Clock Generator 8MHz to 32MHz-IN 108MHz-OUT 8-Pin TSSOP T/R COO: Malaysia RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 26 Weeks Date Code: 1601 Container: Cut Strips | Americas - 1 |
|
$0.2860 | Buy Now |
|
DISTI #
93746059
|
Verical | Clock Generator 8MHz to 32MHz-IN 108MHz-OUT 8-Pin TSSOP T/R RoHS: Compliant Min Qty: 271 Package Multiple: 1 Date Code: 1101 | Americas - 288 |
|
$0.8603 / $1.3875 | Buy Now |
|
DISTI #
93746059
|
Verical | Clock Generator 8MHz to 32MHz-IN 108MHz-OUT 8-Pin TSSOP T/R RoHS: Compliant Min Qty: 271 Package Multiple: 1 Date Code: 1101 | Americas - 288 |
|
$0.8603 / $1.3875 | Buy Now |
US Tariff Estimator: CDCS503PWR by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

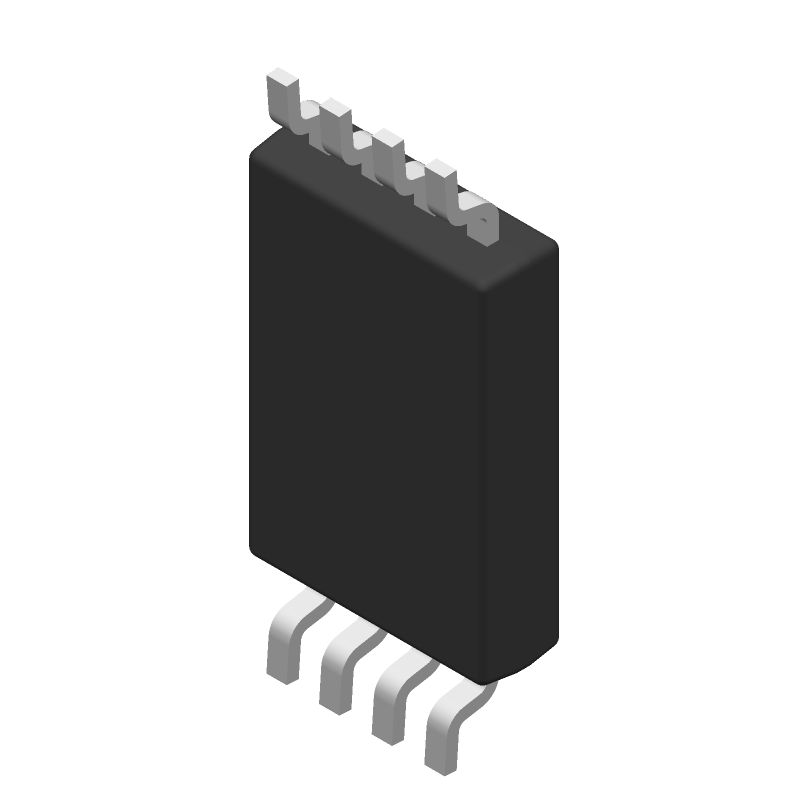

CDCS503PWR CAD Models
-
Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
CDCS503PWR Part Data Attributes
|
|
CDCS503PWR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
CDCS503PWR
Texas Instruments
PLL Based Clock Driver, 503 Series, 1 True Output(s), 0 Inverted Output(s), PDSO8
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SOIC | |
| Package Description | Tssop-8 | |
| Pin Count | 8 | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.90 | |
| Family | 503 | |
| Input Conditioning | Standard | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 4.4 Mm | |
| Logic IC Type | Pll Based Clock Driver | |
| Max I(ol) | 0.012 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Inverted Outputs | ||
| Number of Terminals | 8 | |
| Number of True Outputs | 1 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Characteristics | 3-State | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | TSSOP | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Thin Profile, Shrink Pitch | |
| Packing Method | Tr | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.2 Mm | |
| Supply Voltage-Max (Vsup) | 3.6 V | |
| Supply Voltage-Min (Vsup) | 3 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Industrial | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.65 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 Mm | |
| fmax-Min | 108 Mhz |
Alternate Parts for CDCS503PWR
This table gives cross-reference parts and alternative options found for CDCS503PWR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CDCS503PWR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
CDCS503PWR Frequently Asked Questions (FAQ)
-
A good PCB layout for CDCS503PWR involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing decoupling capacitors close to the device. TI provides a recommended layout in the datasheet and application notes.
-
Ensure a stable power supply, use a low-ESR capacitor (e.g., 10uF) close to the device, and add a 1uF capacitor between VCC and GND. Also, use a 0.1uF capacitor between VCC and AVCC for analog power supply decoupling.
-
The CDCS503PWR supports clock frequencies up to 100 MHz, but the actual frequency limit depends on the specific application, PCB layout, and signal integrity.
-
The CDCS503PWR can be configured for differential or single-ended input modes by setting the appropriate pins (e.g., DIFF/SE, INMODE) and using the correct input termination resistors. Refer to the datasheet and application notes for specific configuration details.
-
The typical power consumption of CDCS503PWR is around 150mW at 3.3V supply voltage, but this can vary depending on the specific application, clock frequency, and output loading.
