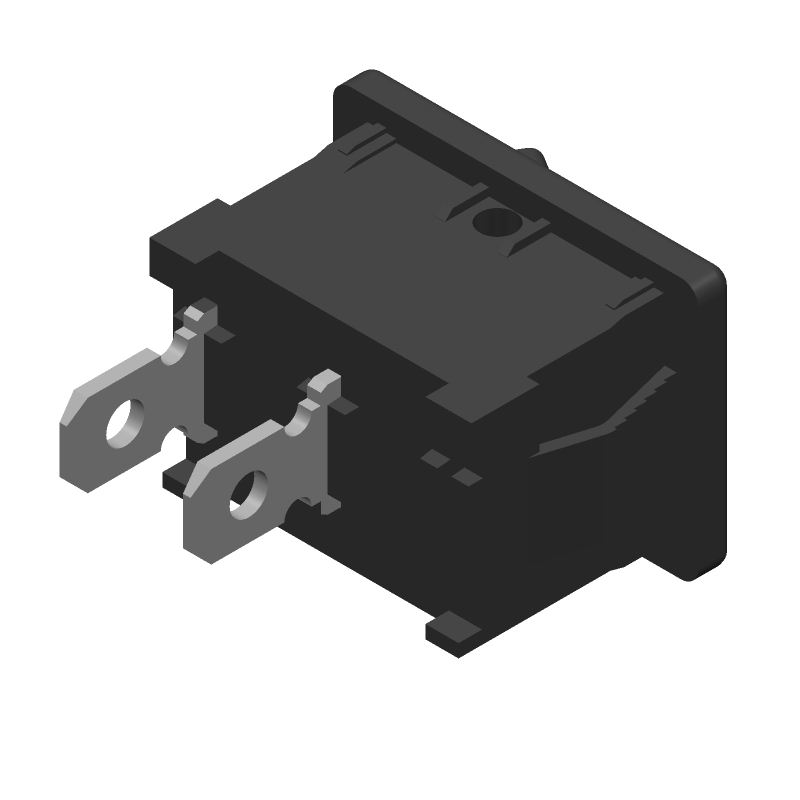

DA102J12S215PQF by:
C&K Switches

ROCKER SWITCH, SPST, LATCHED, PANEL MOUNT, ROHS COMPLIANT

Part Details for DA102J12S215PQF by C&K Switches

Results Overview of DA102J12S215PQF by C&K Switches

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Internet of Things (IoT) Computing and Data Storage Aerospace and Defense Healthcare Telecommunications Automotive

DA102J12S215PQF Information

DA102J12S215PQF by C&K Switches is a Rocker Switch.
Rocker Switches are under the broader part category of Switches.

Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.

Price & Stock for DA102J12S215PQF

Part # Distributor Description Stock Price Buy
DISTI # 34AH8119
Newark Rocker Switch, Spst, 16A, 125Vac, Black, Switch Operation:On-None-Off, Contact Configuration:Spst, Illumination:Non Illuminated, Switch Mounting:Panel Mount, Actuator/Cap Colour:Black, Product Range:Da Series, Contact Voltage Vdc:-Rohs Compliant: Yes |C&k Components DA102J12S215PQF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 28
  • 1 $2.7500
  • 10 $2.4100
$2.4100 / $2.7500 Buy Now
DISTI # 401-1288-ND
DigiKey SWITCH ROCKER SPST 16A 125V Min Qty: 1 Lead time: 13 Weeks Container: Tray 4282
In Stock
  • 1 $2.4500
  • 10 $2.1130
  • 25 $1.9928
  • 50 $1.9062
  • 100 $1.8234
  • 400 $1.6681
  • 800 $1.5953
  • 1,200 $1.5541
$1.5541 / $2.4500 Buy Now
DISTI # 611-DA102J12S215PQF
Mouser Electronics Rocker Switches SPST 16A ON-OFF BLK RoHS: Compliant 435
  • 1 $2.2800
  • 10 $2.0100
  • 25 $1.9600
  • 50 $1.8600
  • 100 $1.5200
  • 250 $1.5100
  • 400 $1.4200
$1.4200 / $2.2800 Buy Now
DISTI # 70128123
RS SWITCH, ROCKER, SPST, ON-NONE-OFF, BLK ROCKER ACTUATOR, O/- LEGEND,16A,125VAC.187 QC Min Qty: 1 Package Multiple: 1 Lead time: 11 Weeks, 0 Days Container: Bulk 488
  • 1 $2.2200
  • 5 $1.9900
  • 10 $1.9100
$1.9100 / $2.2200 Buy Now
Future Electronics DA Series 16 A Mini SPST On-None-Off Quick Connect Power Rocker Switch RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Lead time: 13 Weeks Container: Box 380
Box
  • 1 $1.2900
  • 25 $1.2700
  • 75 $1.2500
  • 150 $1.2400
  • 400 $1.2100
$1.2100 / $1.2900 Buy Now
Future Electronics DA Series 16 A Mini SPST On-None-Off Quick Connect Power Rocker Switch RoHS: Compliant pbFree: Yes Min Qty: 1000 Package Multiple: 100 Lead time: 13 Weeks Container: Box 0
Box
  • 100 $1.2500
  • 200 $1.2400
  • 300 $1.2300
  • 500 $1.2100
$1.2100 / $1.2500 Buy Now
Future Electronics   RoHS: Compliant pbFree: Yes Min Qty: 55 Package Multiple: 1 0
  • 55 $1.3800
  • 100 $1.3700
  • 150 $1.3600
  • 300 $1.3500
  • 500 $1.3200
$1.3200 / $1.3800 Buy Now
Bristol Electronics   4
RFQ
DISTI # DA102J12S215PQF
TTI Rocker Switches SPST 16A ON-OFF BLK RoHS: Compliant Min Qty: 100 Package Multiple: 100 Container: Bulk Americas - 1900
In Stock
  • 100 $1.4200
  • 200 $1.4000
  • 400 $1.2600
  • 500 $1.2400
$1.2400 / $1.4200 Buy Now
DISTI # DA102J12S215PQF
TME ROCKER, SPST, Pos: 2, ON-OFF, 16A/125VAC, black, none, 100MΩ Min Qty: 1000 0
  • 1,000 $1.5000
$1.5000 RFQ
DISTI # 000000000001083978
Sager Rocker Switches SPST 16A ON-OFF BLK Min Qty: 1 0
  • 1 $1.6000
  • 101 $1.4100
  • 253 $1.3900
  • 506 $1.3200
  • 1,011 $1.2800
  • 2,022 $1.2400
$1.2400 / $1.6000 Buy Now
New Advantage Corporation   RoHS: Compliant Min Qty: 1 Package Multiple: 100 200
  • 100 $2.1500
  • 200 $1.9800
$1.9800 / $2.1500 Buy Now

US Tariff Estimator: DA102J12S215PQF by C&K Switches

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

DA102J12S215PQF
C&K Switches
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for DA102J12S215PQF

DA102J12S215PQF Part Data Attributes

Parametric Data
DA102J12S215PQF C&K Switches
Buy Now Datasheet
Compare Parts:
DA102J12S215PQF C&K Switches ROCKER SWITCH, SPST, LATCHED, PANEL MOUNT, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Package Description Rohs Compliant
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8536.50.90.65
Actuator Color Black
Actuator Finish Matte
Actuator Material Nylon
Actuator Type Rocker
Body Breadth 13 Mm
Body Height 11.8 Mm
Body Length or Diameter 21 Mm
Center Contact Material Copper Alloy
Center Contact Plating Silver
Contact (AC) Max Power Rating R Load 0.5hp@250vac
Contact (AC) Max Rating R Load 16a@125vac
Contact Current(AC)-Max 16 A
Contact Function On-Off
Contact Voltage(AC)-Max 125 V
Dielectric Withstand Volts 1500vrms V
Electrical Life 10000 Cycle(S)
End Contact Plating Silver
Housing Material Nylon
Insulation Resistance 100000000 Ω
JESD-609 Code e4
Mounting Feature Panel Mount
Operating Temperature-Max 85 °C
Operating Temperature-Min -20 °C
Sealing Ip65
Surface Mount No
Switch Action Momentary
Switch Function Spst
Switch Type Rocker Switch
Terminal Finish Silver
Terminal Material Copper Alloy
Termination Type Quick Connect
equivalents icon

DA102J12S215PQF Related Parts

DA102J12S215PQF Frequently Asked Questions (FAQ)

  • C&K recommends using a soft, dry brush or a lint-free cloth to gently remove any debris or contaminants from the switch. Avoid using chemicals, solvents, or liquids, as they may damage the switch's electrical contacts or compromise its performance.

  • While the DA102J12S215PQF switch is rated for operation up to 85°C, it's essential to consider the specific application's temperature profile and potential thermal stresses. Consult with C&K's application engineers to determine the switch's suitability for your specific high-temperature application.

  • C&K's DA102J12S215PQF switch is designed to meet general EMI/EMC requirements, but specific application requirements may vary. Consult with C&K's application engineers to discuss your specific EMI/EMC needs and determine the necessary design considerations or customizations.

  • C&K provides recommended PCB layout and land pattern guidelines in their documentation. Ensure that your PCB design follows these guidelines to ensure proper switch operation and minimize the risk of electrical or mechanical issues.

  • While the DA102J12S215PQF switch is not rated for IP67 or higher ingress protection, C&K offers other switch products that meet these requirements. Consult with C&K's application engineers to determine the best switch solution for your specific application.
