DAC7611U Information
DAC7611U by Texas Instruments is a Digital to Analog Converter.
Digital to Analog Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for DAC7611U
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | Min Qty: 1 | 10 |
|
$5.0400 / $10.0800 | Buy Now |
|
|
Rochester Electronics | D/A Converter, 1 Func, Serial Input Loading, 10us Settling Time, PDSO8 RoHS: Compliant Status: Active Min Qty: 1 | 51 |
|
$7.5900 / $9.4900 | Buy Now |
|
DISTI #
DAC7611U
|
TME | IC: D/A converter, 12bit, 132ksps, Ch: 1, SO8, 4.75÷5.25VDC Min Qty: 1 | 93 |
|
$9.6200 / $12.1600 | Buy Now |
|
|
Chip Stock | ICDAC12BITV-OUT8SOIC12BitDigitaltoAnalogConverter18-SOIC | 7100 |
|
RFQ | |
|
|
Win Source Electronics | IC 12-BIT SERIAL G.P. D/A 8-SOIC | 7234 |
|
$3.6000 / $4.6500 | Buy Now |
US Tariff Estimator: DAC7611U by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for DAC7611U
DAC7611U CAD Models
-

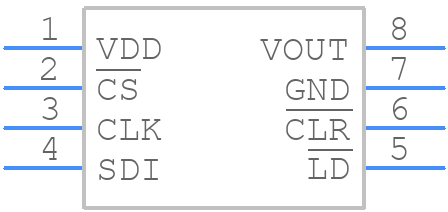

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
DAC7611U Part Data Attributes
|
|
DAC7611U
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
DAC7611U
Texas Instruments
12-Bit Serial Input Digital-To-Analog Converter 8-SOIC -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SOIC | |
| Package Description | Sop, Sop8,.25 | |
| Pin Count | 8 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.40 | |
| Analog Output Voltage-Max | 4.111 V | |
| Analog Output Voltage-Min | 4.079 V | |
| Converter Type | D/A Converter | |
| Input Bit Code | BINARY | |
| Input Format | Serial | |
| JESD-30 Code | R-PDSO-G8 | |
| Length | 4.9 Mm | |
| Linearity Error-Max (EL) | 0.0488% | |
| Moisture Sensitivity Level | 3 | |
| Number of Bits | 12 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Sample Rate | 0.132 Mhz | |
| Seated Height-Max | 1.75 Mm | |
| Settling Time-Max | 10 µS | |
| Settling Time-Nom (tstl) | 10 µS | |
| Supply Current-Max | 1 Ma | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | Yes | |
| Technology | Bicmos | |
| Temperature Grade | Industrial | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 Mm |
