DCP022405U by Texas Instruments is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for DCP022405U
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-12367-5-ND
|
DigiKey | DC DC CONVERTER 5V 2W Min Qty: 1 Lead time: 18 Weeks Container: Tube |
409 In Stock |
|
$17.3450 / $20.0900 | Buy Now |
|
DISTI #
595-DCP022405U
|
Mouser Electronics | DC/DC Converters - SMD Mini 2W Iso Unreg DC /DC Converter RoHS: Compliant | 194 |
|
$17.6900 / $20.1500 | Buy Now |
|
|
Chip Stock | DCDCCONVERTER5V2WIsolatedModuleDCDCConverter1Output5V400mA21.6V-26.4VInput | 139 |
|
RFQ | |
|
|
LCSC | SOP-28-300mil DC DC Converters RoHS | 3 |
|
$24.0776 / $24.8747 | Buy Now |
US Tariff Estimator: DCP022405U by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for DCP022405U
DCP022405U CAD Models
-

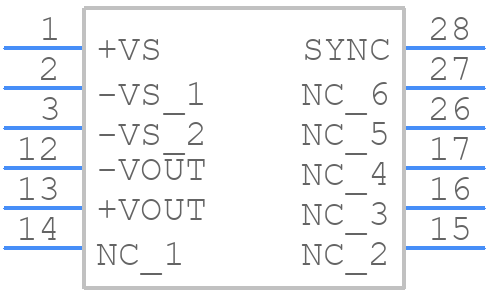

Part Symbol
-

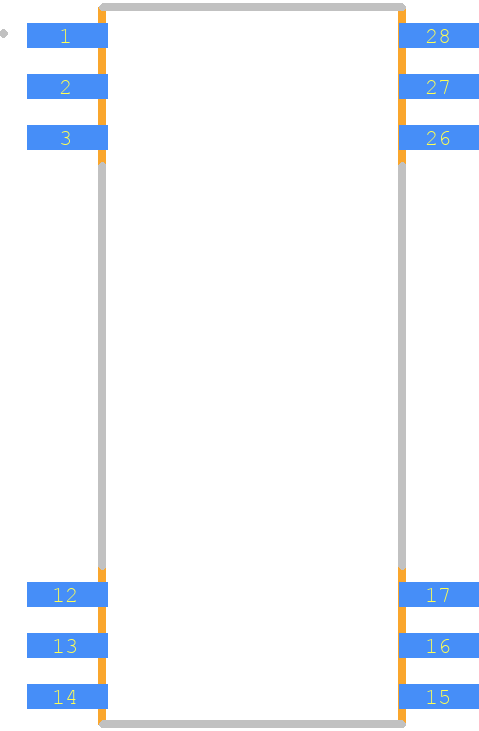

Footprint
-
