DR1040-150-R Information

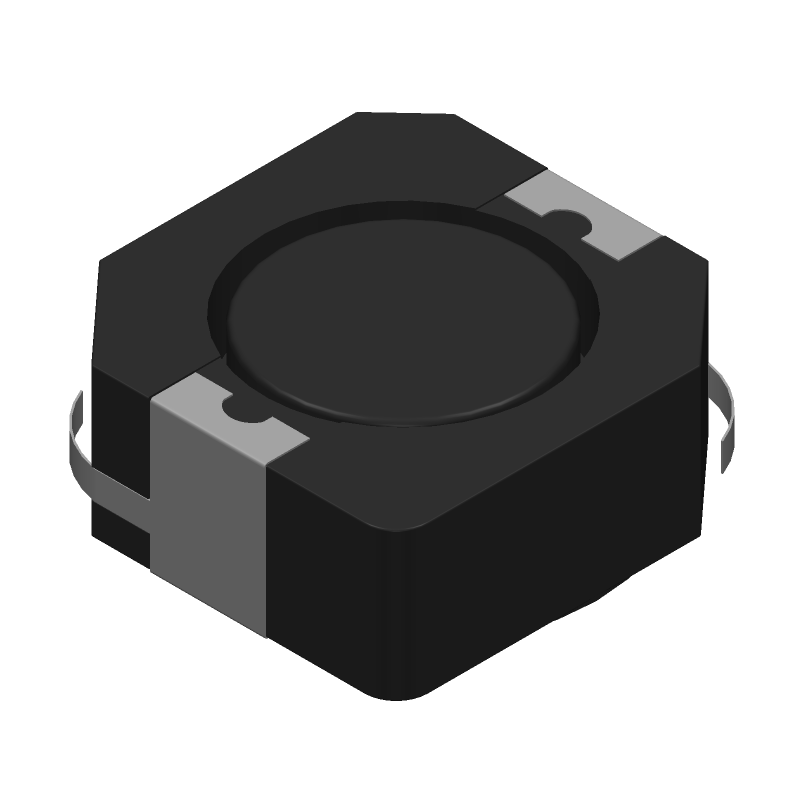

DR1040-150-R by Eaton Electronics is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.
Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.
Price & Stock for DR1040-150-R
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
70037962
|
RS | INDUCTOR, POWER SHIELDED DRUM CORE INDUCTOR, 15UH, 3.6A Min Qty: 850 Package Multiple: 1 Lead time: 12 Weeks, 0 Days Container: Bulk | 0 |
|
$2.3800 / $2.7100 | RFQ |
|
DISTI #
DR1040-150-R
|
TME | Inductor: wire, SMD, 14.9uH, Ioper: 3.1A, R: 37mΩ, ±30%, Isat: 3.6A Min Qty: 850 | 0 |
|
$0.4850 | RFQ |
US Tariff Estimator: DR1040-150-R by Eaton Electronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
DR1040-150-R CAD Models
-
Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
DR1040-150-R Part Data Attributes
DR1040-150-R Frequently Asked Questions (FAQ)
-
The recommended PCB land pattern for the DR1040-150-R can be found in the Coiltronics application note AN-001, which provides detailed guidelines for PCB layout and footprint design.
-
While the datasheet specifies an operating temperature range of -40°C to +125°C, Coiltronics recommends derating the inductor's current rating by 1.5% for every degree above 80°C to ensure reliable operation in high-temperature environments.
-
Yes, the DR1040-150-R is designed to handle high-frequency switching applications up to 1 MHz. However, it's essential to consider the inductor's self-resonant frequency (SRF) and ensure that the switching frequency is below the SRF to avoid potential resonance issues.
-
Coiltronics recommends storing the DR1040-150-R in a dry, cool place, away from direct sunlight and moisture. Handling should be done with electrostatic discharge (ESD) precautions, such as using ESD-safe gloves and wrist straps, to prevent damage to the component.
-
While the DR1040-150-R meets the requirements for many industrial and commercial applications, it is not specifically designed for automotive applications. For automotive use, Coiltronics recommends using their AEC-Q200 qualified inductors, such as the DR1040-150-R-AEC, which meet the stringent requirements of the automotive industry.
